WPX0 LED 360 Spin
WPX0 LED Wall Pack Luminaire Product Feature Video
WPX Install

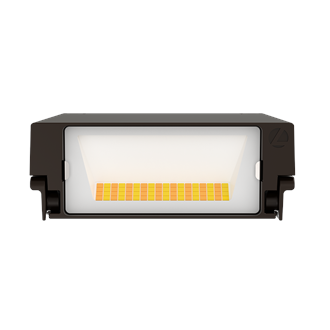

WPX0 LED Wall Mount

Size 0 - 850 to 1,650 lumens

By Lithonia Lighting

    DLC PremiumSwitchable CCTs
  • Overview
  • Specifications
WPX Wall Mount Luminaires are cost-effective and energy-efficient making them ideal for HID replacement and budget-constrained new construction projects.

The WPX family has four sizes with lumen packages of 850 to 9,200 lumens creating a solution that meets the needs of over-the-door lighting to 400W metal halide replacement at mounting heights of up to 20 feet. The simple geometric shape of the WPX luminaires allows them to blend with any architecture while the footprint covers the stain left by the fixture it replaces. The WPX features a wide light distribution that creates safe, continuous illumination of the perimeter of the building. Low initial cost, high energy savings, and DLC Premium listing enable fast paybacks, typically less than two years.

The WPX0 full cut-off wall pack is an excellent above the door lighting solution. Reliable IP66 construction and excellent LED lumen maintenance ensure a long service life. Standard features such as Adjustable Lumen Output (ALO), color switching and switchable photocell make WPX0 ideal for any application.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 850 LM, 900 LM, 950 LM, 1000 LM, 1100 LM, 1200 LM, 1300 LM, 1400 LM, 1500 LM, 1600 LM, 1700 LM
CCT / LED Color Variable
CRI 70
Product Type Wallpack
Compliance Listing DLC Premium, DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Voltage Rating 120-277
Color Bronze
Mounting Type Surface
Series WPX0
Days To Ship 2 or Less

Read More Read Less
