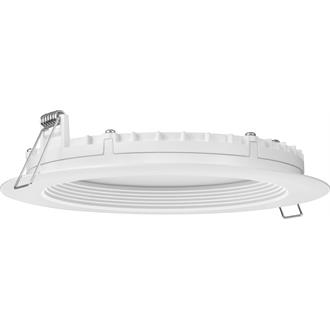

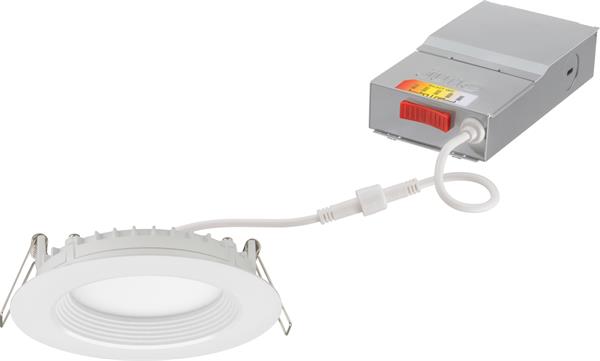

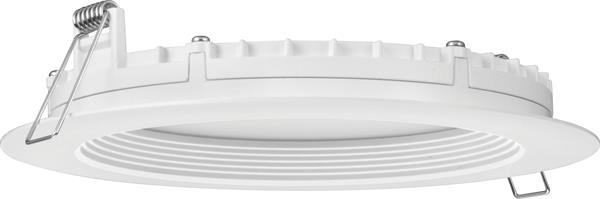

Contractor Select Switchable White Regressed Wafer Canless Downlight

5CCT Switchable (2700K-3000K-3500K-4000K-5000K) - 4" & 6" Regressed Wafer LED Downlight

By Juno

    Switchable CCTsEnergy Star®CA Title 24/JA8
  • Overview
  • Specifications
The 4-inch and 6-inch Wafer LED Regressed Baffle Downlights with Switchable White features a switch for five easy color temperature adjustments – while eliminating the need for recessed housings. For enhanced glare control, the Regressed Baffle option provides a ½” regression which reduces glare and shadows at the ceiling plane. The crisp baffle lines softens the light output delivering comfortable light in the space. The innovative slim design allows for easy, remodel or new construction installation from below the ceiling and areas with shallow plenums. They are wet location listed, making them ideal for use in a breadth of indoor and outdoor residential, hospitality, light commercial and multifamily applications.
Read More
Read Less
Size 4 IN, 6 IN
Shape Round
Light Source LED - Dynamic
Dynamic Feature Switchable White
Lumens 670 LM, 950 LM
CCT / LED Color Variable
CRI 90
Product Type Downlight
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Air Loc, IC, Wet Location
Regulatory Listing CSAus, UL
Dimming Protocol Triac
Trim Style Baffle
Color Bronze, Nickel, White
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 12.9, 9
Series WF6, WF4
Days To Ship 2 or Less

Read More Read Less
