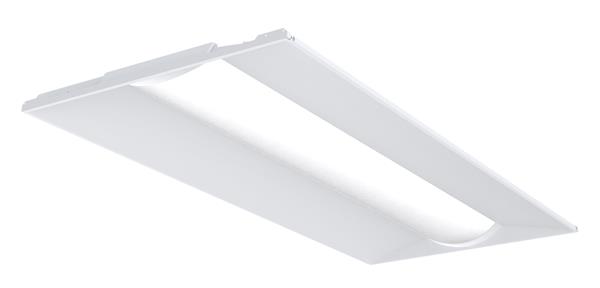

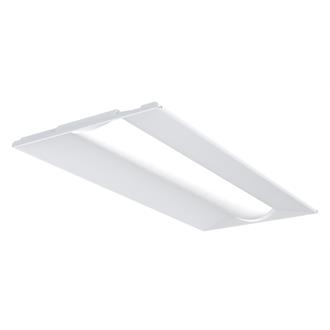

STAKP 2x4_left_01.jpg

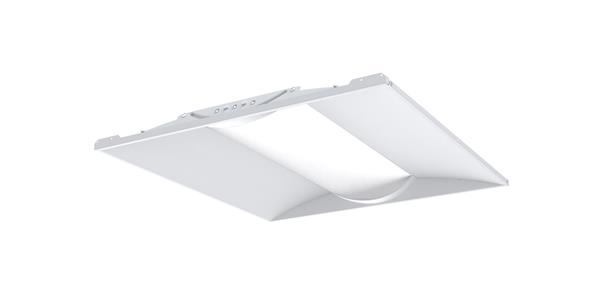

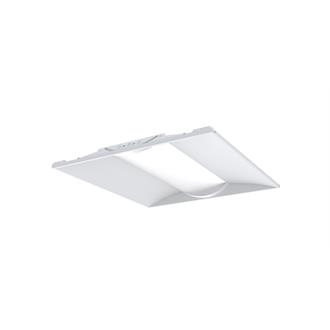

STAKP 2x2_left_01.jpg

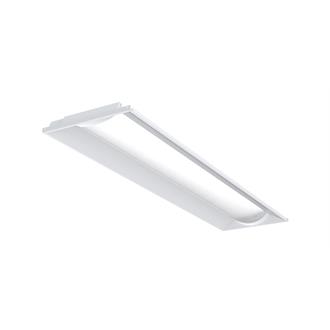

STAKP 1x4_left_01.jpg

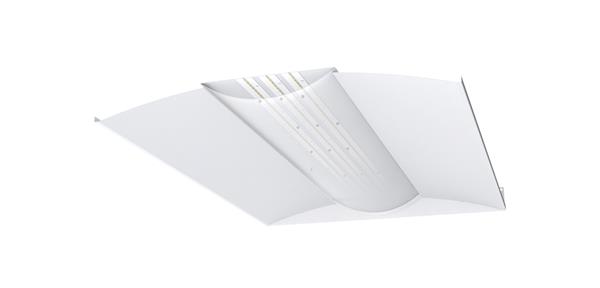

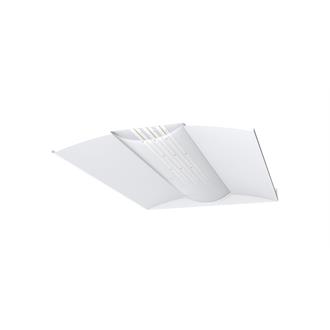

STAKP 2x2_left_Interior_01.jpg

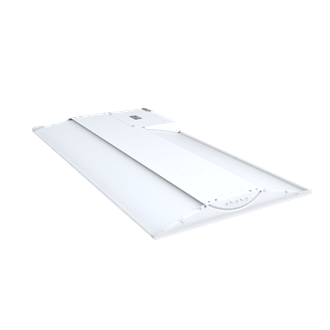

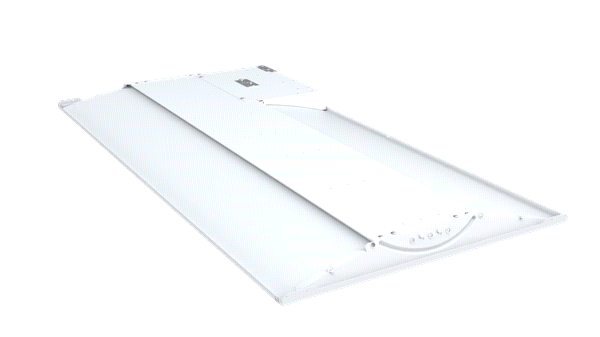

2x4 STACK Prime back

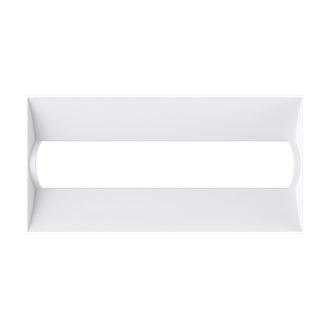

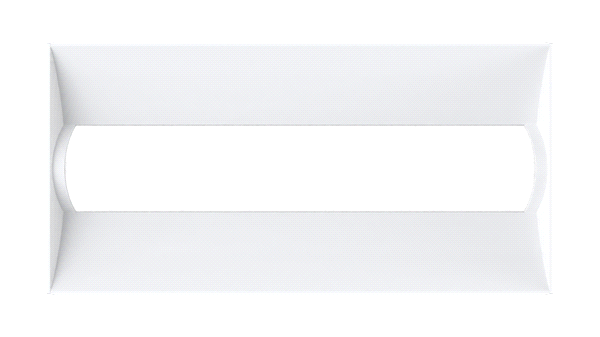

2X4 STACK Prime front

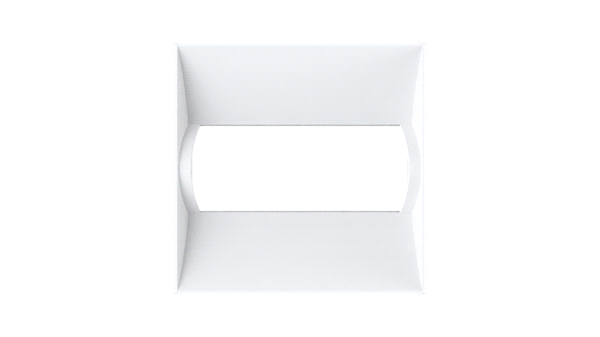

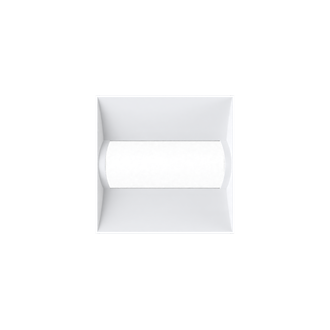

2X2 STACK Prime front

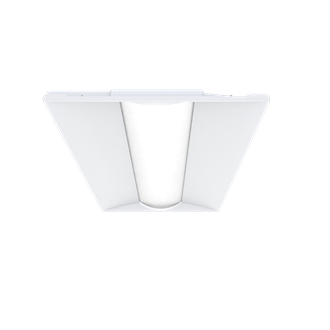

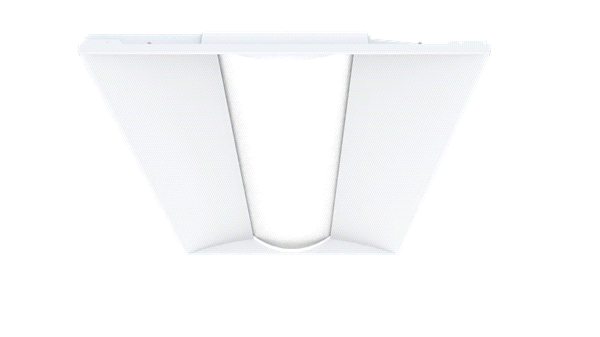

2x4 STACK Prime straight

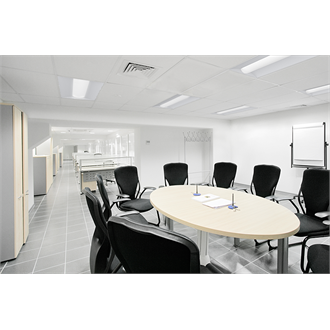

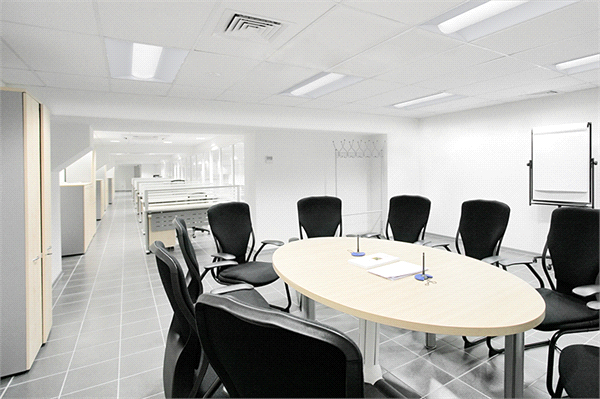

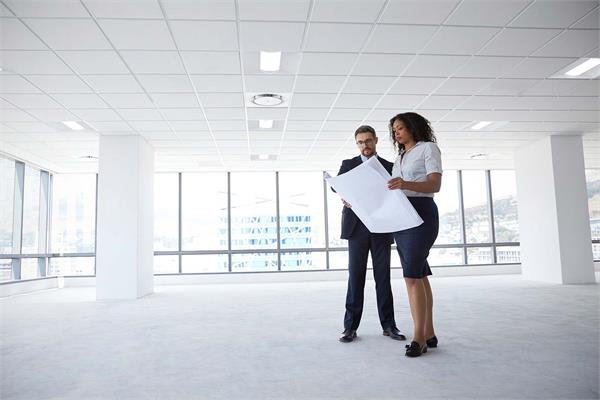

STACK Prime Office
STACK Prime Overview

STACK Prime

The Premium STACK Family Solution

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications
If you’re looking for a next-generation lay-in with superior performance and visual comfort, look no further than STACK Prime. This fixture is the top performance-tiered solution in the STACK Family of products. The seven-inch curved lens, integrated trim rings, and beveled endplates give this premium fixture a high-end aesthetic, and the three rows of LEDs give a full and even illumination making it perfect for creating a beautiful atmosphere in your space. Easy installation into a grid ceiling makes it ideal in applications such as commercial office spaces, retail, universities, healthcare, and more.

Find out more about the STACK Family of products here.


Read More
Read Less
Size 1x4, 2x2, 2x4
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7200 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing DLC Premium, DLC Standard
Environmental Listing Damp Location, IC
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 16.4, 17, 19.7, 23.4, 24.6, 28.7, 32.3, 32.9, 36.2, 41.4, 41.8, 44.6, 48.2, 52, 57, 61
Voltage Rating 120, 120-277, 277, 347
Color White
Mounting Type Recessed
Series STAKP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET STACK PRIME.pdf Recessed LED Center Element Lay-In Troffer 9/28/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet STAK_PRIME_Replacement_Parts_3-02-2022.pdf STAK PRIME Replacement Parts Kit 5/26/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures STACK Family Brochure.pdf STACK Family Brochure Overview 7/12/2021 View
    FAQ STACK_FAQs.pdf FAQs about the STACK Family 10/20/2021 View
    Product Presentation STACK Product Presentation_customer presentation.pdf STACK Family Product Presentation - customer version 3/17/2022 View
    Sell Sheet STACK Comparison Chart.pdf Comparison chart of all STACK fixtures 1/20/2022 View
    Sell Sheet STACK Prime Sell Sheet_0122.pdf Sell Sheet for STACK Prime 2/25/2022 View
