Gotham Lighting

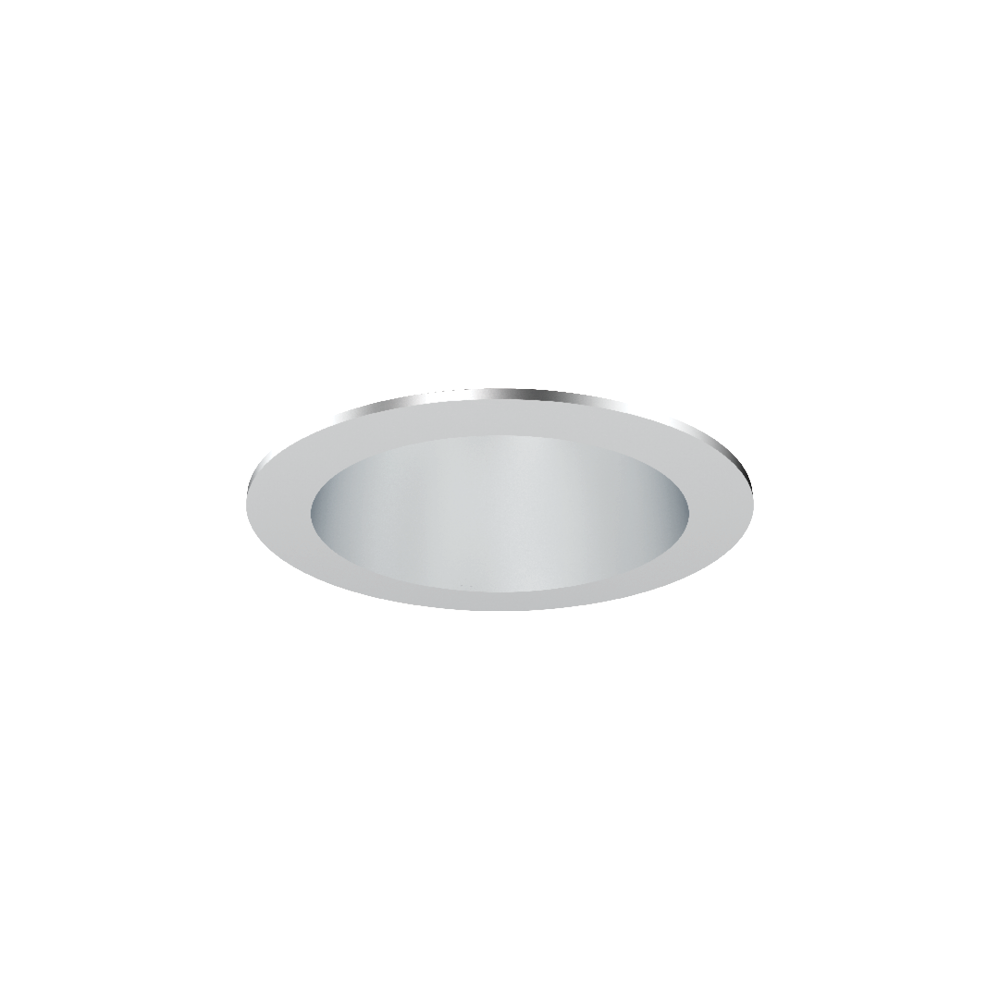

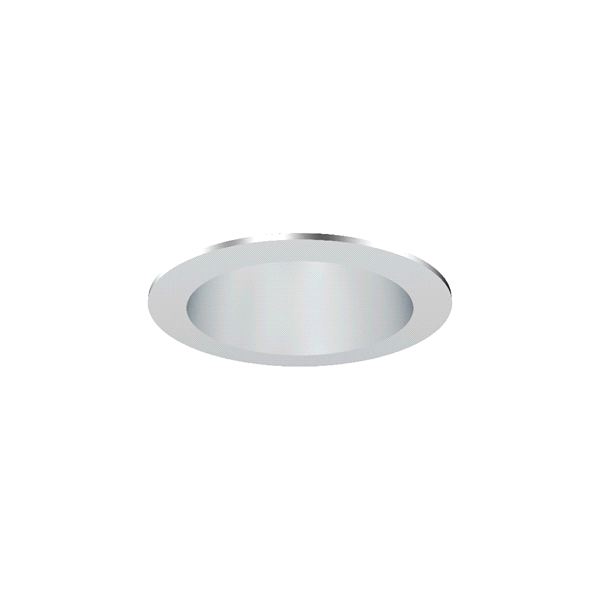

Incito™ 2" Round Downlight

High Center Beam LED Downlight
    CA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Aperture Size 2 IN
Shape Round
Light Source LED - Static
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 90
Product Type Downlight
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, JA8, Low UGR
Environmental Listing Damp Location, IC, IP66, Wet Location
Regulatory Listing UL
Control Platform nLight AIR G2, nLight Wired
Dimming Protocol 0-10V, Reverse Phase
Fixture Wattage 12, 19.8, 28.6, 3.1, 5.6, 8.7
Voltage Rating 120, 120-277, 277

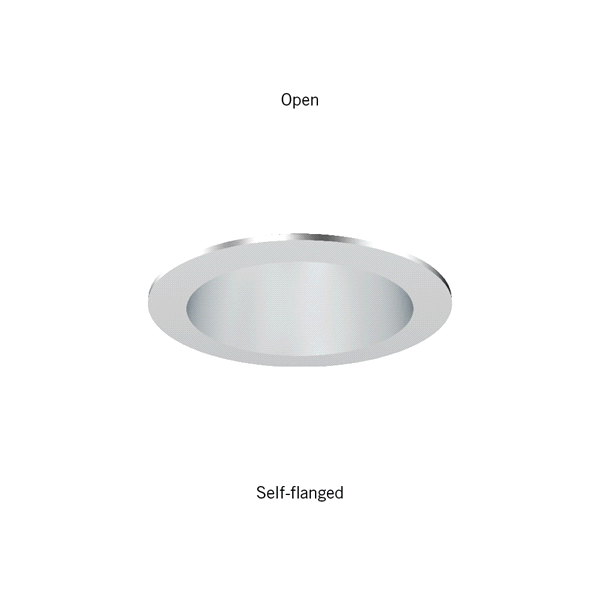

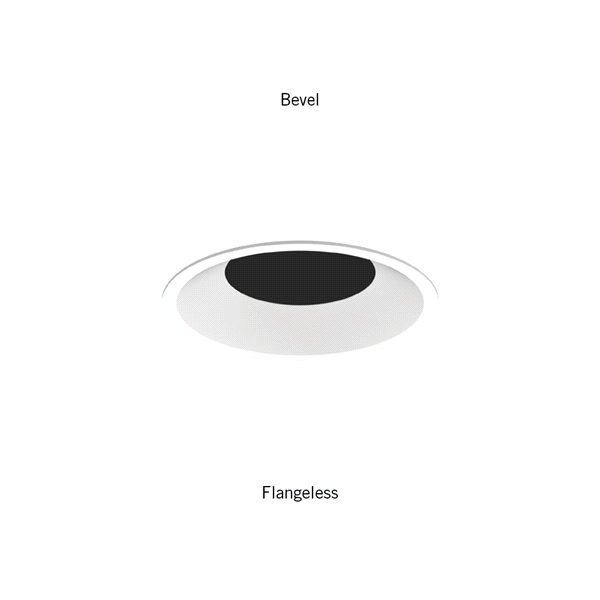

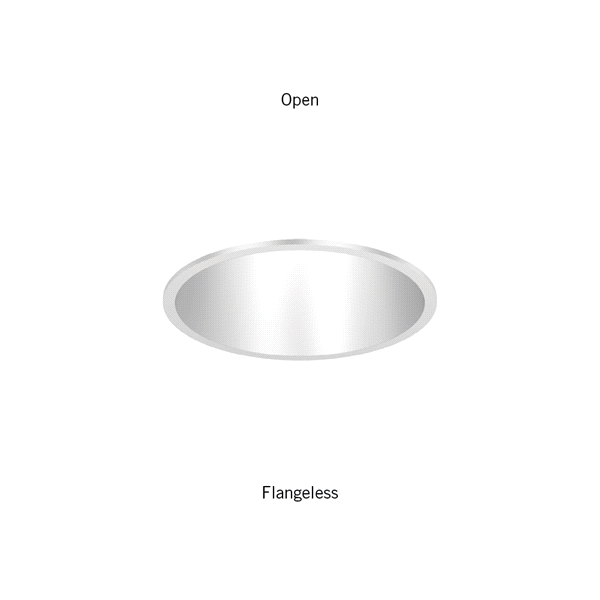

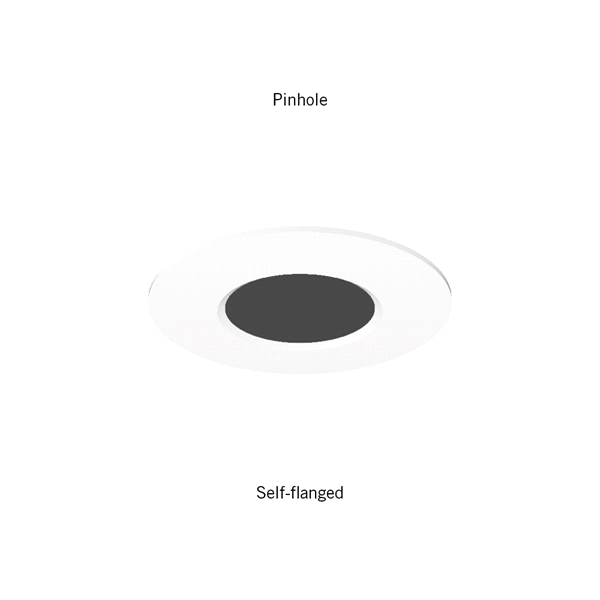

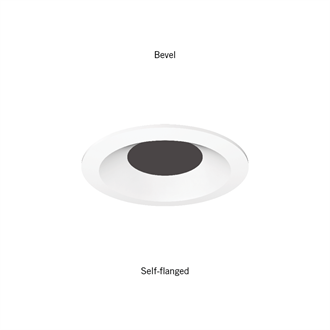

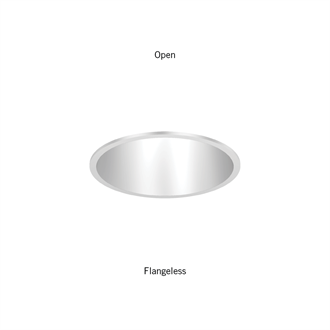

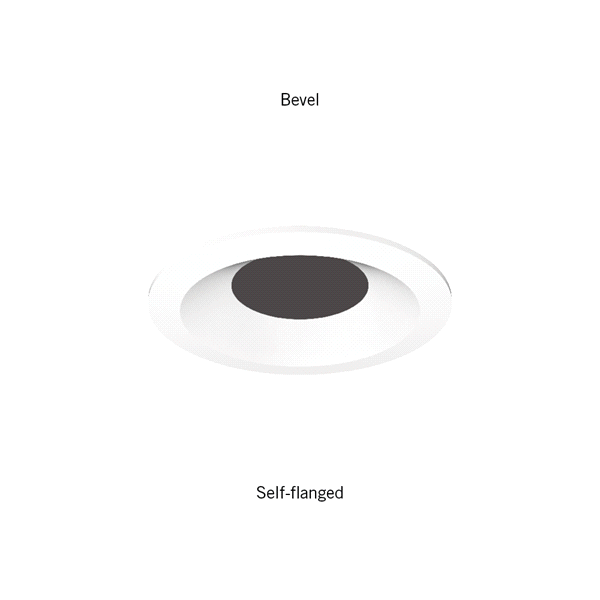

Trim Style Angle-Cut, Bevel, Cone, Lensed, Open, Pinhole
Color Black, Bronze, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed

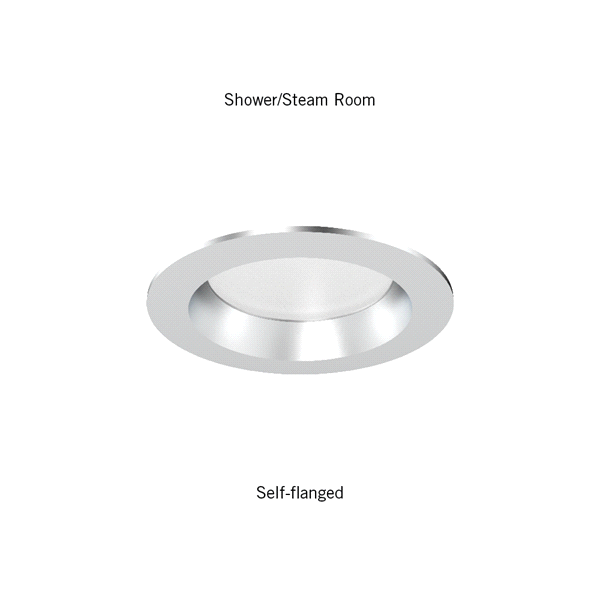

Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Natatorium, Offices & Banks, Residential, Retail, Shower, Special Applications, Sports and Recreation, Steam Room
Function Downlight
Product Series Incito
Series ICO1PIN, ICO2, ICO2BEV, ICO2SH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ICO1PIN.pdf ICO 2" Pinhole Downlight 10/18/2024 View
    Spec Sheet ICO2.pdf ICO 2" Open Downlight 4/15/2025 View
    Spec Sheet ICO2BEV.pdf ICO 2" Bevel Downlight 12/12/2024 View
    Spec Sheet ICO2SH STRM.pdf ICO 2" Steam Room Downlight 11/4/2024 View
    Spec Sheet ICO2SH.pdf ICO 2" Shower Downlight 11/4/2024 View
    Design Select

    Need to Configurator a Design Select Product  or Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting ICO2 35K 90CRI.pdf ICO2 35K 90CRI 11/4/2024 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ52164 2" Optics.pdf EVO & ICO 2" Optic Installation/Replacement Instructions 8/9/2022 View
    Installation Instructions CJ52308-NOM.pdf EVO/ICO 2" Housing - English/Spanish 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Installation Instructions CJ52308.pdf EVO/ICO 2" Housing 8/9/2022 View
    Installation Instructions EVO2 & ICO2 Mud Ring-Flangeless Installation Instructions CJ52316.pdf EVO/ICO 2" Flangeless Mud Ring 2/26/2020 View
    Installation Instructions EVO2 & ICO2 NCH,CP,ICAT Installation Instructions CJ52315.pdf EVO/ICO 2" Structural Reinforcement Pan, Chicago Plenum, and IC/Airtight Housings 3/26/2020 View
    Installation Instructions EVO2 & ICO2 Trim Installation Instructions CJ52310.pdf EVO/ICO 2" Trim 2/26/2020 View
    Installation Instructions ICO2 Shower Trim Installation Instructions CJ52307.pdf ICO 2" Shower Trim 2/26/2020 View
    Installation Instructions 912-00376-003 - INSTALLATION INSTRUCTIONS, DC2DC UNIVERSAL SUPPLEMENTAL.pdf (Archived) DC2DC Supplemental Installation Sheet (Archived) 5/16/2023 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet RK Template_Gotham_ICO2 DLT.pdf ICO2 Round and Square Replacement Kits 1/19/2023 View
