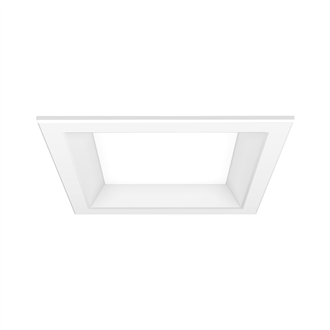

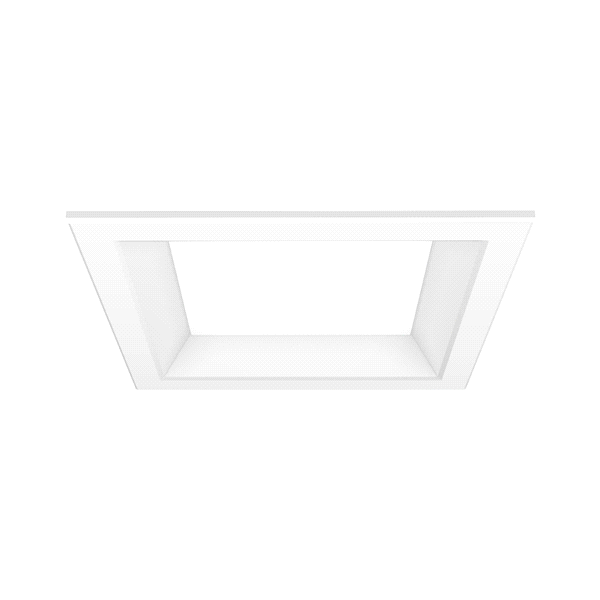

EVO® 6" Square Shower

General Illumination LED Downlight for Shower Applications

By Gotham Lighting

    WarmDimTunable WhiteBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS

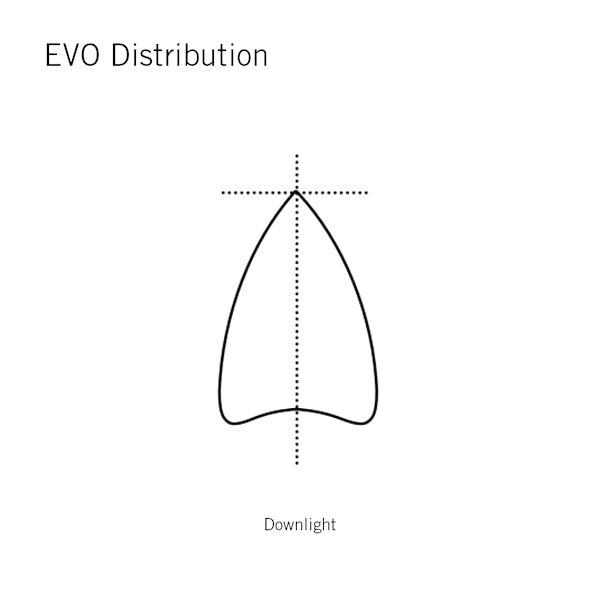

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Functions: Open downlight
  • Beam angles: Medium wide

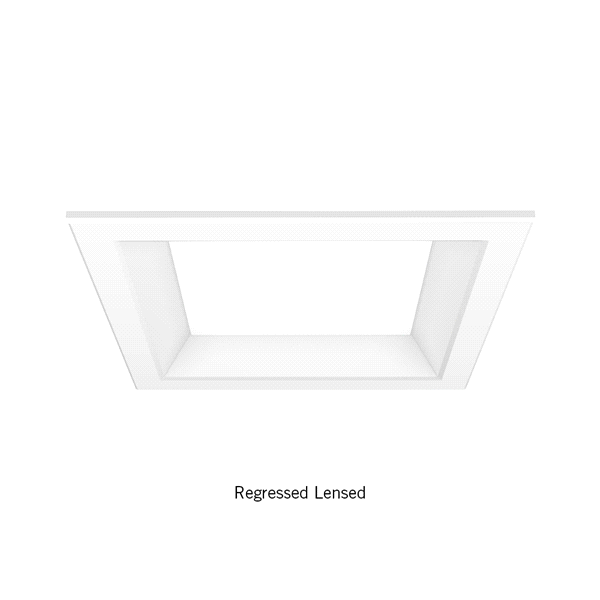

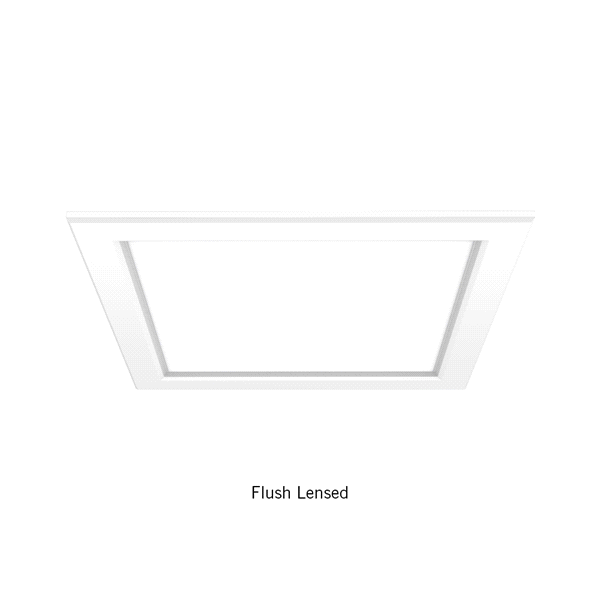

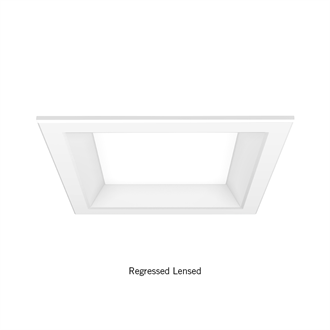

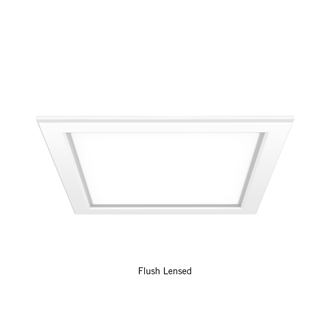

  • Trim options: Flush or regressed lens
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-4,000 LM
  • Listings: CSA, Wet Location, IP66, NSF2 Non-Food/Splash Zone
  • Mainstream Dynamic Lighting: nTune, WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN

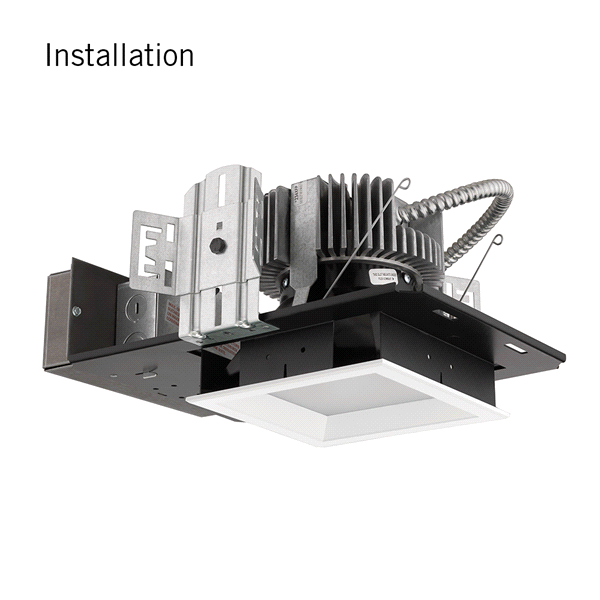

For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.

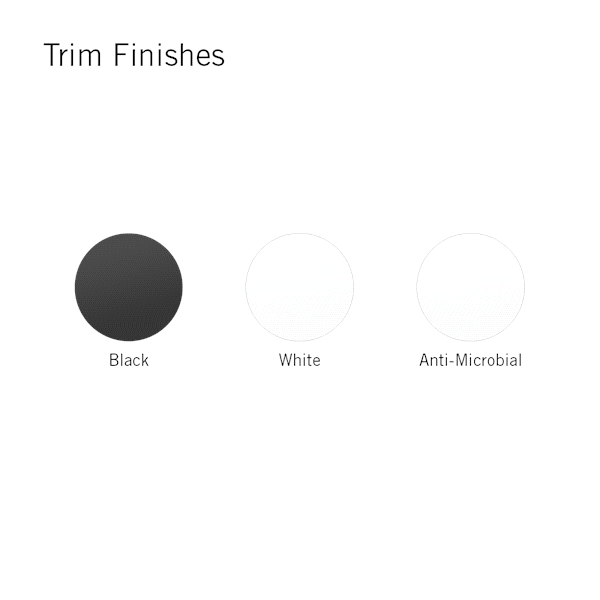

  • Color: White, black, antimicrobial paint finish available
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 6 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, Low UGR
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Voltage Rating 120, 120-277, 277
Trim Style Lensed
Color Black, White
Mounting Type Recessed
Special Applications Education, Healthcare, Hospitality, Residential, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO6SQSH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO6SQSH.pdf EVO 6" Shower Downlight 12/6/2022 View
    SPEC SHEET EVO6SQSH-NTUNE.pdf EVO 6" Shower Downlight with nTune Tunable White & Warm Dimming 4/29/2021 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet Gotham Lighting EVO6 40K 80CRI.pdf EVO6 40K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 80CRI.pdf EVO6 35K 80CRI 8/22/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO6 35K 90CRI.pdf EVO6 35K 90CRI 8/22/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5201071 EVO SQ Spec App Install Sheet.pdf EVO 4"/6" Surgical Suite Housing and Trim View
    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View
    Installation Instructions EVO_SQ_TRIM_INSTALL_CJ520182_pdf.pdf EVO 4"/6" Open and Lensed Wall Wash Trims 5/17/2023 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO Shower Sell Sheet.pdf EVO Shower Sell Sheet 11/13/2019 View
