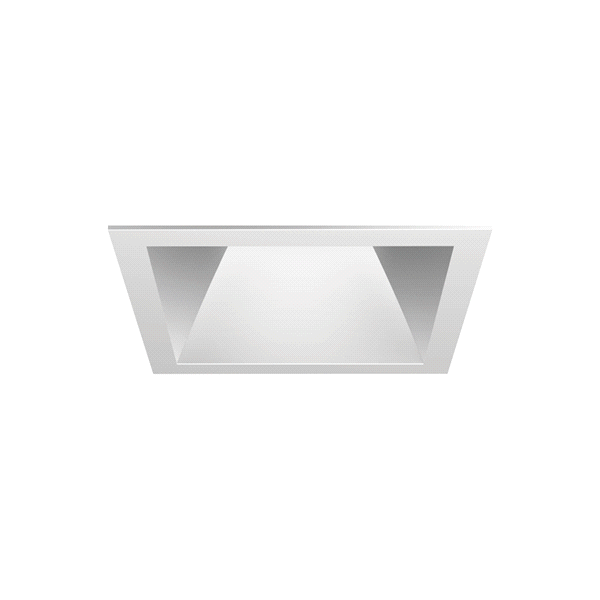

EVO® 4" Square Downlight

General Illumination LED Downlight

By Gotham Lighting

    WarmDimTunable WhiteColor ChangingEnergy Star®Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS

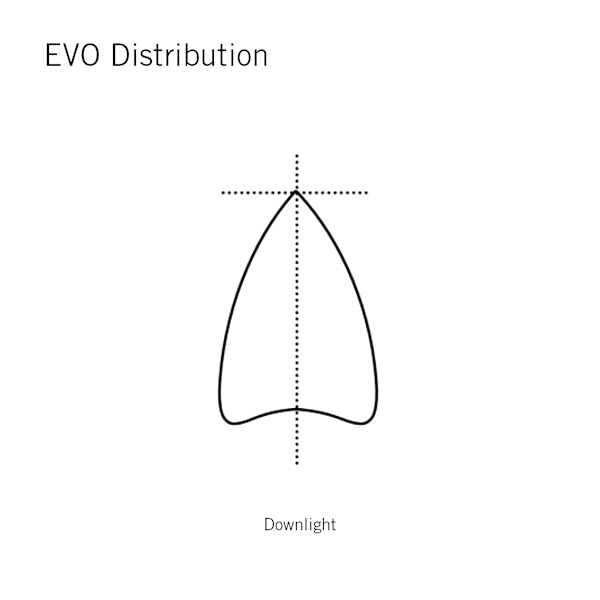

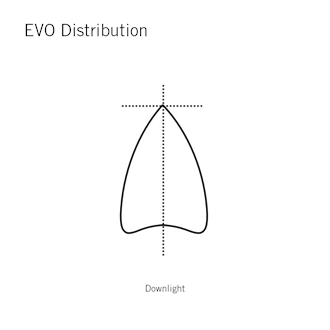

EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45-55°
  • Functions: Open downlight
  • Beam angles: Medium wide

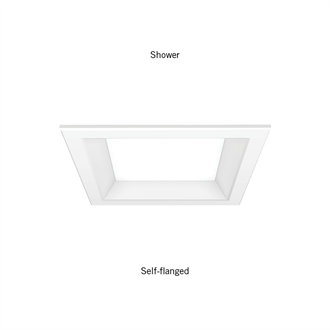

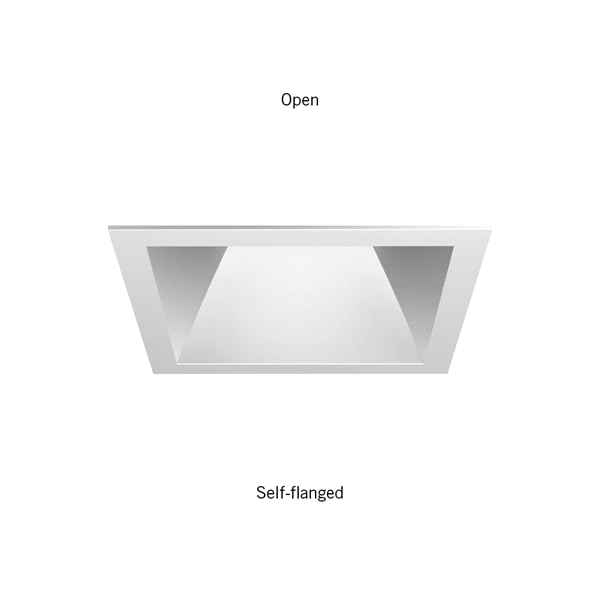

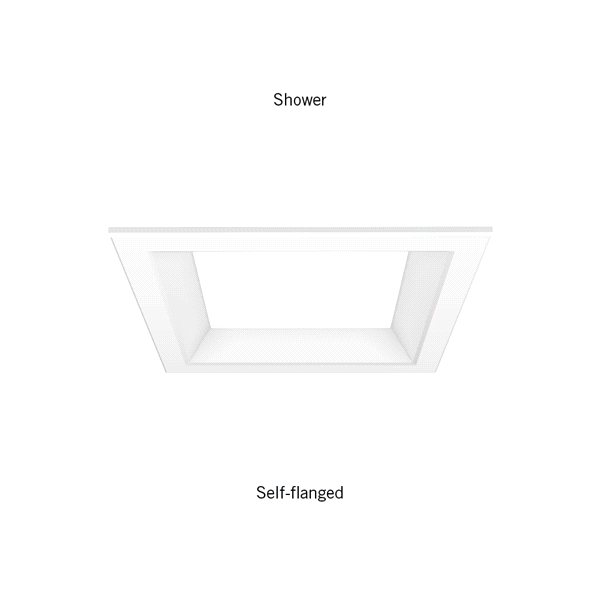

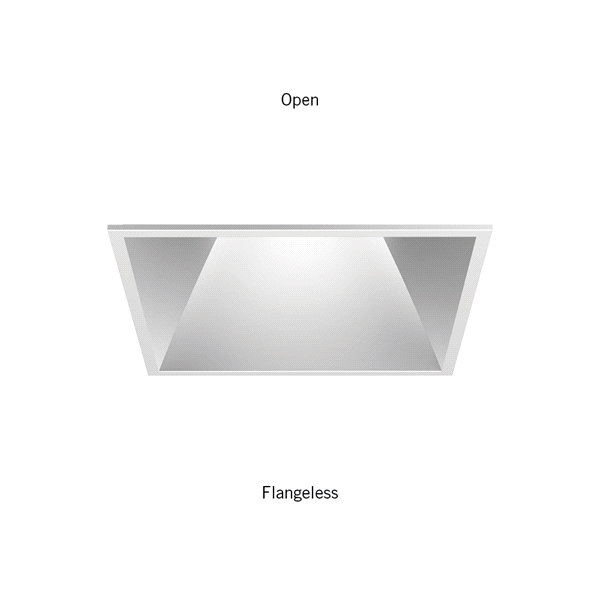

  • Trim options: Self-flanged, flangeless, shower
PERFORMANCE
Our high-performing downlights provide the quality of light needed to create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-3,500 LM
  • Listings: Energy Star, CSA, Wet Location
  • Mainstream Dynamic Lighting: nTune, WarmDim, Architainment (RGBW)
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify downlights, we offer an ample array of installation options, trims, sizes, and colors allowing for a complete custom design.
  • Reflector finishes: Semi-specular and matte diffuse
  • Optics: Easy field-interchangeable optics
  • Trims: Interchangeable open trim
  • Ceiling types: Metal, wood, drywall, suspended grid ceilings
Read More
Read Less
Aperture Size 4 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Dynamic Feature Architainment Color, Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1200 LM, 1500 LM, 1800 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, RGBW, Variable
CRI 85, 90
Product Type Downlight
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing IP66, Non-IC, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX
Voltage Rating 120, 120-277, 277, 347, DC2DC 57VDC
Trim Style Lensed, Open
Color Black, Clear, Gold, Pewter, Wheat, White
Mounting Type Recessed
Special Applications Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Residential, Retail, Shower, Special Applications, Sports and Recreation
Function Downlight
Product Series EVO
Series EVO, EVO4SQ, EVO4SQSH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4SQ-4-OPEN.pdf EVO 4" Open Downlight 6/30/2023 View
    SPEC SHEET EVO4SQ-NTUNE.pdf EVO 4" Open Downlight with Tunable White & Warm Dimming 11/1/2022 View
    SPEC SHEET EVO4SQSH.pdf EVO 4" Shower Downlight 11/21/2022 View
    SPEC SHEET EVO4SQSH-NTUNE.pdf EVO 4" Shower Downlight with nTune Tunable White & Warm Dimming 4/29/2021 View
    SPEC SHEET EVO-SQ-4-OPEN-ARTC.pdf EVO 4" Open Downlight with Architainment RGBW Color 11/1/2022 View
    SPEC SHEET Gotham-EVO4SQ-DC2DC.pdf General Illumination Square Downlight DC2DC Architecture 6/15/2023 View
    SPEC SHEET Gotham-EVO4SQ-NTUNE-DC2DC.pdf General Illumination Square Downlight with nTune DC2DC Architecture 6/15/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions CJ5200914 ICO4 Mudring Install.pdf EVO/ICO 4" Flangeless Mud Ring 2/10/2020 View

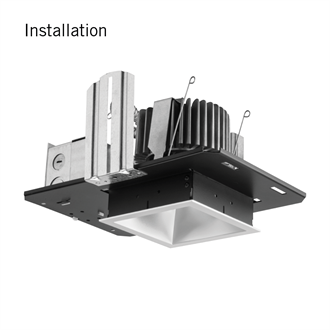

    Installation Instructions EVO_SQ_SQLW_FRAME_INSTALL_CJ5201108_pdf.pdf EVO 4"/6" Housing 4/24/2019 View
    Installation Instructions EVO_SQ_TRIM_INSTALL_CJ520182_pdf.pdf EVO 4"/6" Open and Lensed Wall Wash Trims 7/11/2023 View
    User Manual DMX with RDM Manual.pdf DMX with RDM Manual 9/14/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet EVO Square Downlight Sell Sheet EVO Square Downlight Sell Sheet 9/30/2019 View
