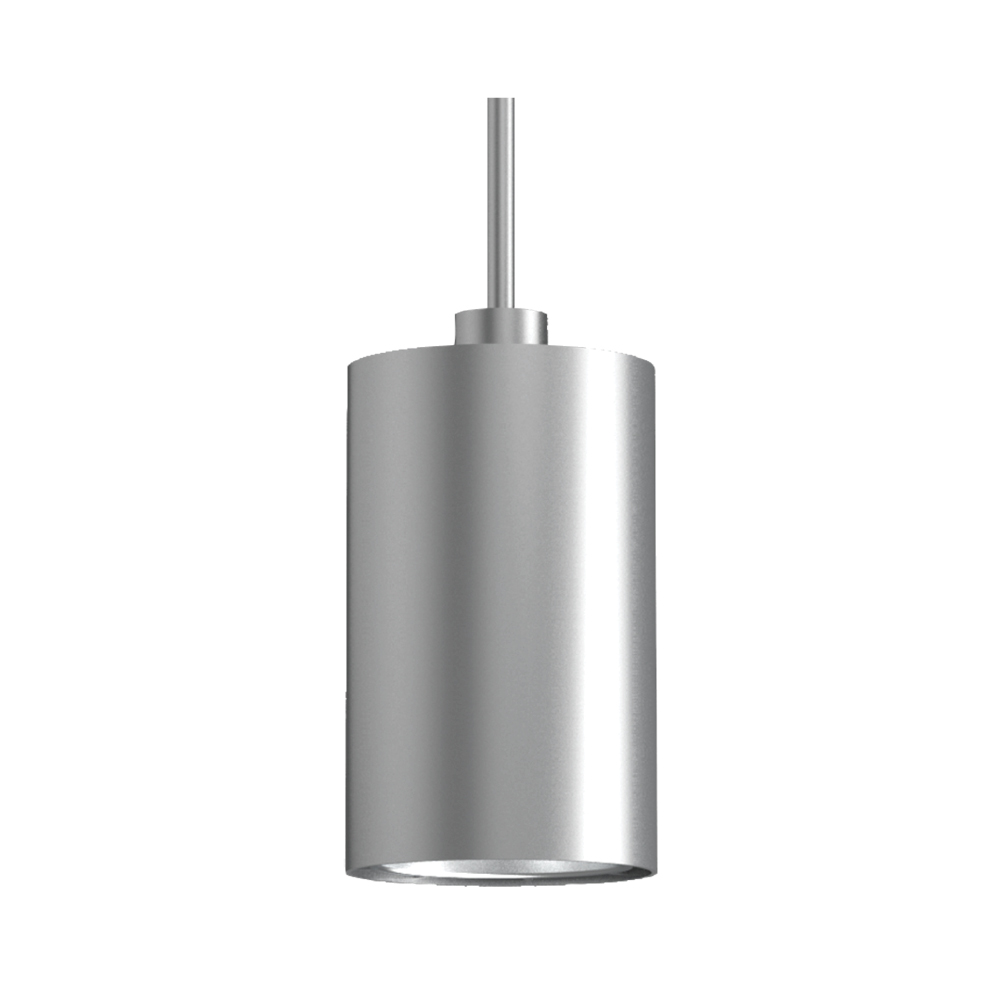

EVO® 4" Round Pendant Mount Cylinder

General Illumination LED Downlight & Wall Wash Cylinder

By Gotham Lighting

    WarmDimTunable WhiteEnergy Star®Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
OPTICS
EVO® batwing distribution provides a uniform, wide angled general illumination on horizontal and vertical surfaces to create smooth edges and an even layer of light without hot spots or rings.
  • Cutoff: 45°
  • Functions: Downlight, open wall wash, corner wall wash, double wall wash, and lensed wall wash solutions
  • Beam angles: Medium, medium wide, wide
  • Trim options: Cone
PERFORMANCE
Our high-performing cylinders provide the quality of light and consistency needed to efficiently create multiple layers of light within a space.
  • Bounding Ray™ technology eliminates flash for superior glare control
  • Lumens: 250-5,000 LM
  • Listings: Energy Star, CSA, Damp Location, Wet Location
  • Mainstream Dynamic Lighting: nTune and WarmDim
  • Driver capabilities: Up to 10 different driver options from 0-10v to DMX
  • Controls: nLight® wired and wireless lighting controls
  • Emergency Battery Backup
DESIGN
For wherever you specify cylinders, we offer an ample array of mounting types, trims, sizes, and colors allowing for a complete custom design.
  • Colors: 20 standard colors and full breath of RAL custom colors
  • Mounting: Stem suspension is suitable for indoor or outdoor applications and easy to modify with conduit entries at a diameter of ½ inch
  • Mounting: Cord suspension provides a tight and straight suspension, with a cord significantly smaller than most, and designed with no aircraft cable
Read More
Read Less
Aperture Size 4 IN
Shape Round
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White, Warm Dimming
Lumens 250 LM, 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80
Product Type Cylinder
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX, Forward Phase
Fixture Wattage 10.3, 10.8, 12, 12.4, 13.7, 16, 17, 20.9, 21.1, 22, 25.7, 26.6, 27.4, 3.28, 31.2, 32, 33.1, 35.8, 40.4, 41.4, 46.3, 5.47, 8.65, 9.61
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Corner Wallwash, Double Wallwash, Lensed, Open, Single Wallwash
Color Almond, Black, Blue, Bronze, Clear, Gold, Gray, Green, Ivory, Pewter, Red, Silver, Wheat, White
Mounting Type Pendant
Special Applications Education, Government, Hospitality, House of Worship, Offices & Banks, Residential, Retail
Function Downlight, Wall Wash
Product Series EVO
Series EVO4CC, EVO4PC, EVO4PCWW, EVO4PCCWW, EVO4PCDWW, EVO4PCLW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EVO4CC NTUNE.pdf EVO 4" Open Cord Mount Cylinder with nTune Tunable White & Warm Dimming 10/31/2022 View
    SPEC SHEET EVO4CC.pdf EVO 4" Open Cord Mount Cylinder 5/3/2023 View
    SPEC SHEET EVO4PC NTUNE.pdf EVO 4" Open Stem Mount Cylinder with nTune Tunable White & Warm Dimming 6/22/2020 View
    SPEC SHEET EVO4PC.pdf EVO 4" Open Stem Mount Cylinder 5/3/2023 View
    SPEC SHEET EVO4PCLW.pdf EVO 4" Lensed Wall Wash Stem Mount Cylinder 5/3/2023 View
    SPEC SHEET EVO4PCLW-NTUNE.pdf EVO 4" Lensed Wall Wash Stem Mount Cylinder with nTune Tunable White & Warm Dimming 10/31/2022 View
    SPEC SHEET EVO4PCWW.pdf EVO 4" Open, Corner & Double Wall Wash Stem Mount Cylinder 5/3/2023 View
    SPEC SHEET EVO4PCWW-NTUNE.pdf EVO 4" Open, Corner & Double Wall Wash Stem Mount Cylinder with nTune Tunable White & Warm Dimming 4/26/2021 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 30K 90CRI.pdf EVO4 30K 90CRI 10/25/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4 35K 90CRI.pdf EVO4 35K 90CRI 9/8/2022 View
    Spectral Data Sheet Spectral Data Sheet_Gotham Lighting EVO4-EVO6 35K 80CRI.pdf EVO4 35K 80CRI 9/8/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00164-001 RGH Instruction.pdf EVO 4"/6", ICO 4" Cylinder with Recessed Gear Housing (RGH) 8/9/2022 View
    Installation Instructions 912-00368-001 REMOTE BATTERY SIDE CAR EVO_ICO 4-6IN CYL INSTALL.pdf EVO 4"/6", ICO 4" Cylinder with remote side car style battery pack 10/31/2022 View
    Installation Instructions 912-00368-001 REMOTE BATTERY SIDE CAR EVO_ICO 4-6IN CYL INSTALL_NOM.pdf EVO 4"/6", ICO 4" Cylinder with remote side car style battery pack - NOM 10/31/2022 View
    Installation Instructions 912-00379-001 INTEGRAL BATTERY EVO_ICO 4-6IN CYL INSTALL.pdf EVO 4"/6", ICO 4" Cylinder with integral battery pack & test switch 10/31/2022 View
    Installation Instructions 912-00379-001 INTEGRAL BATTERY EVO_ICO 4-6IN CYL INSTALL_NOM.pdf EVO 4"/6", ICO 4" Cylinder with integral battery pack & test switch - NOM 10/31/2022 View
    Installation Instructions 912-00380-001 RGH BATTERY PACK INTEGRAL TEST SWITCH_EVO_ICO 4-6IN CYL INSTALL.pdf EVO 4"/6", ICO 4" Cylinder for RGH mounting with battery pack & integral test switch 10/31/2022 View
    Installation Instructions 912-00380-001 RGH BATTERY PACK INTEGRAL TEST SWITCH_EVO_ICO 4-6IN CYL INSTALL_NOM.pdf EVO 4"/6", ICO 4" Cylinder for RGH mounting with battery pack & integral test switch - NOM 10/31/2022 View
    Installation Instructions CJ53520 EVO_ICO 4-6IN CYL STEM_JBX_JBXCC_INSTALL.pdf EVO 4"/6", ICO 4" Stem Mount Cylinder with Integral drivers and Recessed or Surface J-box 8/10/2022 View
    Installation Instructions CJ53523 EVO_ICO 4-6IN CYL DMX521_RDM.pdf EVO 4"/6", ICO 4" Cylinder with DMX/RDM 1/18/2021 View
    Installation Instructions CJ53531 EVO_ICO 4-6IN CYL CORD_JBX_JBXCC_INSTALL.pdf EVO 4"/6", ICO 4" Cord Mount Cylinder with Integral Driver and Recessed or Surface J-Box 8/10/2022 View
    Installation Instructions CJ53532 EVO4-6IN_ICO4 CYL STEM_SGB_SGBCC_INSTALL.pdf EVO 4"/6", ICO 4" Stem Mount Cylinder with Surface Gear Box and Recessed or Surface J-box 8/10/2022 View
    Installation Instructions CJ53533 EVO_ICO 4-6IN CYL CORD_SGB_SBGCC_INSTALL.pdf EVO 4"/6", ICO 4" Cord Mount Cylinder with Surface Gear Box and Recessed or Surface J-box 8/10/2022 View
    Installation Instructions CJ97039 EVO_ICO 4-6IN_WW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6" Open WallWash Cylinder Fixture Aiming 3/31/2020 View
    Installation Instructions CJ97040 EVO_ICO 4-6IN PC_LW TRIM_INSTALL_SUPPLEMENT.pdf EVO 4"/6", ICO 4" Lensed Wall Wash Stem Mount Cylinder Fixture Aiming 3/31/2020 View
