Next-generation of Lay-ins

By Lithonia Lighting

    DLC Premium
  • Overview
  • Specifications

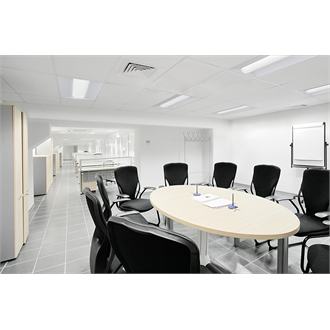

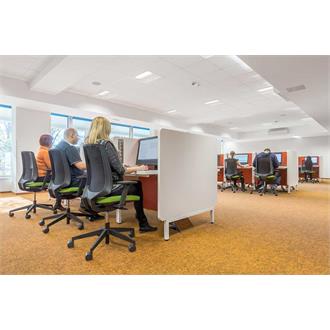

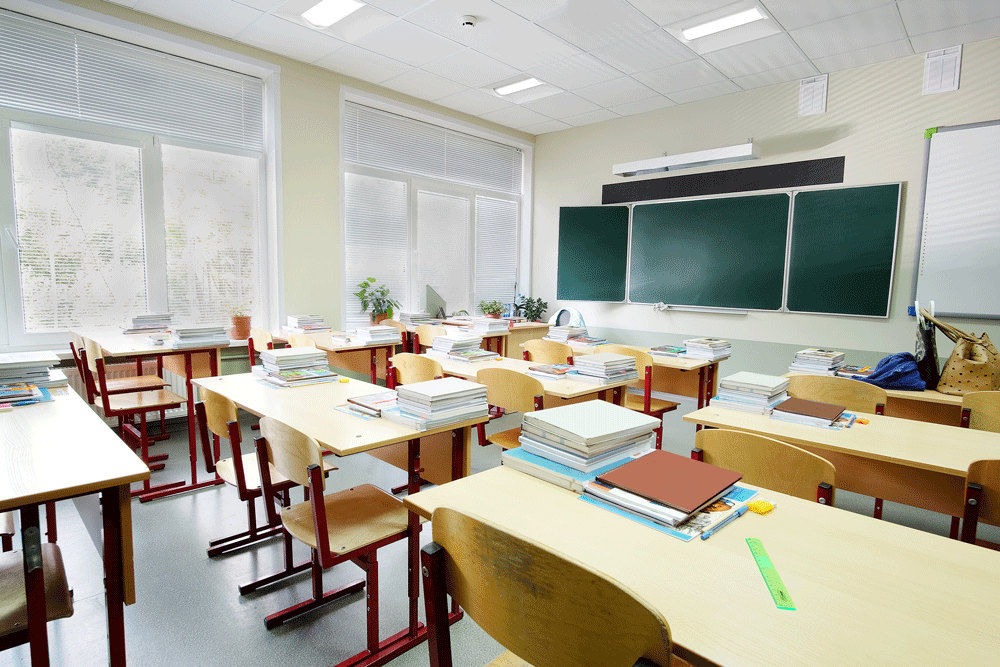

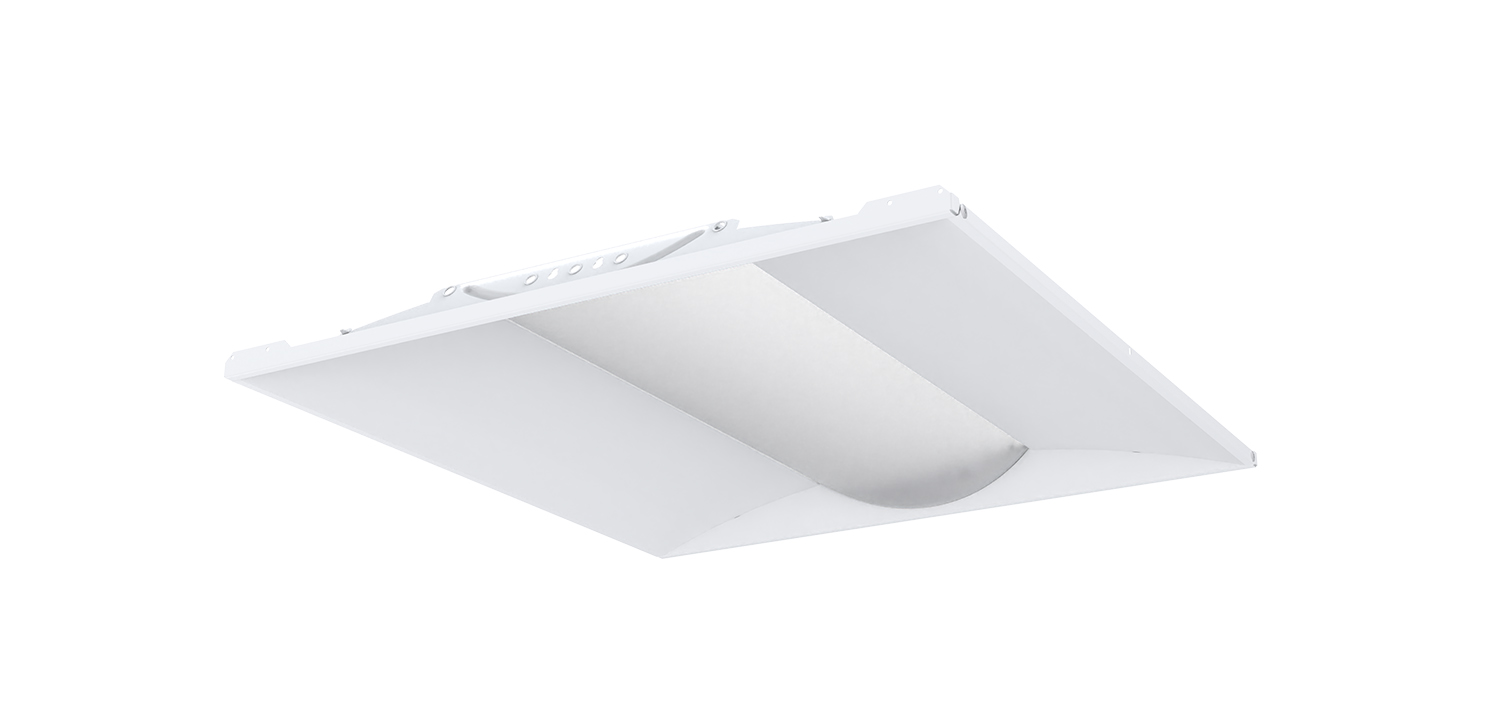

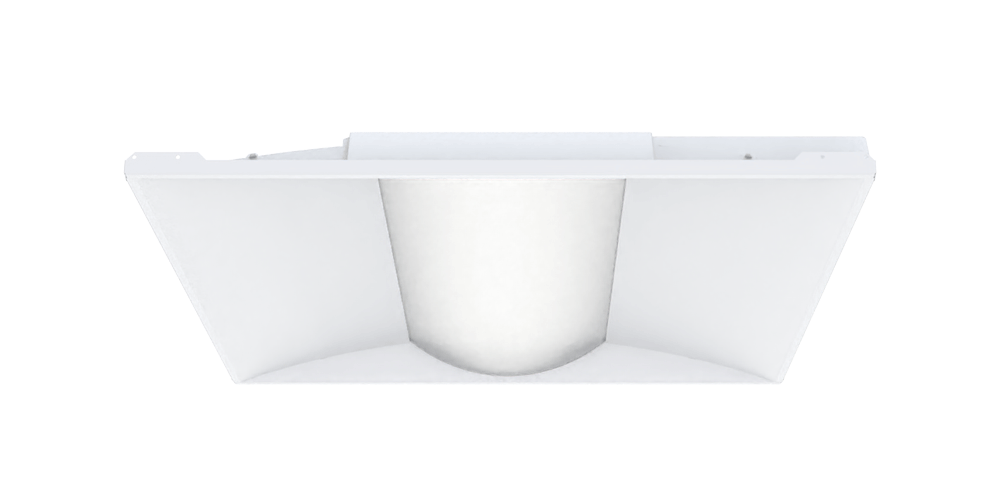

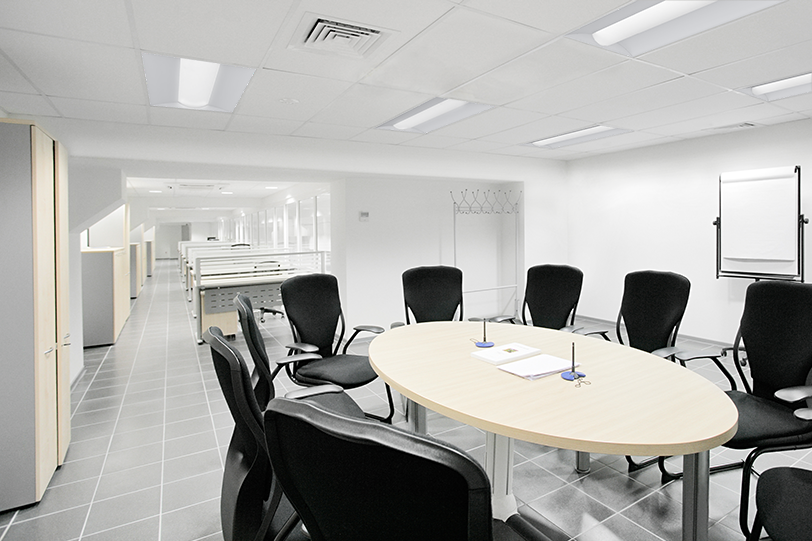

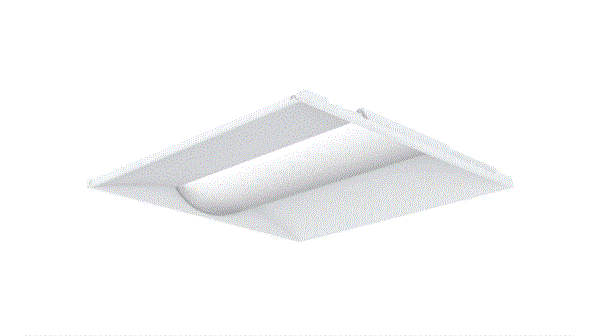

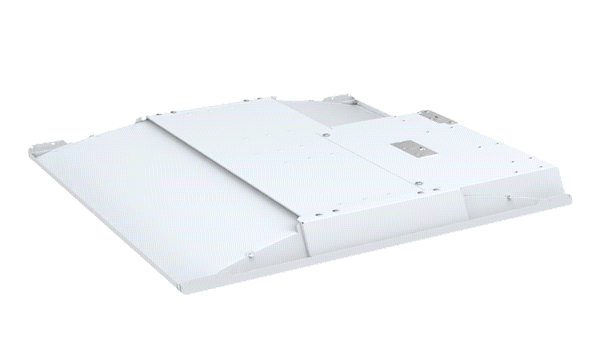

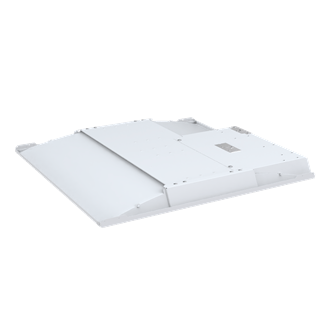

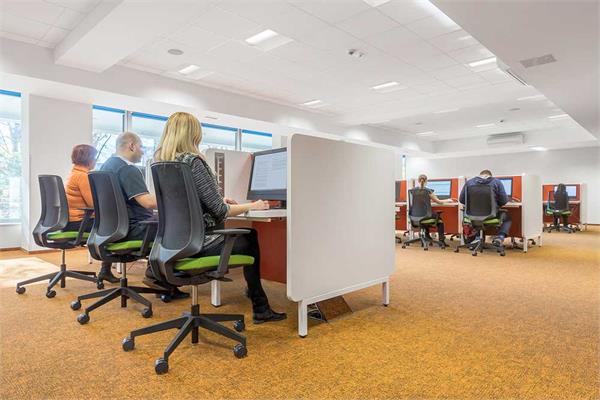

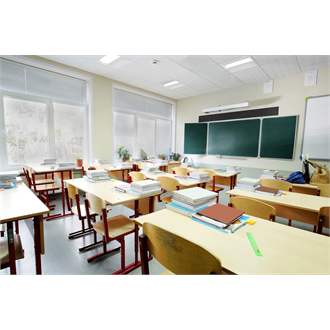

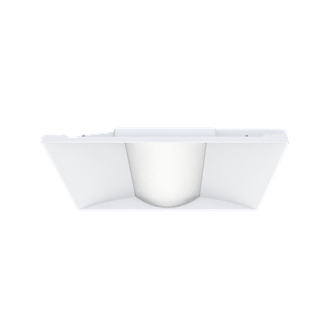

STACK is the newest staple of center-element lay-ins from Lithonia Lighting®. It’s the namesake of the STACK Family, bringing high performance and expanded configuration opportunities all in a new aesthetically pleasing form factor. With millions of configurations available in this new luminaire, nLight® embedded wired or wireless controls, emergency battery packs, eldoLED® drivers, and more, this fixture is perfect for a multitude of applications. STACK would be ideal for projects like healthcare, education, commercial office, retail, and more. Find out more about the STACK Family of products here.

Read More
Read Less
Size 1x4, 2x2, 2x4
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7200 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Troffer
Compliance Listing DLC Premium, DLC Standard
Environmental Listing Damp Location, IC
Regulatory Listing CSA
Dimming Protocol 0-10V, Digital
Fixture Wattage 17, 17.6, 20, 20.1, 20.5, 20.6, 21.1, 23.1, 23.6, 24.7, 25.3, 27.7, 28.2, 28.3, 28.7, 28.8, 31.7, 32.2, 33.7, 34.5, 36.7, 37.2, 37.5, 37.9, 38, 40.9, 41.4, 43.7, 44, 46.7, 47, 47.2, 47.4, 47.5, 50, 51, 52, 55, 56, 59, 60, 61, 62, 64, 65, 68, 69
Voltage Rating 120, 120-277, 277, 347
Color White
Mounting Type Recessed
Series STAK

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET STACK.pdf Recessed LED Center Element Lay-In Troffer 8/28/2023 View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Instruction Sheet STAK and STAKP (Configurable) REV1.pdf Installation Instructions for STAK and STAKP (Configurable) 7/1/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option
  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet STAK_Replacement_Parts_10-10-2022.pdf STAK Replacement Parts Kit 10/10/2022 View
    Replacement Part Spec Sheet STAK Replacement Parts 3.02.2022.pdf (Archived) STAK Replacement Parts Kit 3/23/2023 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures STACK Family Brochure.pdf STACK Family Brochure Overview 7/12/2021 View
    FAQ STACK_FAQs.pdf FAQs about the STACK Family 10/20/2021 View
    Product Presentation STACK Product Presentation_customer presentation.pdf STACK Family Product Presentation - customer version 3/17/2022 View
    Sell Sheet STACK Comparison Chart.pdf Comparison chart of all STACK fixtures 1/20/2022 View
    Sell Sheet STACK Sell Sheet_0222.pdf Sell Sheet for STACK 3/4/2022 View
