IBH

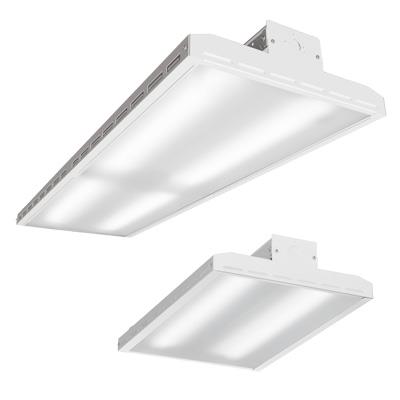

I-BEAM IBH LED High Bay, industrial lighting

IBH

I-BEAM® LED Solid Top BayLight

By Lithonia Lighting

    DLC PremiumBuy America(n) Option Available
  • Overview
  • Specifications

Affordable and configurable warehouse lighting
The I-BEAM® IBH LED luminaire gives even budget-conscious customers a very reliable LED solution. In addition to its low initial cost, the fixture saves up to 60% in energy costs over HID and also costs less to operate than popular fluorescent products - not to mention the maintenance savings! When paired with occupancy sensors, dimming and intuitive controls, you save even more energy and extend the life of the fixture.

Increase your R.O.I. with controls!
The IBH LED is available with integrated controls and sensor options (occupancy, photo & dimming) to reduce energy costs and help extend the life of the fixture.

Optional XPoint™ Wireless controls technology creates a mesh network that communicates between fixtures, sensors and wall stations facility-wide. This option provides superior lighting management capabilities including granular control that can light zones differently depending on the time of day, season and special event.


With a diffuse lens to control glare, this fixture is suitable for mounting heights from 10’ to 40’. It is ideal in controlled environments such as warehousing, gymnasiums and light industrial spaces.

Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 9000 LM, 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 36,000 LM, Not Applicable
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Product Type High Bay
Compliance Listing BAA, DLC Premium, DLC Standard
Environmental Listing Damp Location, Dry Location, Wet Location
Regulatory Listing CSA, UL
Dimming Protocol 0-10V
Fixture Wattage 109, 112, 118, 120, 137, 140, 142, 143, 146, 209, 210, 216, 221, 264, 265, 272, 280, 78, 79, 84, 87
Voltage Rating 120, 120-277, 208, 240, 277, 347, 347-480, 480, HVOLT, MVOLT
Color Black, White
Mounting Type Suspended
Series IBHST, IBH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IBHST Specification Sheet I-BEAM Solid Top LED Bay Lighting 4/10/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories LEDINTA0700C210DO_03092012.pdf IBL IBH driver specification sheet View
    Accessories WGIBH.pdf IBH Wire guard spec drawing View
    Accessories WGIBH4 spec drawing.pdf IBH wire guard for the 36, 48L specification drawing View
    Acrylic Compatibility Acrylic-Compatibility General Acrylic Compatibility Information View
    Electrical Data 150W_0.70A_210V_0-10V_HCN_LEDHCNA0700C210DN.pdf IBH-IBL Driver HVOLT Specifications View
    Installation Instructions AU4325_Rev 5.7.2012.pdf IBAC120-240 Instruction sheet for air craft cable mounting for high bays View
    Installation Instructions IBAC120 INSTALLATION INSTRUCTION.pdf IBAC120/240 INSTALLATION INSTRUCTION View
    Installation Instructions IBH LED Bay Lighting Installation Instruction Sheet IBH LED Bay Lighting Installation Instruction Sheet View
    Installation Instructions IBH replacement board instructions - UT04526.pdf IBH LED Boards Replacement Instructions View
    Installation Instructions Wire guard installation.pdf IBH wire guard installation instructions View
    Line Drawing LIBH24 .pdf IBH lens spec sheet View
    Line Drawing LIBH48 Page 1 (1).pdf LIBH48 specification sheet View
