Graphic WallPod

by nLight

  • DesignLights Consortium®

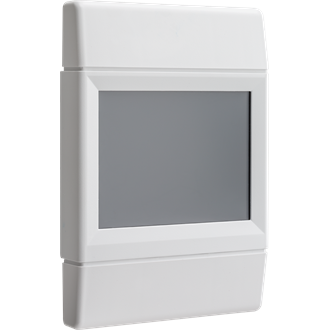

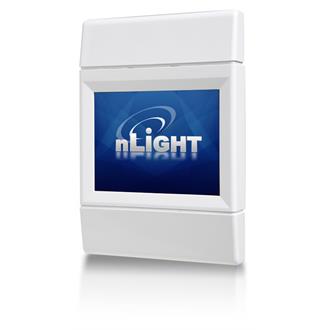

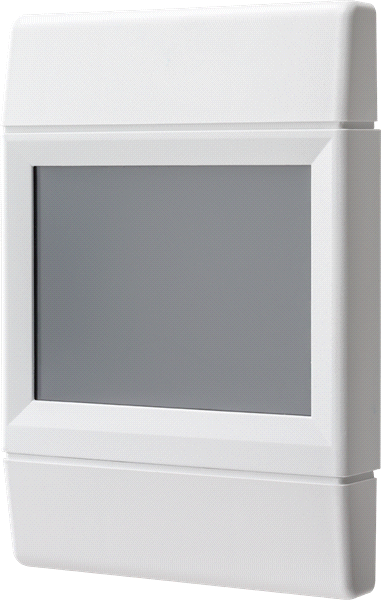

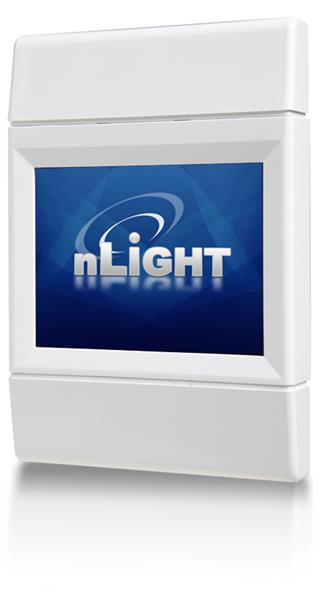

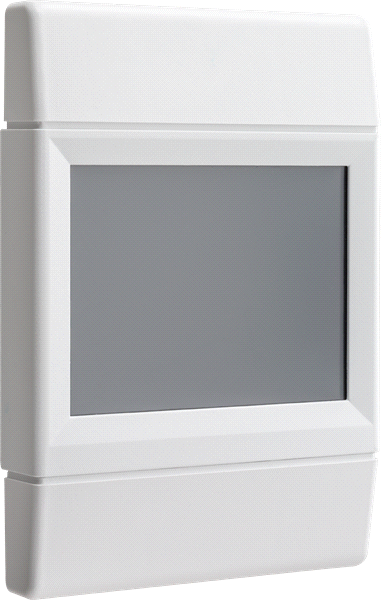

The Graphic WallPod (nPOD GFX) provides an elegant and sophisticated user control to any nLight controlled space. Its 3.5 inch~157;, high resolution touch screen is easy to view and simple to use.

The Graphic WallPod fundamentally operates as a multi-channel user control device. It is configurable to display up 16 controls (either on/off, or on/off/dim style) as well as 8 lighting preset buttons (in groups of 4). Each screen displays two controls with simple left/right paging style navigation to access other screens.

A control is activated simply by touching the screen. The unit instantly communicates the desired action throughout the connected zone of nLight devices. All devices programmed to listen for (track) commands from switches on a respective channel will react by turning connected lights on/off, or by dimming them accordingly. To facilitate simple commissioning of a zone, the Graphic WallPod automatically discovers and displays a list of all devices with relays and dimming outputs within its zone. The switch tracking settings on these devices can then be modified from the Graphic WallPod.

Lighting presets consist of a combination of user configured settings (on/off or dim level) for each control that can be activated via a single button. Pressing the applicable button then instantly communicates the group of presets out to the devices in the zone.
Full-color Touch Screen (Diagonal): Provides up to 16 On/Off/Dim Controls. Provides up to 8 Lighting Presets Controls. Provides up to 8 Local Scenes/Global Profiles Controls, Enables User Customization of all Presets and On/Off/Dim Controls, Enables Programming of Switch Tracking Channels of Devices in Zone, Low Voltage Device Mounts to a Single Gang Switch Box, Front Assessable Micro-USB Connector for Simple Laptop Connectivity, Optional Password Protection for Controls and Setup Screens, Customizable Screen Saver Image, Onboard Help Screens.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand nLight
    A+ Capable Yes
    Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses
    Color Almond, Black, Gray, Ivory, White
    Control Device Type Graphical Touchscreen
    Finish Gloss
    Mounting Type Surface
    Networkable Control Networkable Control
    Product Type Switch
    Series NPOD
    Voltage 120, 277, 347
    Compliance Listing DLC Standard
