nPODM Family

WallPod - Push-button

By nLight

    DLC Standard / Premium
  • Overview
  • Specifications

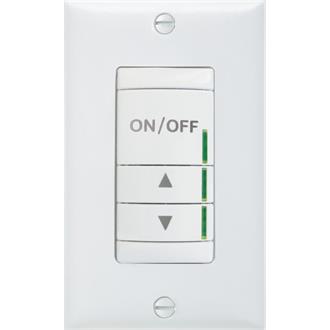

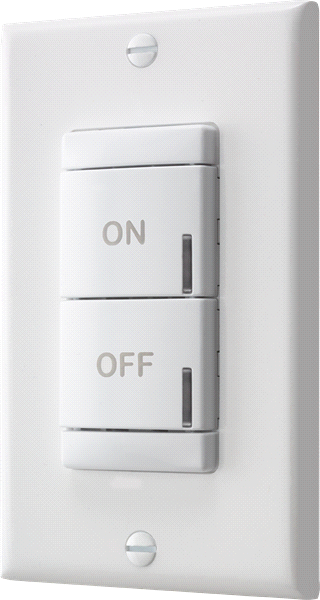

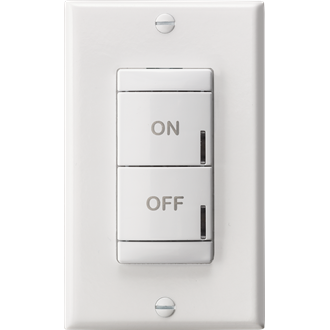

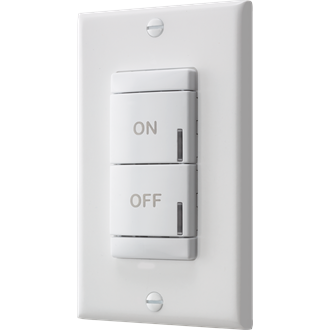

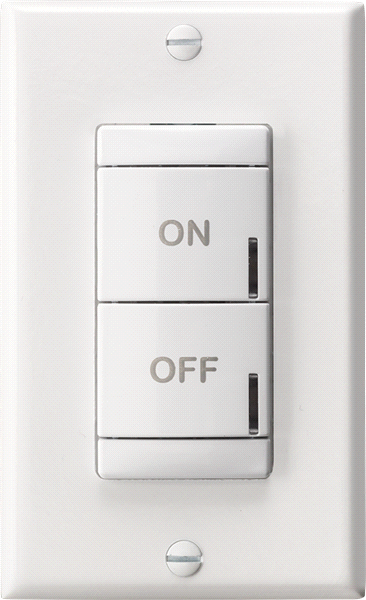

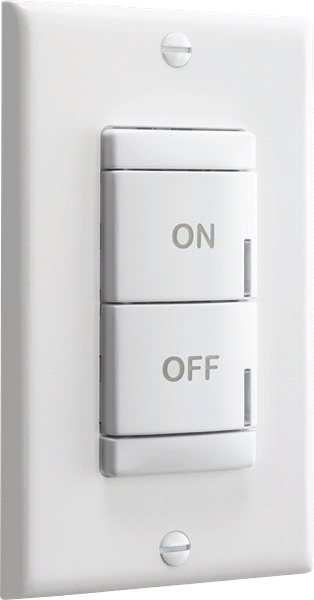

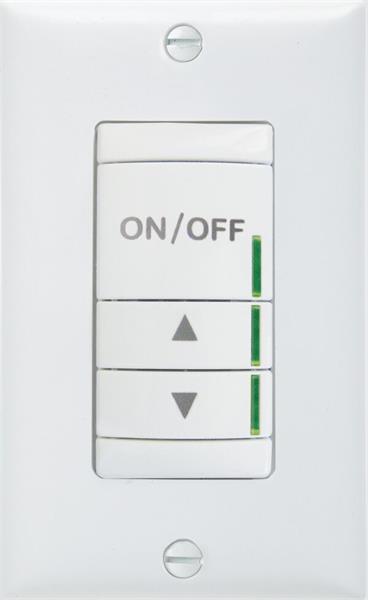

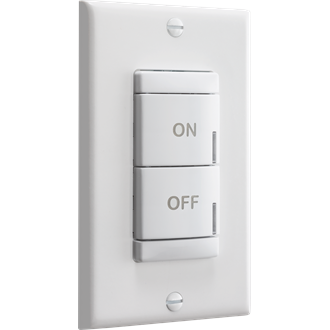

The nPODM Series WallPods are nLight-enabled toggle and/or dimming switches that provide a user with local control of a lighting zone. These single gang decorator style devices have soft-click buttons and have a green LED indicator for each button. WallPods communicate with other nLight devices via a CAT-5 cable that connects to one of its two RJ-45 connectors. A basic low voltage WallPod can work with an nLight power pack or line voltage sensor to provide toggle switch operation. WallPods with the DX dimming option have the added ability to adjust the level of any nLight controlled dimmable lighting.

For push-button scene control, see the nPODM 1S/2S/4S Series WallPods.
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Traditional Tactile Feel
Green LED per Button
1,2, or 4 Channel On/Off
1 or 2 Channel Dimming Control
Read More
Read Less
A+ Capable Yes
Control Device Type Dimming Switch, Tunable Color Switch
Mounting Type Surface
Networkable Control Networkable Control
Product Type Switch
Color Black, Gray, Ivory, Light Almond, Red, White
Finish Gloss
Voltage Low Voltage
Compliance Listing DLC Standard, ROHS
Regulatory Listing C-UL-US, UL
Series NPODM
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nPODM.pdf nLight nPODM Wall Switch Spec Sheet 2/24/2022 View
    SPEC SHEET nPODM-xS Form.pdf nLight nPODM Scene Selector Switch Spec Sheet 3/25/2020 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IN-11.3.pdf nLight nPODM Wall Switch Programming Instructions View
    Installation Instructions nPODM Mounting Instructions nLight nPODM Wall Switch Mounting Instructions View
    Technical Bulletins NGRAVE 2S DX.PDF nLight Wall Switch 2S DX NGRAVE Form 7/1/2022 View
    Technical Bulletins NGRAVE Form.pdf nLight Wall Switch NGRAVE Form 7/5/2022 View
    User Manual nTune Grayscale and Color Accent User Manual.pdf nLight nTune, Grayscale, and Color Accent User Manual View
    User Manual nTune Tunable White Programming Guide.pdf nTune Tunable White User Guide View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet Lighting Controls Device Cleaning.pdf Lighting Controls Device Cleaning Recommendations: SensorSwitch™, nLight®, and Fresco™ 1/12/2022 View
    Sell Sheet nLight nTune Sell Sheet.pdf nTune Sell Sheet View
