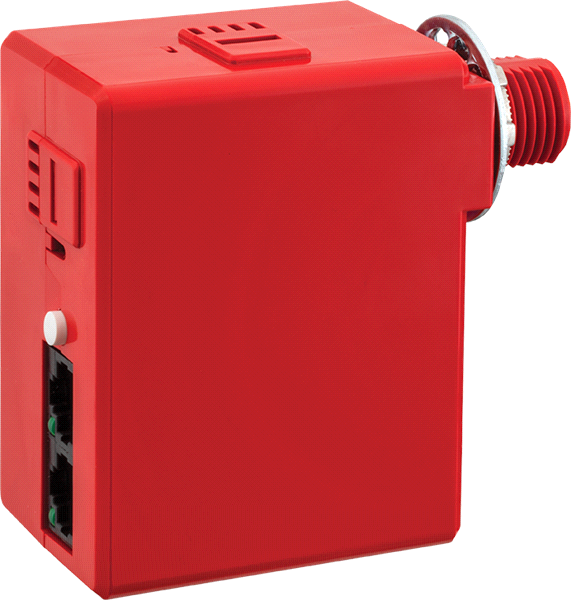

nPP16 IM

Current Monitoring Relay Pack

by nLight

  • DesignLights Consortium®
The nLight nPP16 IM Series power pack adds power monitoring to the standard nLight nPP16 Series power / relay pack. Each unit has two basic responsibilities: providing system bus power and switching a lighting load. To provide system power, the power pack transforms Class 1 line voltage 120-277 VAC to Class 2 15 VDC. For switching a lighting load, an internal 16A latching relay is used.

The power pack's two RJ-45 connectors make control wiring with standard CAT-5 cabling easy and clean. For simplifying installation, power packs have an elongated chase nipple that allows them to be attached either directly through a 1/2 inch knockout into a junction box, or inside an adjacent box for meeting specific local code requirements in ceiling plenums.

Communicates w/ nLight Network
Self-Contained Relay Switches Line Voltage Load
Measures and Reports Power through Relay
Measures Nominal 120 or 277 VAC
Supplies Bus Power over CAT-5
Remotely Configurable/Upgradeable
Push-Button Programmable
Configurable Relay Logic
Green LED Indicator
Extended Chase Nipple
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand nLight, Sensor Switch
    A+ Capable Yes
    Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses
    Color Red
    Control Device Type Lighting Relay
    Finish Gloss
    Mounting Type Unit to J Box
    Networkable Control Networkable Control
    Product Type Power Pack
    Series NPP16
    Voltage 120-277
    Compliance Listing DLC Standard
    Regulatory Listing C-UL-US
