nBRG 8

nLight Bridge - 8 Port

by nLight

  • DesignLights Consortium®

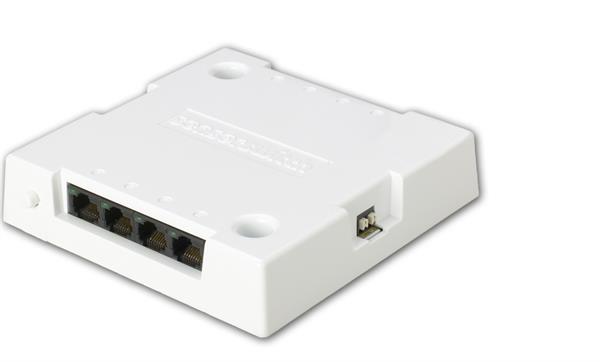

The nLight 8-Port Bridge increases the number of lighting control zones in an nLight system. This ability stems from the fact that each Bridge has 8 RJ-45 ports into which zones of daisy-chained nLight-enabled devices can connect. The Bridge also is an integral component of the communication backbone in an nLight network. Fundamentally, Bridges act as hubs by aggregating traffic from the connected downstream zones and placing it onto the backbone. They also act as routers by forwarding information from the backbone out to the applicable downstream zones. The Bridge's actual backbone link is formed by connecting to another Bridge or a Gateway via CAT-5 cabling through one of its RJ 45 ports. Finally, Bridges can combine system power from zones that are net contributors of power (i.e. those with downstream power packs and power supplies) and distribute it to zones that are net consumers of power (i.e. those with only sensors). Maximum power output per port is 40mA.
Communicates w/ nLight Network
Remotely Upgradeable
Push-Button Programmable
Green LED Indicators for each Port
Supports up to 128 Devices per Port
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand nLight
    A+ Capable Yes
    Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses
    Color White
    Control Device Type Interface Device
    Finish Gloss
    Mounting Type Surface, Unit to J Box
    Networkable Control Networkable Control
    Product Type System Controller
    Series NBRG
    Voltage 120, 347
    Compliance Listing DLC Standard
    Regulatory Listing C-UL-US, ROHS, UL
