NPP16

nPP16 ER

Emergency Relay Pack

by nLight

  • DesignLights Consortium®
Overview

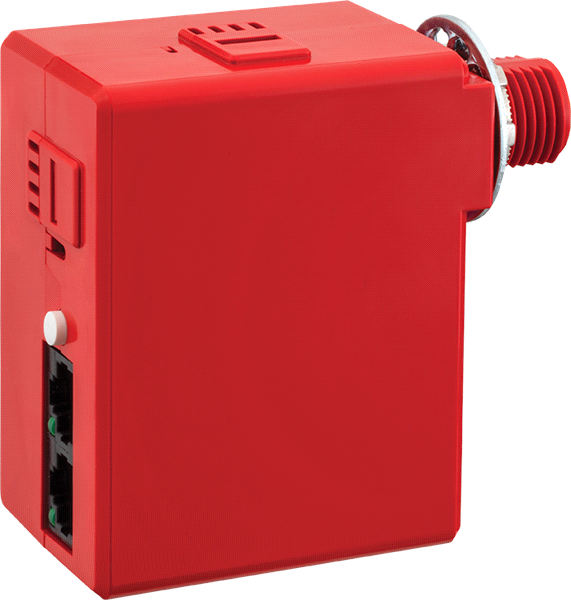

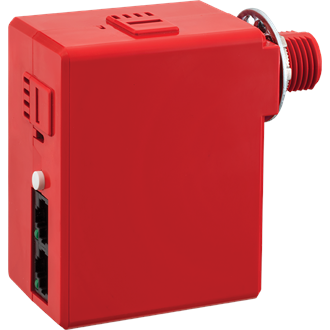

The nLight nPP16 ER Series relay pack is used to switch luminaires powered via an emergency circuit. Ideal for use along side a standard nPP16 relay pack that controls a zone's normal powered lighting, the nPP16 ER is designed to switch up to 16 Amps of lighting load.

The nPP16 ER's two RJ-45 connectors make control wiring with standard CAT-5 cabling easy and clean. An elongated chase nipple facilitates attachment directly to a junction box or fixture through a 1/2 inch~157; knockout. A push button and LEDs are also provided which allow users the ability to manually alter settings or test emergency operation.
Automatically Overrides Emergency Lights On Upon Normal Power Loss
Communicates w/ nLight Network
Remotely Configurable/Upgradeable
Self-Contained Relay Switches Emergency Lighting Load
Measures & Reports Current through Relay
Test/Programming Button
Green LED Indicator
Extended Chase Nipple
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand nLight, Sensor Switch
    A+ Capable Yes
    Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices & Banks, Religious, Retail, Sports and Recreation, Warehouses
    Color Red
    Control Device Type Lighting Relay
    Control Protocol 0-10V
    Finish Gloss
    Mounting Type Unit to J Box
    Networkable Control Networkable Control
    Product Type Power Pack
    Series NPP16
    Voltage 120, 347
    Compliance Listing DLC Standard
    Regulatory Listing C-UL-US
