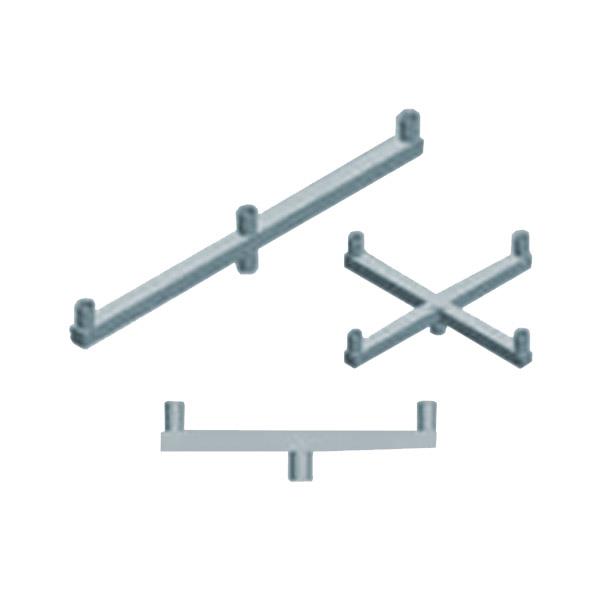

ARM & BKT Steel Vertical Arms

Non-Decorative Commercial Arms & Brackets
  • Overview
  • Specifications
Read More
Read Less
Product Type Arm
Arm Mounting Type Tenon
Mounting Type Post Top
Primary Material Steel
Architectural Style Utility
Series ARM88, ARM89, ARM91, ARM93, ARM94, ARM95, ARM96, BKT18, BKT19, BKT20, BKT24, BKT28, BKT29, BKT30, BKT33, BKT34

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ARM_BKT Vertical Arms.pdf ARM & BKT Steel Vertical Arms 11/15/2024 View

  • Photometry & Revit (BIM)

    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets Pole Arm Selection Guide.xlsx Arms & Brackets Selection Guide 1/12/2021

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD BKT-19.dwg 3D CAD DWG Steel bullhorn 2U bracket tall tenons 36IN wide spacing for use with vertical 8/5/2020
    Holophane DWGs ARM88.pdf ARM88 Steel bullhorn 2U bracket (2@180) 2-3/8in OD X 12in tall tn 36 inch spacing slip fits B04 4/18/2024 View
    Holophane DWGs ARM89.pdf ARM89 Steel bullhorn 3U bracket, 2- 3/8IN OD X 12IN tall tenons, 30IN spacing, for vert mnt fixture 4/18/2024 View
    Holophane DWGs ARM91.pdf ARM91 Steel bullhorn 3Y (3@120) 2-3/8 inch OD X 12 inch tall tenons slip fits B04 tenon 4/18/2024 View
    Holophane DWGs ARM93.pdf ARM93 Steel bullhorn 4 in line 2-3/8 inch OD X 12 inch tall tenons 30 inch spacing slip fits B04 tn 4/18/2024 View
    Holophane DWGs ARM94.pdf ARM94 Steel bullhorn 4 in line 2-3/8 inch OD X 12 inch tall tn 36 inch spacing slip fits B04 tn 4/18/2024 View
    Holophane DWGs ARM95.pdf ARM95 Steel bullhorn 4U (4@90), 2-3/8 inch OD X 12 inch tall tenons slip fits B04 tenon 4/18/2024 View
    Holophane DWGs ARM96.pdf ARM96 Steel bullhorn 4U (4@90) 2-3/8 inch OD X 12 inch tall tenons slip fits F06 tenon 4/18/2024 View
    Holophane DWGs BKT18.pdf BKT18 Steel bullhorn 2U bracket,2-3/8"ODX12"tall tn,36"space,for vert mt, 2" slip fit for B04 Tn 4/18/2024 View
    Holophane DWGs BKT19.pdf BKT19 Steel bullhorn 2U bracket, 2-3/8IN ODX 12IN tall tn,36IN wide spacing, use with vertical mt 4/18/2024 View
    Holophane DWGs BKT20.pdf BKT20 Steel bullhorn 3U bracket 2-3/8in OD X 12in tall tenons 30 inch wide spacing slip fits B04 tn 4/18/2024 View
    Holophane DWGs BKT24.pdf BKT24 Steel bullhorn 4 inline bracket, 2-3/8"ODX12"tall tn,30"space for vert mt, 2" slip fit B04 Tn 4/18/2024 View
    Holophane DWGs BKT28.pdf BKT28 Steel round sq bullhorn 2U brkt, 2-3/8IN OD X 4"tall tn,36IN space,vert mt fixt, 2.5IN C04 TN 4/18/2024 View
    Holophane DWGs BKT29.pdf BKT29 Steel round sq bullhorn 3U brkt(3@120),2-3/8IN OD X 4"tallX24"long tenon,vert mt ,2.5IN B04 TN 4/18/2024 View
    Holophane DWGs BKT30.pdf BKT30 Steel round square round bullhorn 4U bkt (4@90)2-3/8in ODX4 inch tallX24 inch long tn slip fit 4/18/2024 View
    Holophane DWGs BKT33.pdf BKT33 Steel round sq bullhorn,3inline brkt,2-3/8"ODX4"tall tnn,36INspace,vert mt,2.5" slipfit B04 TN 4/18/2024 View
    Holophane DWGs BKT34.pdf BKT34 Steel round sq bullhorn,4inline brkt,2-3/8"ODX4"tall tn,36IN space,vert mt,2.5" slipfit B04 TN 4/18/2024 View
