PHZ High Bay

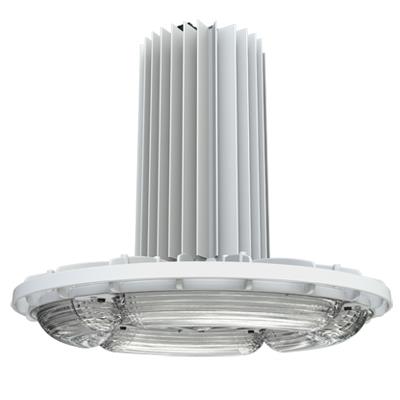

Phuzion™ LED Wet Location High Bay

By Holophane

    DLC Standard / Premium  CA Title 20
  • Overview
  • Specifications
The Phuzion™ LED luminaire takes high-bay lighting to new levels of lumen output and temperature tolerance. Combining the latest in LED technology with the legendary illuminating dynamics of Holophane's prismatic borosilicate glass, the Phuzion LED high bay delivers unparalleled performance and reliability. Lumen packages range from 12,000 to 60,000 lumens in a single luminaire. Up to 50% energy savings over traditional light sources with ambient Range: -40°F (-40°C) to 158°F (70°C). They are IP64 Rated. Available in tandem (PHZT), remote (RPHZ), or crane mount (PHZC). Ideal for industrial facilities, heavy manufacturing, convention centers, sports arenas, and renovation/retrofit. Also available with embedded nLight AIR® and the IOTA ETS Emergency Control Device.
Read More
Read Less
Light Source LED - Static
Lumens 12,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 35,000 LM, 40,000 LM, 45,000 LM, 50,000 LM, 60,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing CA Title 20, DLC Premium, DLC Standard
Environmental Listing Dry Location
Regulatory Listing cCSAus
Product Type High Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 277-480, 347, 347-480, 480, HVOLT, MVOLT, XVOLT
Mounting Type Pendant, Surface, Suspended
Mounting Location Ceiling
Primary Material Aluminum
Architectural Style Traditional
Series PHZ

Read More Read Less
