PHS High Bay

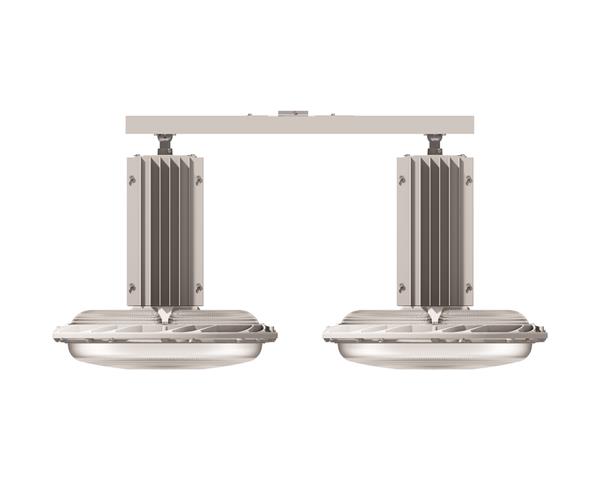

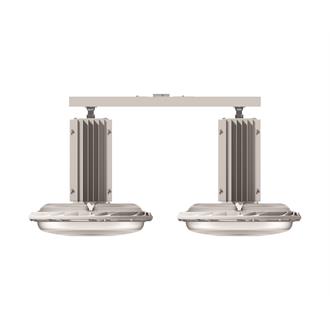

Phuzion™ LED High Bay with Uplight Single or Twin

By Holophane

    DLC Standard
  • Overview
  • Specifications

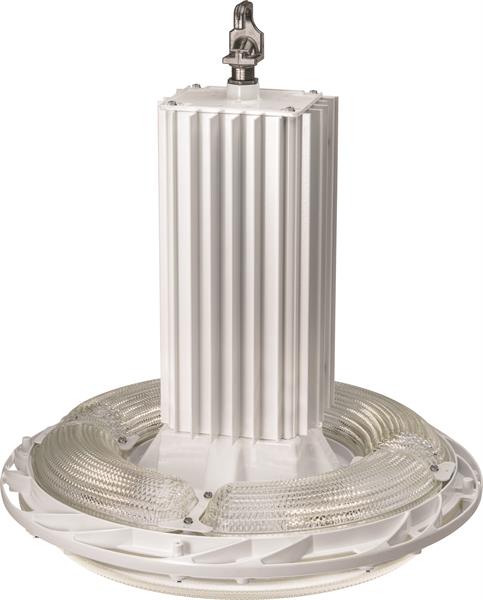

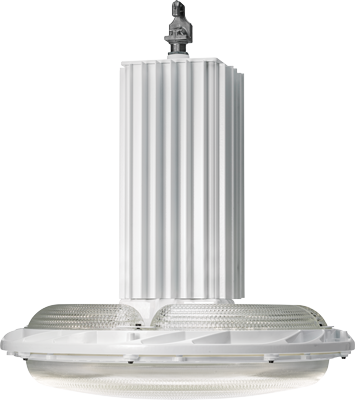

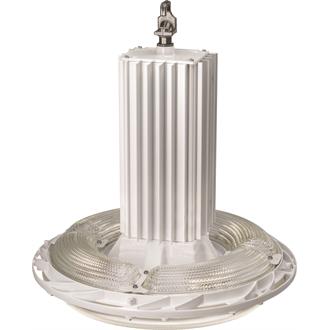

The Phuzion™ PHS LED high bay is designed to deliver intentional up-lighting, in addition to traditional down-lighting. With this design, it can reduce glare and visual contrast by essentially eliminating the cave-like atmosphere of high bay applications and creating unprecedented lighting uniformity for an open look and feel you can see. Its distinctive design ships standard with 86% down-light and 14% up-light. Independent dimming control of the up-light and down-light allows flexibility to proportionately alter this ratio. With the durability of the borosilicate glass, multiple lumen packages, versatile mounting and emergency battery back-up, the Phuzion™ PHS LED high bay is truly up, down and all around, one of a kind.
Read More
Read Less
Light Source LED - Static
Lumens 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 35,000 LM, 40,000 LM, 45,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Compliance Listing DLC Standard
Environmental Listing Damp Location, Dry Location
Regulatory Listing cCSAus
Product Type High Bay
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 347, 347-480, 480
Mounting Type Pendant
Mounting Location Ceiling
Primary Material Aluminum
Architectural Style Traditional
Series PHS

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PHS_ Phuzion LED High Bay with Uplight 1/10/2023 View
    SPEC SHEET PHST_ Phuzion Twin LED High Bay with Uplight 1/10/2023 View
    SPEC SHEET RPHS_ Phuzion Remote LED High Bay with Uplight 1/10/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IM-308 Twin Phuzion™ LED High Bay with Uplight (PHST) Installation Instructions View
    Installation Instructions IM-369-F Phuzion™ LED High Bay with Uplight (PHS) Installation Instructions 1/10/2022 View
    Installation Instructions IM-387-B Remote Phuzion™ LED High Bay with Uplight (RPHS) Installation Instructions 8/25/2022 View
    Installation Instructions IN-48-H QDH - Quick Disconnect Hanger 2/22/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet PHS Replacement Parts PHS Replacement Drivers, Lenses, SPD, and Misc. Parts for GEN1 and Current Generation. 12/12/2022 View
    Replacement Part Spec Sheet PHST Replacement Parts PHST Replacement Drivers, Lenses, SPD, and Miscellaneous Parts for GEN1 and Current Generation. 12/12/2022 View
    Replacement Part Spec Sheet RPHS Replacement Parts RPHS Replacement Drivers, Lenses, SPD, and Miscellaneous Parts for GEN1 and Current Generation. 12/12/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures HL_659289.03POD.pdf Holophane Retail Brochure 5/11/2021 View
    Brochures Holophane Industrial Product Portfolio Selection of High Bays, Low Bays, Demanding and Hazardous Location products 9/26/2022 View
    Brochures PHS Brochure Phuzion LED High Bay with Uplight View
