Quick-Mount Fitter I

ESPL2 Pendant

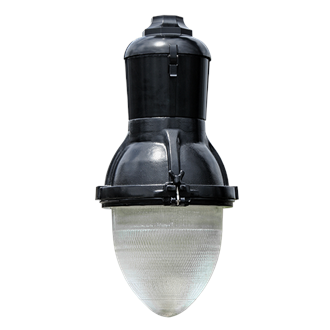

Esplanade® Teardrop Pedestrian Roadway LED Pendant

By Holophane

    Buy America(n) Option Available
  • Overview
  • Specifications
Outdoor pendant LED lighting for city streets, parking lots, campuses, commercial developments, plazas, historic districts, village squares, residential areas, parks, walkways, boulevards, and roadways. Styled to replicate the tear drop luminaires that illuminated boulevards during the first half of the century, this ¾ scale luminaire series offers a complement to the original Tear Drop series where lower mounting heights and lower wattages are appropriate. The following are product attributes for the Esplanade Pedestrian Tear Drop LED Series luminaires: Classic, elegant appearance; pedestrian scale, boulevard and area lighting product; permanent, durable borosilicate glass refractor design; prismatic light control; two glass optical styles; asymmetric and symmetric lighting distributions; four LED lumen packages; ease of maintenance/installation; decorative skirting options
Read More
Read Less
Light Source LED - Static
Lumens 2500 LM, 3000 LM, 3500 LM, 4000 LM, 4500 LM, 5000 LM, 5500 LM, 6000 LM, 6500 LM, 7000 LM, 7500 LM, 8000 LM, 8500 LM, 9000 LM, 9500 LM, 10,000 LM, 11,000 LM, 11,400 LM, 11,500 LM, 12,500 LM, 13,500 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing BAA
Environmental Listing Wet Location
Regulatory Listing cCSAus, cCSAus Component
Product Type Pendant
Dimming Protocol 0-10V
Voltage Rating 120-277, 347-480
Mounting Type Pendant
Primary Material Aluminum
Architectural Style Historical
Series ESPL2, ESPLRETRO2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ESPL2_.pdf ESPL2 Esplanade® LED Pedestrian Series 1/11/2023 View
    SPEC SHEET ESPLRETRO2_.pdf ESPLRETRO2 Esplandade Pedestrian LED Retrofit 1/11/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_HLP_ESLP2_30K_70CRI.pdf SpectralDataSheet_HLP_ESLP2_30K_70CRI 12/12/2022 View
    Spectral Data Sheet SpectralDataSheet_HLP_ESLP2_40K_70CRI.pdf SpectralDataSheet_HLP_ESLP2_40K_70CRI 12/12/2022 View
    Spectral Data Sheet SpectralDataSheet_HLP_ESLP2_50K_70CRI.pdf SpectralDataSheet_HLP_ESLP2_50K_70CRI 12/12/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD ESPL2 S.DWG 2D DWG ESPL2 S Dimensions 2/17/2021
    CAD ESPL2 T.DWG 2D DWG ESPL2 T Dimensions 2/17/2021
    Installation Instructions IM-351-A.pdf Esplandade Pedestrian LED Retrofit 12/28/2020 View
    Installation Instructions Pedestrian Tear Drop LED Installation Pedestrian Tear Drop LED Installation View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Tear Drop LED Family Brochure.pdf Tear Drop LED Family Brochure 1/12/2022 View
