Product Image

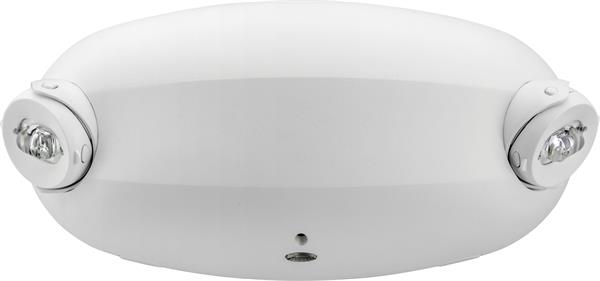

CZQ2L W Front

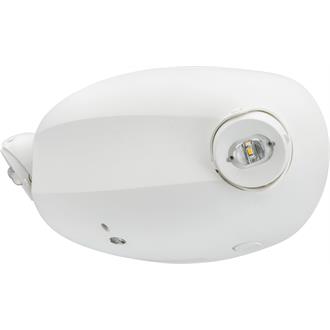

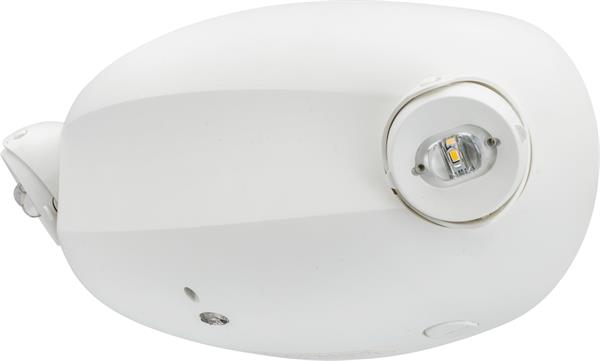

CZQ2L W Side

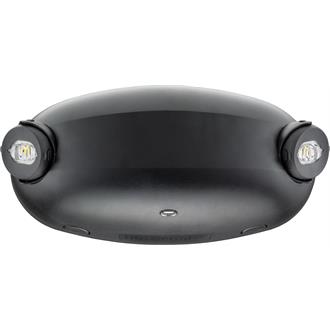

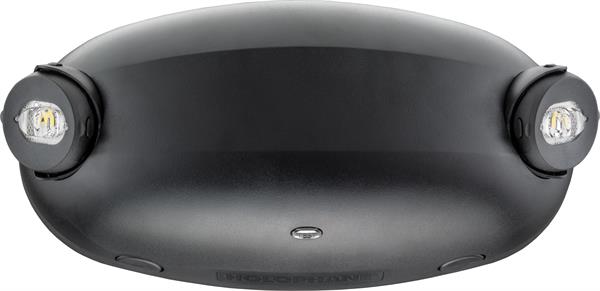

CZQ2L B

CZQ2L Emergency Light

Cortez™ LED Adjustable Optics 220 Lumens Emergency Light

By Holophane

    CA Title 20Buy America(n)
  • Overview
  • Specifications
The CZQ2L from Holophane® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination when there is a loss of power. Unique track and swivel arrangement permits full range of direction for lamp head aiming for wall and ceiling mount applications (mounting heights range from 7.5' to 10'), making installation easy while maintaining the maximum path of egress coverage. The linear pattern provides wide uniform distributions that deliver broad spacing up to 33' and low max to min ratios that far exceed code requirements.

The CZQ2L optional Lithium platform comes standard with universal input voltage (120-347 Volt). The upgraded Lithium Iron Phosphate battery provides a 3 hour run-time or 2.4 watts of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.
Read More
Read Less
Light Source LED - Static
Lumens 220 LM
CCT / LED Color 5000 K
CRI 70
Compliance Listing BAA, CA Title 20
Environmental Listing Damp Location
Regulatory Listing C-UL-US, NFPA 101, NFPA 70, NOM, UL
Product Type Emergency Lighting Unit
Voltage Rating 120-347, 120/277, 120/347, 220-240
Mounting Type Surface
Mounting Location Ceiling, Wall
Primary Material Thermoplastic
Series CZQ2L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET CZQ2L.pdf CZQ2L LED emergency light 3/9/2022 View
    SPEC SHEET CZQRE.pdf CZQRE, LED Thermoplastic Emergency Remote 2/9/2022 View
    SPEC SHEET CZQRW.pdf CZQRW, LED Wet Location Emergency Remote 12/15/2021 View
    SPEC SHEET CZWPVS.pdf CZWPVS, Wet Protection Vandal Shield (for CZQ2L, CZQ4L, CZQ6L series only) 4/14/2020 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00026-202_Install Instr_CZQ2L_EN-SP.pdf CZQ2L_LTP UVOLT, installation instruction sheet (English_Spanish) 4/14/2020 View
    Installation Instructions 912-00026-204_Install Instr_CZQ2L_EN-FR.pdf CZQ2L_LTP UVOLT installation instruction sheet (English_French) 4/14/2020 View
    Installation Instructions 912-00026-206_Install Instr_CZQ2L_EN-SP_Nicad non-SDRT.pdf CZQ2L_Nicad, non-SDRT installation instruction sheet (English_Spanish) 4/14/2020 View
    Installation Instructions 912-00026-208_Install Instr_CZQ2L_EN-FR_Nicad non-SDRT.pdf CZQ2L_Nicad, non-SDRT installation instruction sheet (English_French) 4/14/2020 View
    Installation Instructions 912-00070-002_Rev A.pdf RTKITHLP remote tester kit installation instruction sheet 12/5/2019 View
    Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V-1500mAh-3S1P.pdf SDS sheet for ELB 9P615LTP, Lithium Iron Phosphate_9.6V 1.5AH 3/16/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Holophane Life Safety Portfolio Holophane Life Safety Portfolio 12/27/2021 View
    FAQ Cortez CZQxL FAQ Cortez CZQxL FAQ 4/9/2020 View
    Sell Sheet Cortez CZQ2L Sell Sheet Cortez CZQ2L Sell Sheet 4/9/2020 View
    White Paper Non Title 20 Life Safety Flyer Non Title 20 Life Safety Flyer 2/24/2021 View
