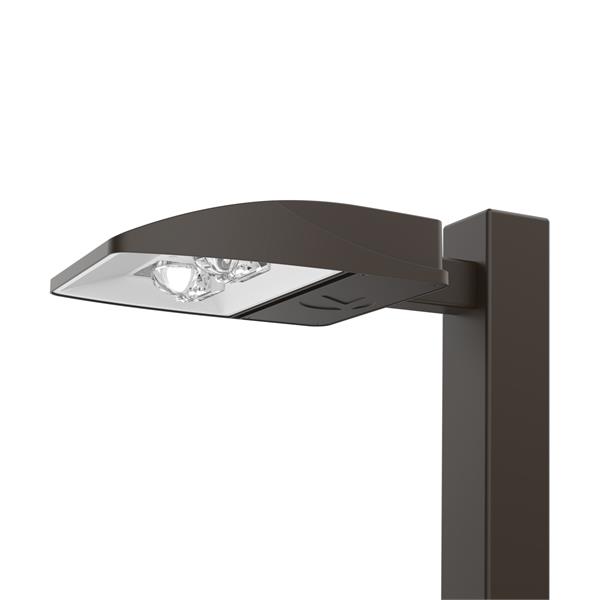

ESX1_ Full 2 Image.jpg

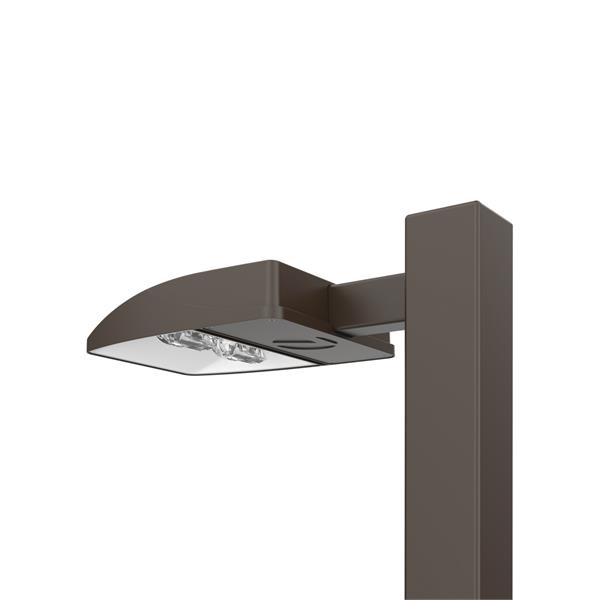

ESX1_Back Image.jpg

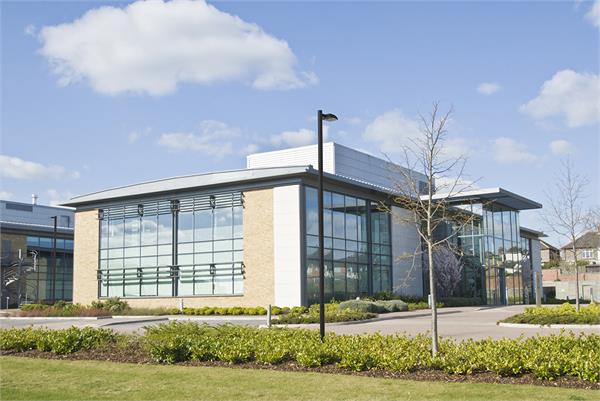

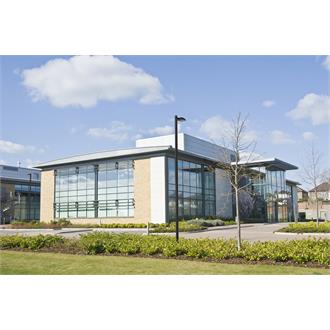

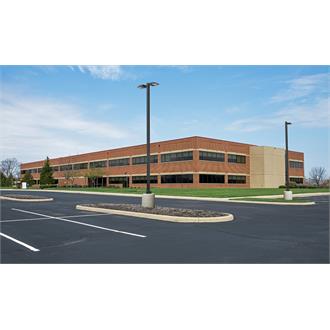

ESX1 Application Image_01.jpg
ESX1 Application Image_02.jpg
ESX1 LED Area Luminaire

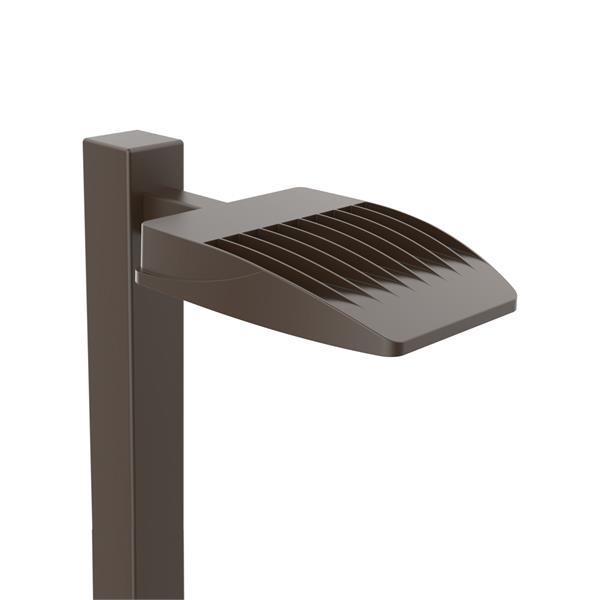

ESX1_Top Image.jpg

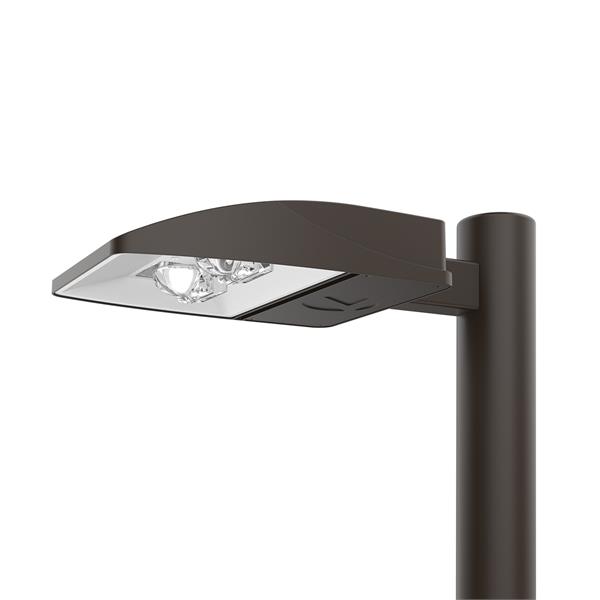

ESX1_Round Pole_Image.jpg

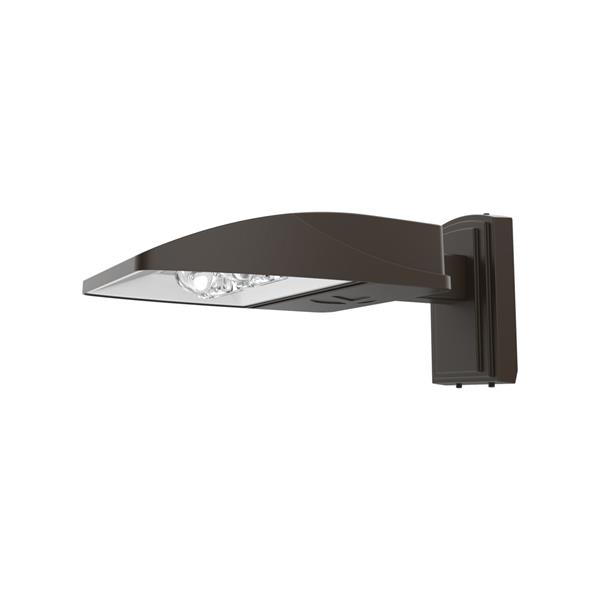

ESX1_Wall Bracket Image.jpg

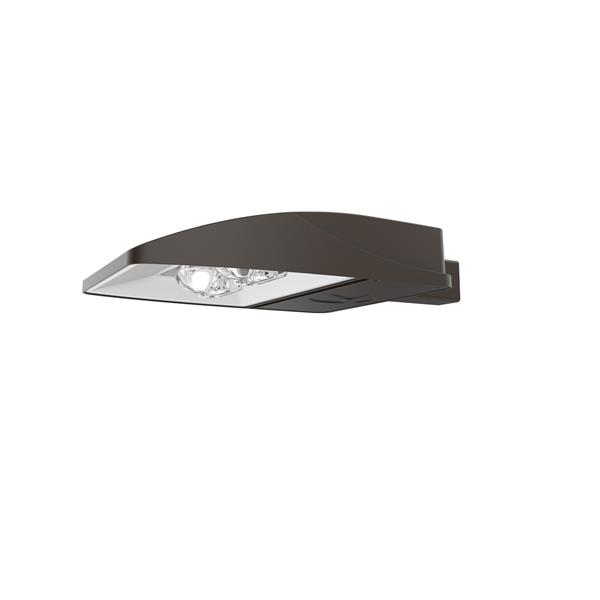

ESX1_Non Mounted Image.jpg
ESX1 LED spin.gif
ESX LED Installation

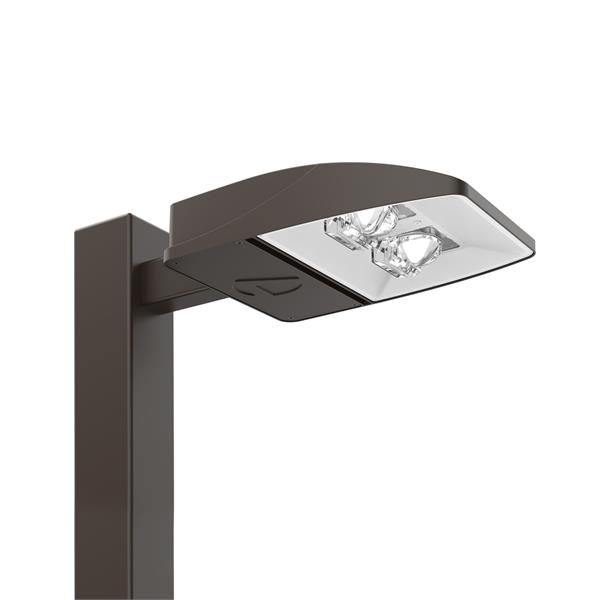

ESX1 LED Area Luminaire

Two ALO Packages – 8,000 and 14,000 Lumens or 21,000 and 25,000 Lumens

By Lithonia Lighting

    DLC Premium
  • Overview
  • Specifications
When your project calls for low initial cost and high energy savings, the Lithonia Lighting® ESX1 LED area luminaire delivers. ESX1 is ideal for one-for-one replacement of HID area lighting and provides up to 76% energy savings, long service life and fast payback.

The ESX1 delivers 8,000 to 25,000 lumens allowing it to replace 150W to 400W HID luminaires. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs.

All luminaires feature a reversible arm that allows for mounting on both round and square poles. Eight configurations of ESX1 luminaires are stocked in Acuity Brands distribution centers. The ESX1 offers a complete area lighting package and provides the combination of best product value, best price, and best delivery.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 8000 LM, 14,000 LM, 21,000 LM, 25,000 LM
CCT / LED Color 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing DLC Premium, Nighttime Friendly
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 100, 200
Voltage Rating 120-277, 347-480
Color Bronze
Mounting Type Arm Mount, Surface
Series ESX1

Read More Read Less
