Emergency Shunt Relay

Emergency Shunt Relay

by Lighting Controls & Design

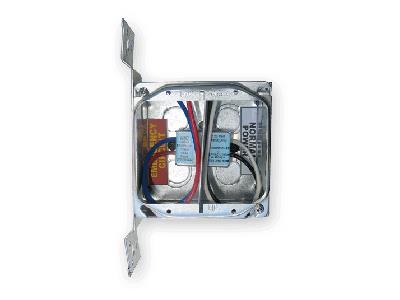

Normally-closed electrically-held relay to be wired in parallel with a wall switch. Manually controlled emergency lighting will be automatically shunted on during a power outage.The Emergency Shunt Relay comes in a two-gang junction box with a voltage-separating barrier and is shipped with a plaster ring separating normal and emergency power. The compact size allows wall switches to be mounted directly on the junction box.
Manual control of emergency lighting is safely accomplished
  • Not wattage-dependent, ideal for wall dimmers
  • Optional enclosure will hold up to eight shunt relays for feed-through dimming panels
  • ETL listed to UL 924
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Application Type Education|Government|Healthcare|Hospitality|Manufacturing|Offices & Banks|Religious|Residential|Retail|Sports and Recreation|Warehouses
    Brand Lighting Controls & Design
    Environment Indoor
    Listings Not Applicable
    Mounting Type Semi-recessed
    Product Type Relay
    Series GR2001
