IOTA ILB CP18 HE CW
Dimensions - ILB CP18 HE CW. Electronics Enclosure - Length: 9.4 in, Width: 2.2 in, Height: 1.05 in, Mounting Center 8.9 in. 2LA Dual Battery Configuration (x2) - Length: 7 in, Width: 1.38 in, Height: 2.6 in. 1LA Single Battery Configuration - Length: 3.54 in, Width: 2.76 in, Height: 4.21 in

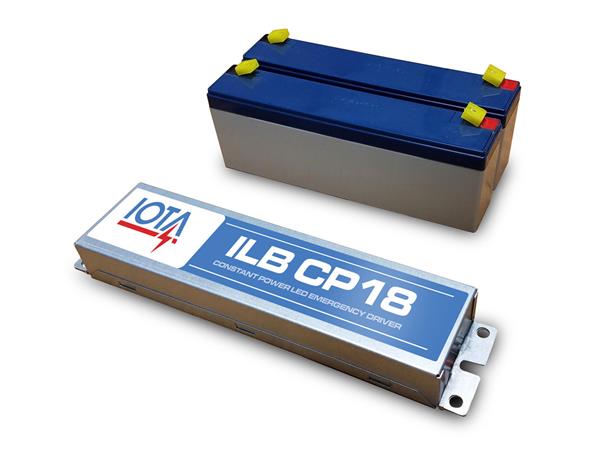

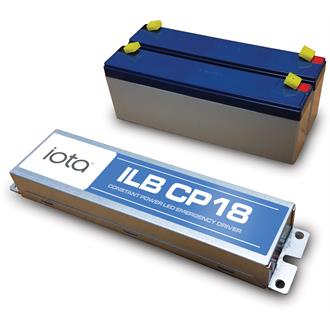

ILB CP18 HE CW Emergency LED Driver

18 Watt Constant Power Emergency LED Driver for Cold Weather and IP67 Applications

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILB CP18 HE CW from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP18 HE CW switches power from the normal LED driver to operate the LEDs in the emergency mode for 90 minutes. The unit includes a charger and converter circuit in a reduced-profile housing and a separate sealed lead acid battery component.
LED Operation
  • 18 Watts Constant Power
  • 20-58 VDC Nominal Output
Product Advantages
  • Auto-Sensing Class 2 Output
    Auto-adjusting 20-58VDC output range accommodates a wide range of Class 2 forward voltage LED designs
  • Constant Power Performance
    Constant wattage delivery maintains illumination for the full emergency runtime with no degradation
  • Extended Temperature Performance
    -20° to 60°C ambient temperature performance is ideal for outdoor paths of egress and freezing environments.
Features
  • UL 1310 Certified, Output Class 2 Compliant
  • Circuitry enclosed in galvanized steel housing
  • Includes single-piece IP67 rated test switch and charge indicator accessory kit
  • Maintenance-free, high temperature sealed lead acid battery designed for long life
  • For use with switched or unswitched fixtures
  • 3-year warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in damp location and IP67 rated enclosed and gasketed luminaires
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 20-58 VDC
Output Power 18 Watts
Max. Operating Temp. 60
Min. Operating Temp. -20
Battery Run Time 90 min
Battery Chemistry Type Lead Acid
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location, IP67
Series ILB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILB CP18 HE CW Specifications Specification Sheet for the ILB CP18 HE CW 6/3/2022 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ILB CP18 HE CW Manual Installation Manual for the ILB CP18 HE CW (1LA and 2LA models) 6/3/2020 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram 1LA - Single Battery Configuration PDF File - Typical installation for ILB CP18 1LA (Single Battery) models 6/3/2020 View
    Wiring Diagram 1LA - Single Battery Configuration DWG File - Typical installation for ILB CP18 1LA (Single Battery) models 6/3/2020
    Wiring Diagram 2LA - Dual Battery Configuration DWG File - Typical installation for ILB CP18 2LA (Dual Battery) models 6/26/2020
    Wiring Diagram 2LA - Dual Battery Configuration PDF File - Typical installation for ILB CP18 2LA (Dual Battery) models 6/26/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures IOTA HE Products for California Title 20 IOTA Emergency Lighting Solutions Certified in the Title 20 Appliance Efficiency Database 7/21/2022 View
    Sell Sheet Product Spotlight: ILB CP18 A quick reference of the advantages and features of the IOTA ILB CP18 HE CW 6/3/2020 View
