IC4ALFW Housing

FireWall™ 4in LED Fire-Rated Internally Adjustable New Construction Housing

By Juno

    Energy Star®CA Title 24/JA8
  • Overview
  • Specifications

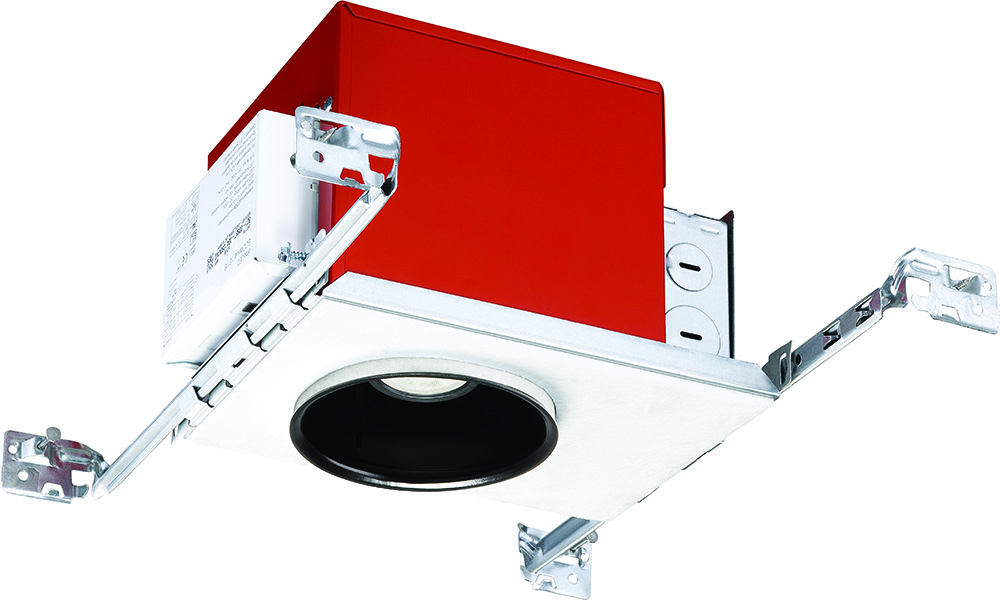

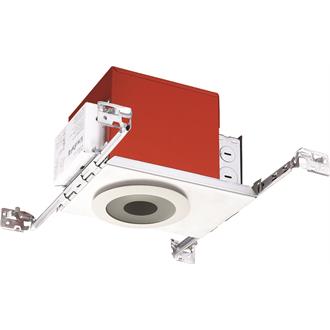

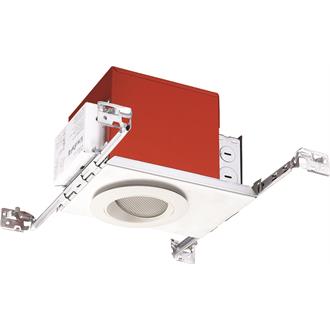

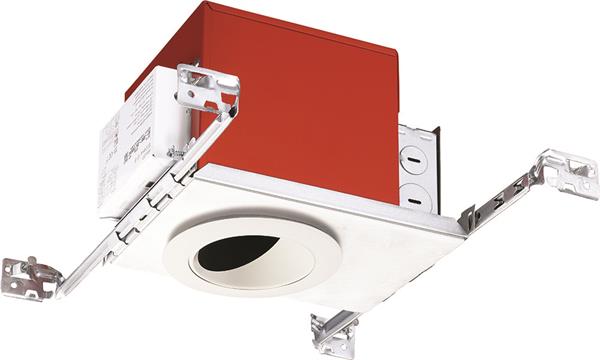

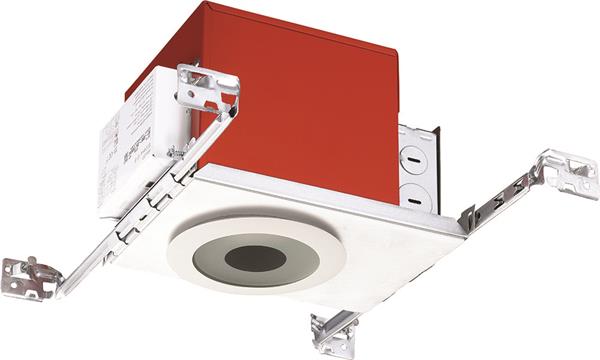

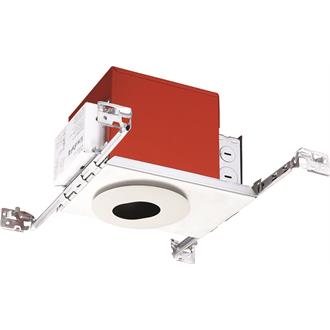

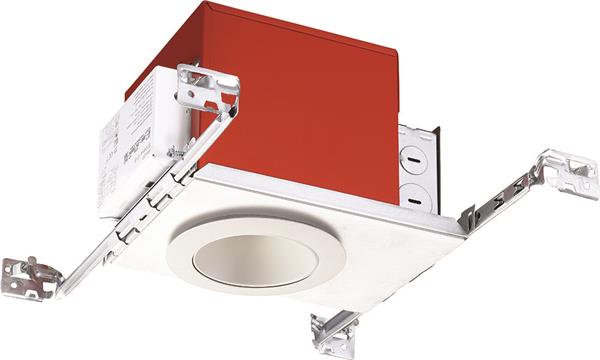

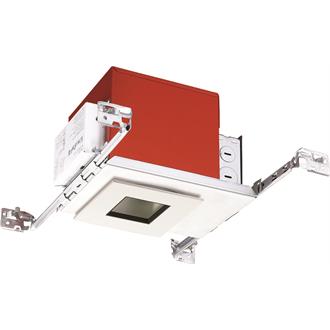

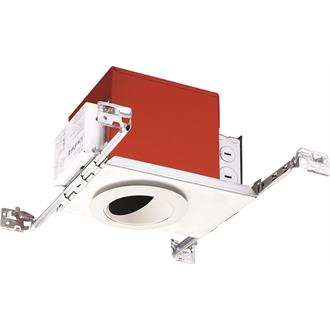

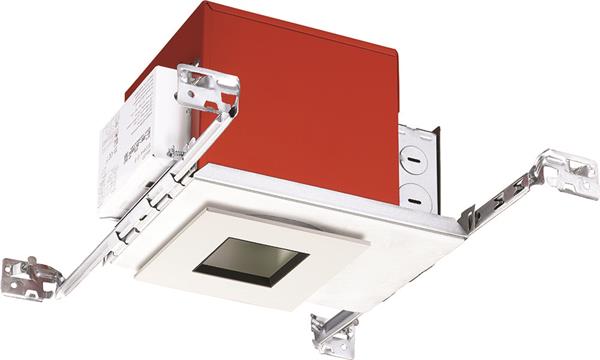

The Juno® IC4ALFW FireWall™ 4-inch Fire-Rated internally adjustable downlight caters to a wide range of application possibilities with just a change out of the trims. The new construction housing features an innovative, patent pending mechanical design stringently tested to conform to UL263 and ASTM STD E119 to provide protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hours. Offering internal adjustability of up to 35° vertical and 360° rotation using the patent pending adjustable light engine modules, light can be directed where needed for downlighting or accent lighting applications. Includes versatile collection of round and square trims to address the needs of modern architectural designs. The IC-rated fixture’s shallow housing can fit in a 2 x 6 construction and can be completely covered with insulation. The fixture is Air-Loc® sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs. ENERGY STAR Qualified and certified to meet the high efficacy requirements of California T24.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location, IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Color Unfinished
Mounting Type Recessed
Voltage Rating 120, 120-277
Series IC4ALFW

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET IC4ALFW.pdf Juno 4" Firewall New Construction Internally Adjustable LED Downlight 6/26/2020 View
    SPEC SHEET JUNOICLED-DIM.pdf Juno 4", 5" and 6" LED Downlight Dimmer Compatibility 3/8/2022 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P4746_ARTWORK 4” Fire-Rated Internally Adjustable LED Downlight New Construction 6/24/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet IC4ALFW Repair Kit List.pdf IC4ALFW Driver and Light Engine Repair Kit 3/31/2022 View
  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures JUN_9000.02_Firewall_Brochure_0721_Web.pdf Juno FireWall Brochure 9/8/2020 View
