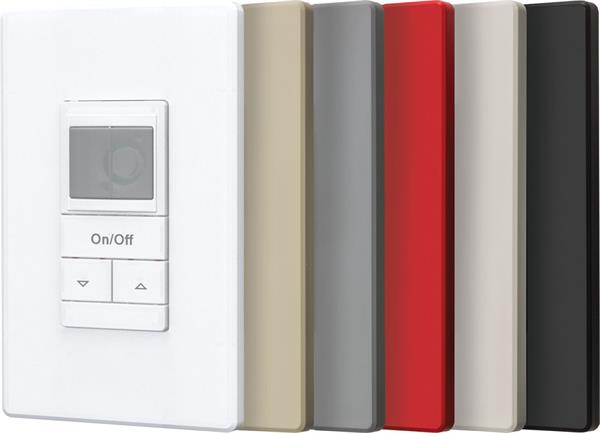

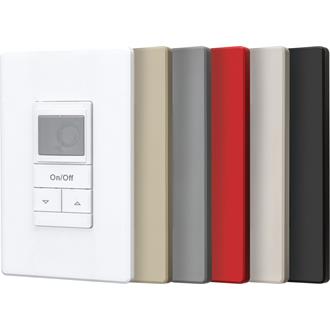

WSXA D_All Colors.jpg

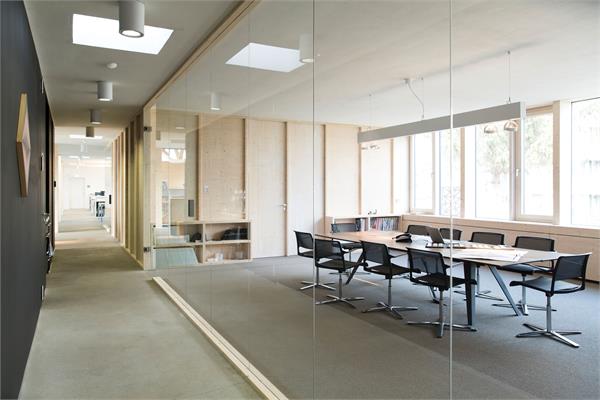

SensorSwitch WSXA Series.jpg

WSXA Series

Wall Switch Sensor with Occupancy Detection and Daylighting

By SensorSwitch

    CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
The SensorSwitch™ WSXA Series offers all the benefits of the WSX Series along with improved functionality and new aesthetics. The cost-effective multi-way (MWO) solution allows you to control fixtures from up to 9 different locations in a room!

The WSXA Series is ideal for commercial indoor spaces with multiple entryways that require small motion detection up to 20 feet such as conference rooms, long hallways, restrooms and breakrooms. Compatible with the new SSW Series of sealed screwless wall plates, designed to protect the device from liquid intrusion.


Features:
  • Connect up to 9 devices with neutral wiring or up to 2 devices without neutral wiring on a single traveler
  • Wall switches can be spaced up to 250 feet apart
  • Compatible with 0-10V dimming luminaries
  • Small motion detection up to 20ft (6.10m)
  • Programmable with SensorSwitch VLP Mobile App or traditional push button
  • Passive Dual Technology (PDT)
  • Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires
  • Integrated photocell with Adaptive Daylight Harvesting (ADH)
  • Convertible Neutral to Ground - accommodates powering over ground or neutral connection in one device
  • Functions with or without neutral connection
  • Self-grounding mounting strap
  • Meets NEC 2017 Section 404.2C neutral requirements (no current leakage to ground when connected to neutral)
  • Aids in IECC and ASHRAE code compliance
Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Surface
Control Protocol 0-10V
Product Type Switch
Color White
Finish Matte
Voltage Rating 347
Compliance Listing BAA, CA Title 24, ROHS
Environmental Listing High Humidity
Regulatory Listing C-UL-US, cUL
Series WSXA
Application Type Behavioral Health, Education, Government, Healthcare, Hospitality, House of Worship, Offices & Banks, Retail, Sports and Recreation

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WSXA BAA_SERIES.pdf WSXA BAA SERIES. Wall Switch Sensor with Occupancy Detection and Daylighting 4/11/2023 View
    SPEC SHEET WSXA-SERIES.pdf WSXA Wall Switch Sensor with Occupancy Detection and Daylighting 5/8/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions WSXA JOT Installation Instruction Sheet.pdf WSXA JOT Wireless Wall Occupancy Switch Sensor Installation & Instruction Sheet.pdf 7/12/2022 View
    Installation Instructions wsxa mwo_installation instructions_071420.pdf WSXA MWO Multi Way Wall Switch Occupancy Sensor installation & instructions_071420.pdf 12/7/2022 View
    Installation Instructions WSXA-2P-InstructionSheet_10_19_22.pdf WSXA-2P-InstructionSheet.pdf 12/7/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ Multi-Way (MWO) FAQ: SPODMRA & WSXA Multi-Way (MWO) FAQ for SPODMRA & WSXA Series 11/15/2021 View
    Sell Sheet Sensor Switch Quick Recommendation Guide Sensor Switch Quick Recommendation Guide 3/13/2023 View
    Sell Sheet SensorSwitch BAA Flyer SensorSwitch™ Buy America(n) (BAA) product flyer 1/4/2023 View
    Sell Sheet SensorSwitch WSXA Sell Sheet SensorSwitch WSXA Sell Sheet 9/3/2020 View
