IBL

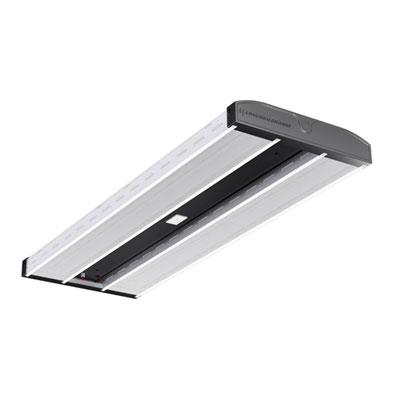

I-BEAM® IBL LED High Bay

By Lithonia Lighting

    DLC StandardBuy America(n) Option Available
  • Overview
  • Specifications

The I-BEAM IBL LED luminaire represents the best of our LED technologies and our most popular high bay product. The result is a high-performance, quality, configurable LED luminaire that is an ideal one-for-one replacement of conventional high bay systems such as HID and fluorescent. Applications include warehousing, light manufacturing and other large indoor spaces with mounting heights up to 60' and ambient temperatures up to 131°F (55°C).

Increase your R.O.I. with controls!
The IBL LED is available with integrated controls and sensor options (occupancy, photo & dimming) to reduce energy costs and help extend the life of the fixture.


Large indoor spaces with mounting heights up to 60' and ambient temperatures up to 131°F (55°C).

Installation
Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint or single (pendant) monopoint. Surface mounting is not recommended without optional surface mounting bracket. To maintain high ambient listing, fixture should be mounted at a minimum plenum height of 24".

Warranty
Five-year limited warranty. Complete warranty terms located at Customer Resources: Terms and Conditions.

Read More
Read Less
Shape Rectangular
Light Source Fluorescent, LED - Static
Lumens 12,000 LM, 15,000 LM, 24,000 LM, 30,000 LM, 48,000 LM, 60,000 LM
CCT / LED Color 3500 K, 4000 K, 5000 K
CRI 70, 80, 85
Product Type High Bay
Compliance Listing BAA, DLC Standard
Environmental Listing Dry Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 100, 103, 122, 125, 126, 128, 192, 197, 198, 200, 241, 245, 247, 248, 388, 394, 396, 400, 471, 485, 489, 95, 98
Voltage Rating 120, 120-277, 208, 220, 230, 240, 277, 347, 347-480, 480
Color Black, Bronze, Gray, Silver, White
Mounting Type Suspended
Series IBH, IBL

Read More Read Less
