WPD

Phase Dimmer Switch

By SensorSwitch

    CA Title 24/JA8
  • Overview
  • Specifications

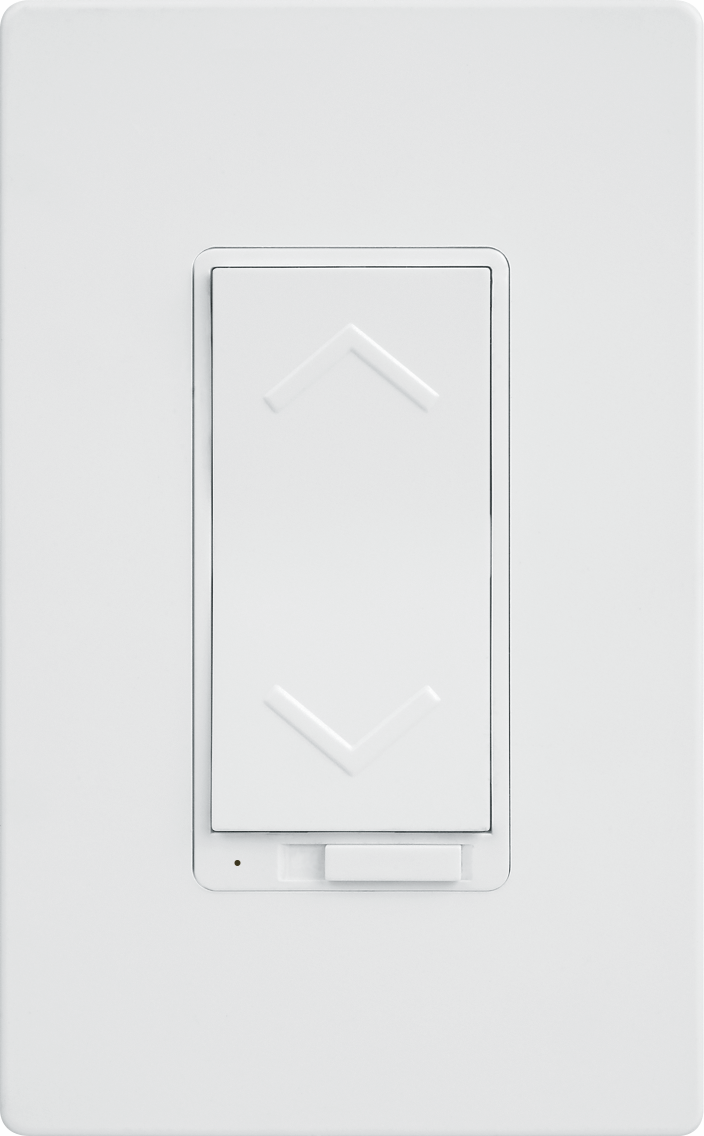

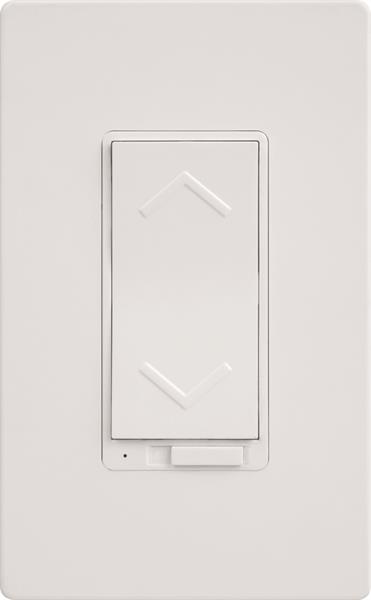

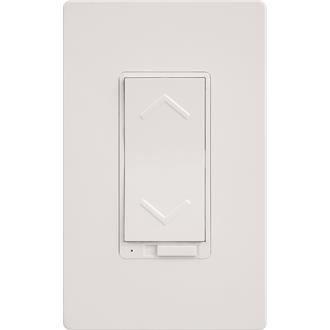

The SensorSwitch WPD Forward-Phase Dimmer Switch is a commercial- and residential-grade paddle dimmer that works with most dimmable incandescent, LED, CFL, ELV, and MLV lamp fixtures. Easy configuration allows the user or installer to effortlessly develop energy saving strategies by setting high and low brightness levels or returning to its default state when desired.

This UL 1472 listed and NEMA SSL 7A certified solution accepts 120VAC line voltage from a single device and includes a sliding air-gap switch to disconnect power while replacing bulbs. The WPD also works with mechanical switches for 3-way wiring.

Features:
  • Perfect replacement for regular wall on/off and dimming control of most dimmable incandescent, LED, CFL, ELV, and MLV lamp fixtures
  • Program high and low dimming range. Fixtures illuminate according to previously adjusted light levels
  • Use with single-pole or 3-way control with a regular on/off mechanical switch (sold separately)
  • UL 1472 listed and NEMA SSL 7A certified; air-gap switch feature meets UL requirements and disconnects power from load locally
  • Includes a screwless wall plate and is available in white and ivory
Read More
Read Less
Control Device Type Dimming Switch
Mounting Type Surface
Control Protocol Forward Phase
Product Type Switch
Color Ivory
Finish Matte
Voltage Rating 120
Compliance Listing CA Title 24
Regulatory Listing UL
Series WPD
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WPD.pdf WPD Specification Sheet 1/27/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions WPD Installation Instructions_041520.pdf Installation Instruction Sheets 3/16/2022 View
