Product Image

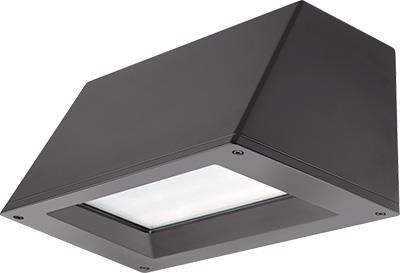

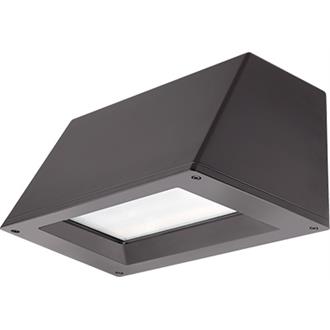

WST LED.jpg
WST

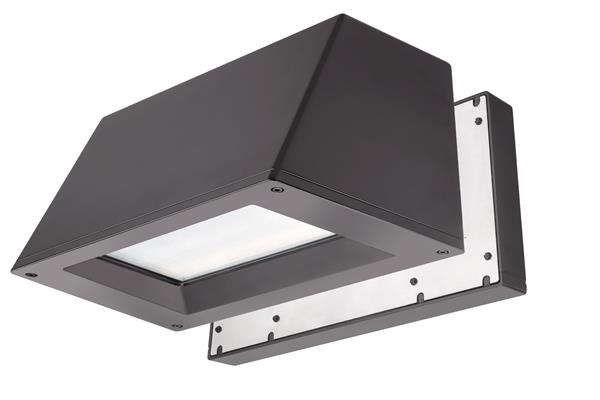

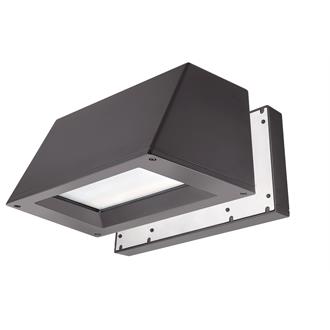

WST LED Premium Backbox.jpg

WST-LED

Outdoor Architectural LED Wall Sconce – Trapezoid

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications
Whether you are trying to meet specification, code, or seeking a building mount solution with the right options, the WST LED is your go-to solution delivering a visually comfortable lighting experience. The WST LED has two optics and 1,500 to 6,600 lumens, combined with a comprehensive variety of battery backup, controls, and other options to meet your specification or building code. Coupled with nLight® AIR wireless controls, the WST LED provides enhanced end-user experiences and unmatched energy savings.
Read More
Read Less
Light Source LED - Static
Lumens 1000 LM, 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Product Type Wallpack
Compliance Listing CA Title 20
Regulatory Listing CSA
Fixture Wattage 12, 14, 16, 25, 26, 27, 30, 50, 53, 56
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Beige, Black, Bronze, Silver, White
Mounting Type Surface
Series WST

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WST LED Wall Mount Luminaire WST LED Wall Mount Luminaire 1/20/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Arch Sconce Accessories Installation Instructions Installation Instructions for MRW, WSQ, WSR, WST Accessories View
    Installation Instructions INST SHT WST LED 2016 IM-401.pdf WST LED 2016 INST SHT REV E IM-401 12/13/2022 View
    Installation Instructions INST SHT WST LED 2016 ACCESSORIES IM-406 REV B PSL11 6-24-16.pdf Instruction Sheet WST LED Accessories View
    Installation Instructions INST SHT WST LED 2016 PBBW IM-405 REV B PSL11 6-24-16.pdf Instruction Sheet WST LED Premium Backbox View
    User Manual Outdoor Controls Technical Guide.pdf Outdoor Controls Technical Guide View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet WST Replacement and Repair Kits template.pdf WST Replacement and Repair Kits 6/29/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures nLightAIR-Outdoor-brochure-0219.pdf Wireless controls guide for outdoor luminaires 5/16/2019 View
    Brochures Outdoor Buy American Brochure Buy American Outdoor Portfolio 2/7/2022 View
    Product Presentation WST LED Architectural Sconce Customer Training Presentation.pdf WST LED Architectural Sconce Customer Training Presentation View
    Sell Sheet WST LED Sell Sheet.pdf WST LED Sell Sheet View
