VPF8 Linear, Single Mount

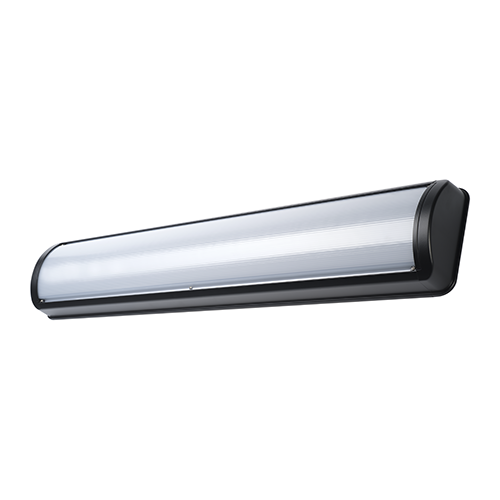

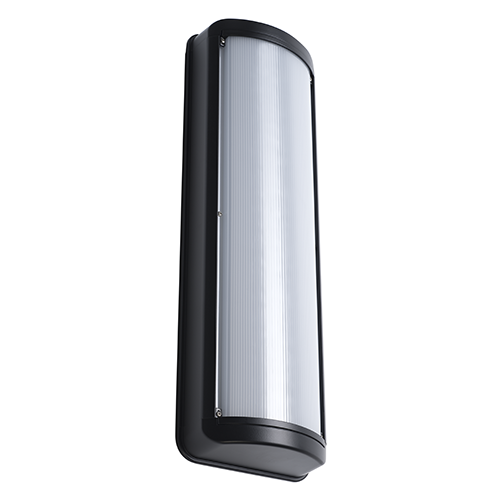

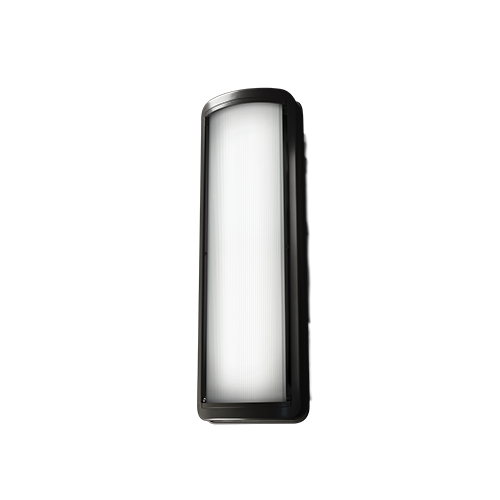

8” Wide Vision Vandal Resistant LED Fixture. Available in three fixture lengths for Ceiling, Pendant or Wall Mount.

By Luminaire LED

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

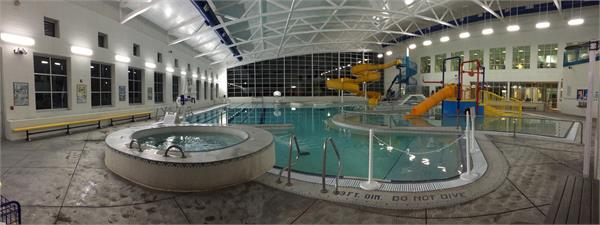

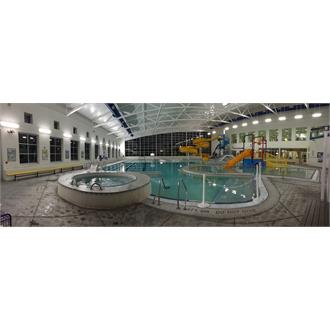

The vandal resistant Vision VPF8 fixture features an all-aluminum, ligature resistant construction which allows it to be used in any environment. A polycarbonate lens provides complete control of glare and LED image while maintaining the high efficiency of clear optical material. Optional Microwave or Bluetooth connected occupancy sensors can be mounted discreetly behind the lens for a clean fixture appearance. The VPF8 fixture is available in three lengths and in 2700K, 3000K, 3500K, 4000K, 5000K. A natatorium finish is standard for the VPF8.
Read More
Read Less
Light Source LED - Static
Lumens 1200 LM, 1300 LM, 1400 LM, 1900 LM, 2000 LM, 2100 LM, 2700 LM, 2800 LM, 2900 LM, 3000 LM, 3100 LM, 3700 LM, 3900 LM, 4000 LM, 4100 LM, 4200 LM, 4300 LM, 4800 LM, 4900 LM, 5000 LM, 5100 LM, 5200 LM, 5300 LM, 5400 LM, 5500 LM, 5600 LM, 5700 LM, 5900 LM, 6000 LM, 7400 LM, 7600 LM, 7700 LM, 7800 LM, 7900 LM, 8000 LM, 8300 LM, 8500 LM, 9900 LM, 10,200 LM, 10,300 LM, 10,400 LM, 10,500 LM, 10,600 LM, 11,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 82
Compliance Listing BAA, CA Title 20
Environmental Listing Wet Location
Regulatory Listing UL
Product Type Linear
Series VPF8
Application Type Behavioral Health, Education, Healthcare, Natatorium, Vandal Resistant
Fixture Wattage 115, 13, 19.5, 26.6, 38.9, 53, 56, 74
Voltage Rating 120, 120-277, 277, 347
Shape Rectangular

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LUMINAIRE-LED-VISION-VPF8-LED.pdf VPF8 Standard LED 2/17/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions InstallationSheet-VPF4-8-12-LED.pdf VPF4, VPF8, VPF12 Surface, Wall & Ceiling Mount 3/18/2020 View
    Installation Instructions InstallationSheet-VPF4-8-12-LED-w-Corner-Back-Box.pdf VPF4, VPF8, VPF12 with Corner Back Box 3/18/2020 View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet VPF8-REPLACEMENT-PARTS.pdf VPF8 Replacement Parts 7/1/2021 View
