Mark Architectural Lighting
Mark Architectural Lighting

SLOT 1 Surface

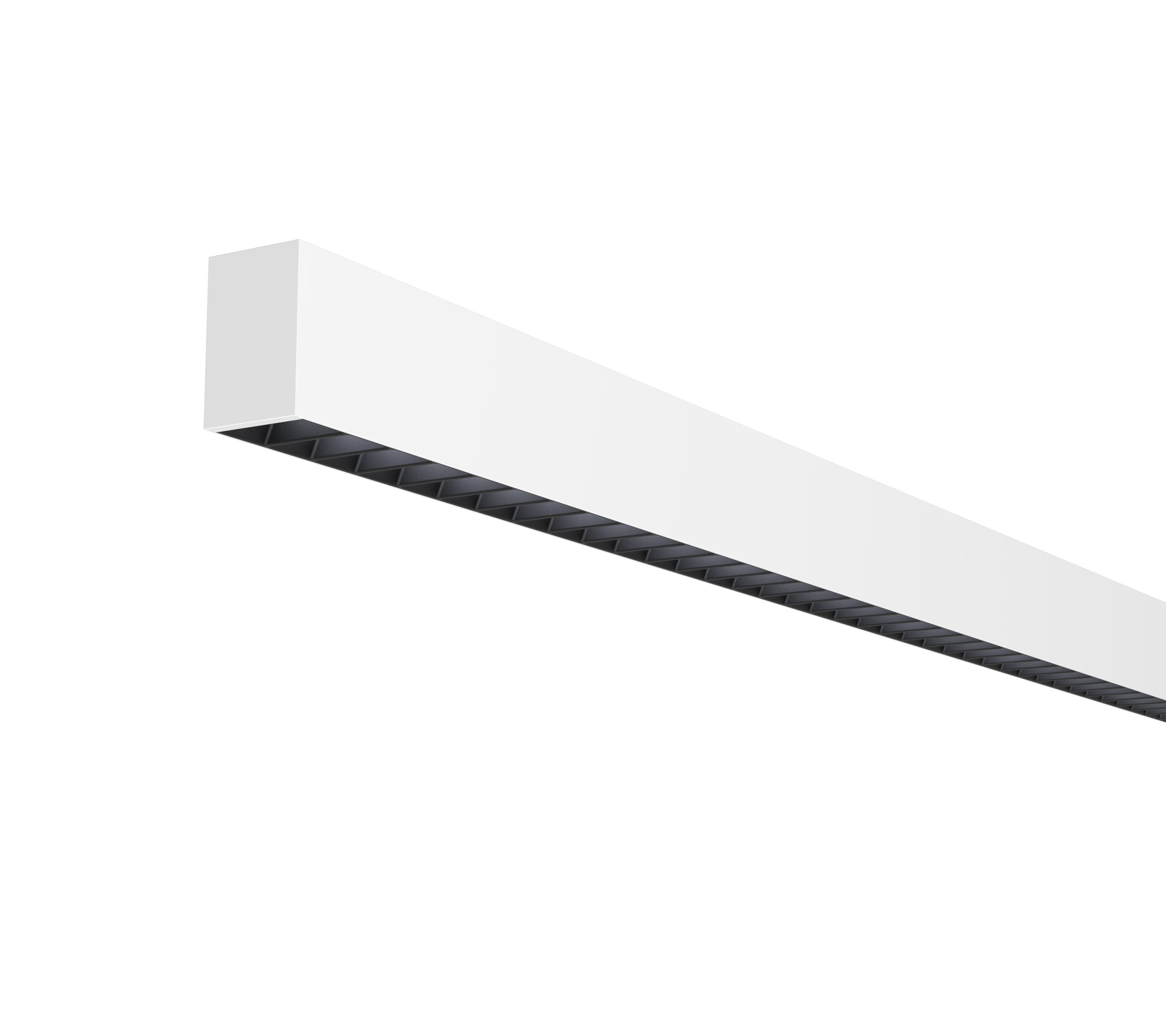

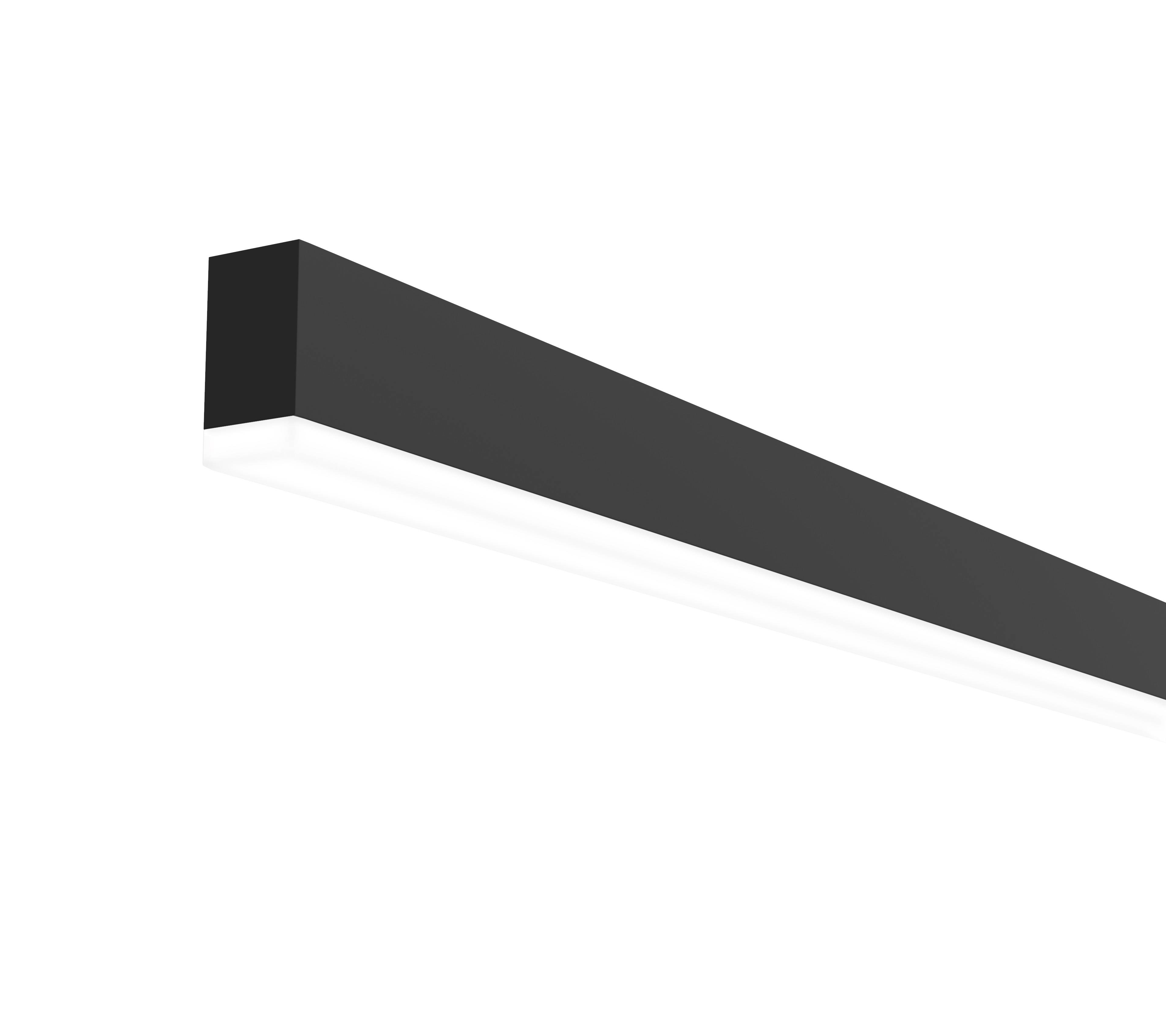

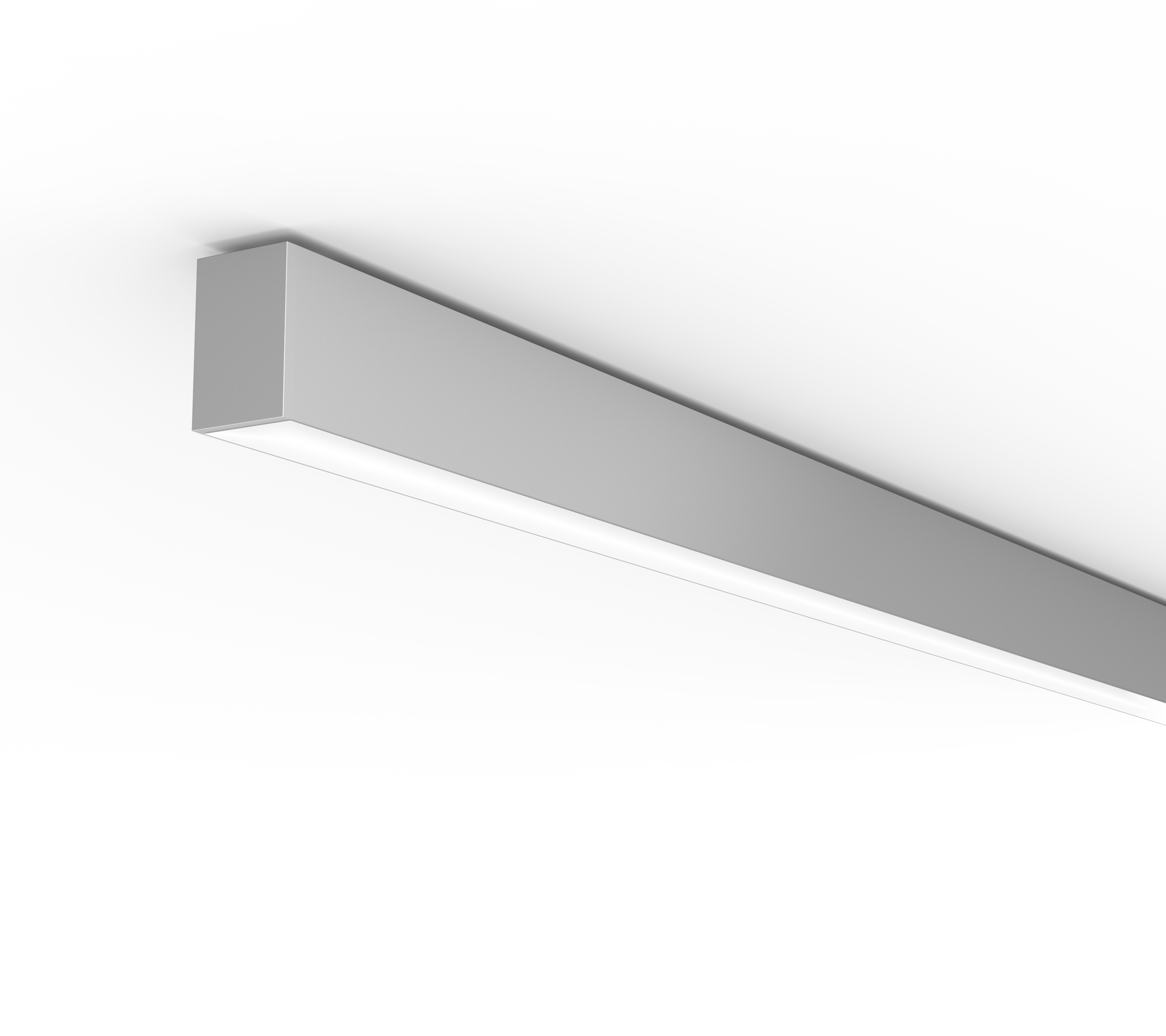

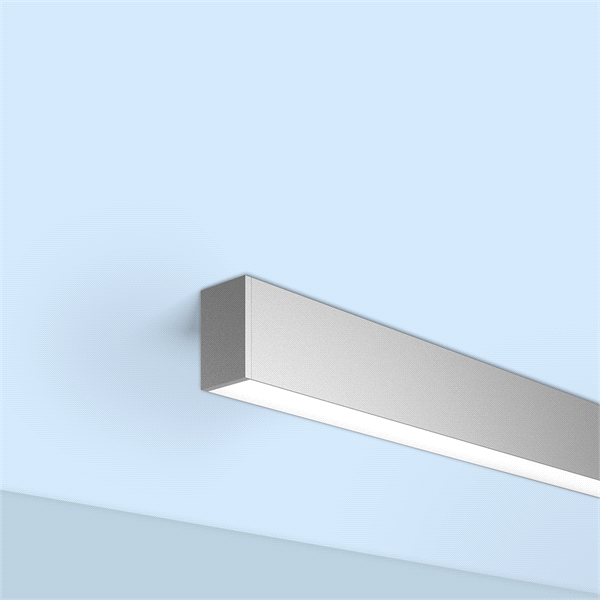

Surface mount linear lighting offering both static & tunable white
    Tunable WhiteDLC StandardBuy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 2FT, 3FT, 4FT, 5FT, 6FT, 7FT, 8FT
Light Source LED - Dynamic, LED - Static
Dynamic Feature Tunable White
Lumens 200 LM, 250 LM, 300 LM, 350 LM, 400 LM, 450 LM, 500 LM, 550 LM, 600 LM, 650 LM, 700 LM, 750 LM, 800 LM, 850 LM, 900 LM, 950 LM, 1000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Environmental Listing Damp Location, Dry Location
Regulatory Listing UL
Control Platform Modulus Enabled, nLight AIR G2, nLight Wired
Dimming Protocol 0-10V, DALI
Light Distribution Asymmetric, Direct Batwing, Wall Graze, Wall Wash
Mounting Type Surface
Voltage Rating 120, 120-277, 277, 347
Series S1LS, S1SD

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet mark-slot 1 surface-s1sd-linear-integral driver.pdf Slot 1 Integral Driver Direct Surface (S1SD) 3/12/2025 View
    Spec Sheet Modulus.pdf Modulus Head Unit (DK320M & DK75M) 8/10/2022 View
    Spec Sheet S1LS SURFACE.pdf Slot 1 Surface (S1LS) 9/12/2024 View
    Spec Sheet S1LS TUWH SURFACE.pdf Slot 1 Surface Tunable White (S1LS) 9/12/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1 Int Drvr_27K_90CRI.pdf Slot 1 Integral Driver 27K 90CRI 3/8/2024 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1 Int Drvr_30K_90CRI.pdf Slot 1 Integral Driver 30K 90CRI 3/8/2024 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1 Int Drvr_35K_90CRI.pdf Slot 1 Integral Driver 35K 90CRI 3/8/2024 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1 Int Drvr_40K_90CRI.pdf Slot 1 Integral Driver 40K 90CRI 3/8/2024 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1 Int Drvr_50K_90CRI.pdf Slot 1 Integral Driver 50K 90CRI 3/8/2024 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_27K_90CRI.pdf Slot 1 27K 90CRI 5/24/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_35K_90CRI.pdf Slot 1 35K 90CRI 5/24/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_40K_90CRI.pdf Slot 1 40K 90CRI 5/24/2022 View
    Spectral Data Sheet SpectralDataSheet_Mark_Slot1_50K_90CRI.pdf Slot 1 50K 90CRI 5/24/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions PIN007908_ModulusInstallation_revD.pdf Modulus/Head Unit (DK320M) 3/9/2023 View
    Installation Instructions Slot1_Surface_InstallationInstructions_19-2849.pdf Slot 1 Surface (S1LS) 8/23/2022 View
    Installation Instructions Slot1_Surface_QuickStartGuide_19-2853.pdf Slot 1 Surface Quick Start Guide 11/13/2020 View
    Installation Instructions Surface 912-00480-002.pdf Slot 1 Integral Driver Surface (S1SD) 3/13/2024 View
    Technical Bulletins NL_1008400_nLight Wired Architectural Ambient Tech Guide_0122_002.pdf nLight Wired Linear Technical Guide 10/6/2023 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Installation Instructions Slot1_RepairKits_InstallationInstructions_19-2902.pdf Slot 1 Repair Kit 11/13/2020 View
    Replacement Part Spec Sheet SLOT1 Repair Kits.pdf Slot 1 Repair Kits 12/16/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures MRK_1822401_Slot 1 Brochure Update.pdf SLOT 1 series brochure 3/14/2024 View
    Sell Sheet MRK_1822401.06_Slot 1 Sell Sheet_0224.pdf SLOT 1 Integral Driver Sell Sheet 3/14/2024 View
    Sell Sheet MRK_1822401.10_Family Cross Reference_0224 (2).pdf SLOT Family Cross Reference 3/14/2024 View
