AST1

AST1-LED

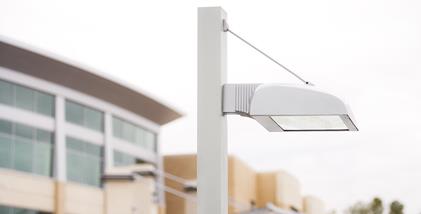

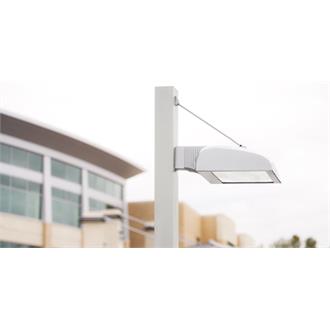

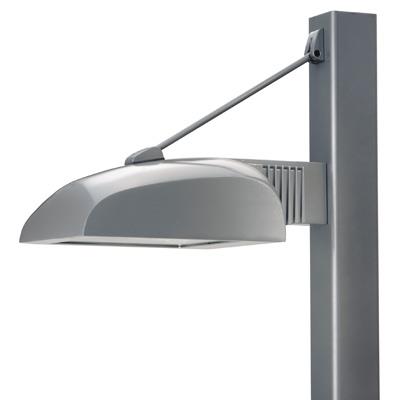

Aeris™ Suspend LED Area and Roadway Lighting Outdoor Size 1

by Lithonia Lighting

Ideal for parking areas, street lighting, walkways and car lots.


Construction

Rugged, die-cast, single-piece aluminum housing with nominal wall thickness of .012”. Die-cast door frame has impact-resistant, tempered, glass lens (3/16” thick). Door frame is fully gasketed with one-piece tubular silicone.

Finish: Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a minimum 3 mm thickness for a finish that can withstand extreme climate changes without cracking or peeling. Standard Super Durable colors include dark bronze, black, natural aluminum and white. Available in textured and non-textured finishes.

Strut: Aluminum tension rod provided as an architectural element. Not designed as a weight supporting device.

Optics

Precision acrylic refractive optics for optimum light distribution through the flat glass lens. Available with Type 2, Type 3, Type 4 and Type 5.

Electrical

High-efficiency nominal 4000K, 65 CRI LEDs mounted to a metal-core circuit board and aluminum heat sink, ensuring optimal thermal management and long life. Designed to provide more than 60,000 hours of performance (L85) at 250C (770F) ambient temperatures. Standard and dimming drivers are available in 120-277V and 347-480V; 50/60 Hz. Drivers have power factor >90% and THD <20%. Expected driver life is over 60,000 hours, matching the light engine life. Integral surge protection tested in accordance with IEEE/ANSI C62.41.2 to Category C Low.

Installation

Integral arm for pole or wall mounting. Optional mountings available. Additional backing plate and receiver used to mount tension rod. Fixture mounts 9.64" lower on the pole.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View Download
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View Download
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Brand Lithonia Lighting
    Color Black, Bronze, Silver, White
    Correlated Color Temperature 3000 K, 4000 K, 5000 K
    Environment Outdoor
    Finish Gloss, Textured
    Light Source LED - Static
    Listings CSA
    Lumen Output 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM
    Mounting Type Pole Mount
    Product Type Area Light
    Series AST1
    Shape Rectangular
    Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
