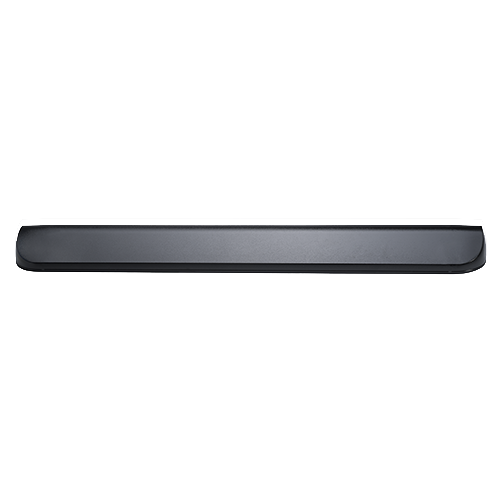

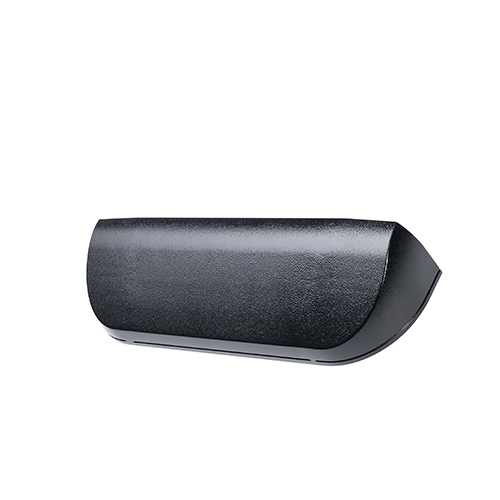

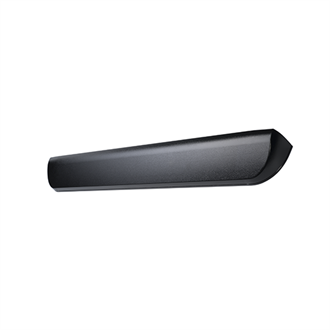

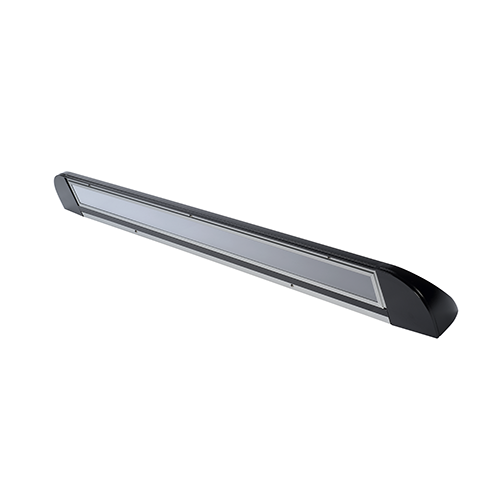

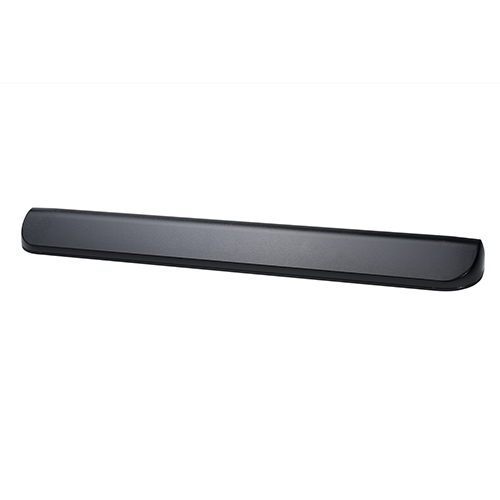

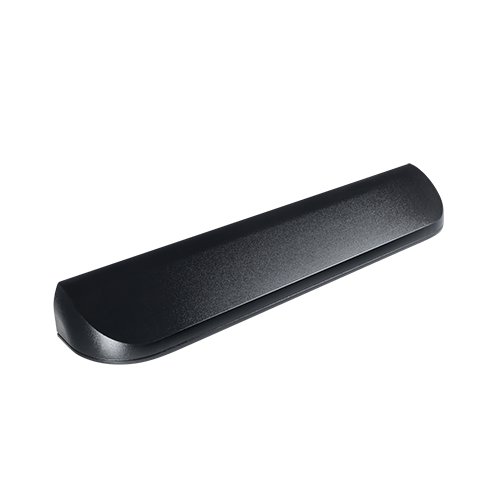

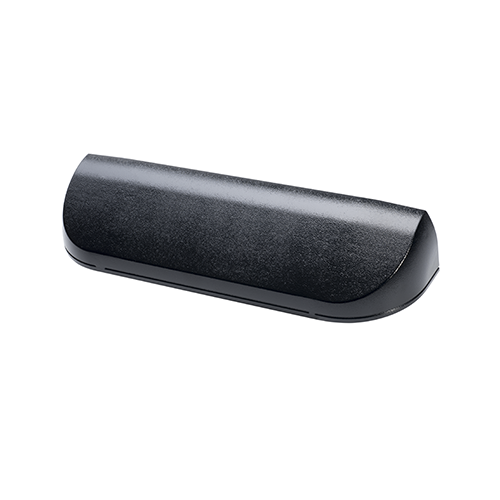

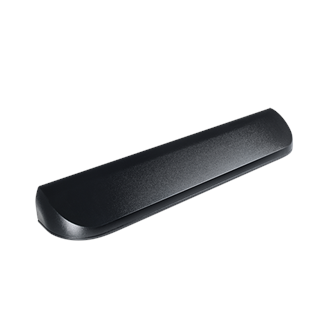

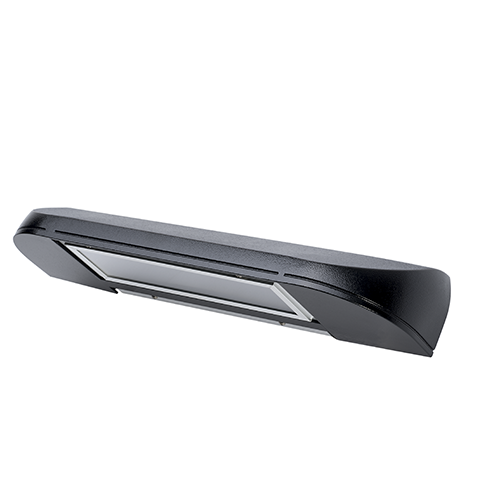

AEL Wallpack

Vandal Resistant Architectural Full Cut-Off Path of Egress LED Luminaire. Standard LED CCTs or Amber.
    CA Title 20
  • Caractéristiques
En savoir plus
Lire moins
Light Source LED - Static
Lumens 290 LM, 300 LM, 500 LM, 600 LM, 700 LM, 800 LM, 850 LM, 900 LM, 1200 LM, 1300 LM, 1500 LM, 1600 LM, 1900 LM, 2000 LM, 2900 LM, 3000 LM, 3100 LM, 3200 LM, 3300 LM, 3400 LM, 3500 LM, 3600 LM, 3700 LM, 3900 LM, 5800 LM, 5900 LM, 6000 LM, 6200 LM, 6400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Limited Wavelength
CRI 82
Certification environnementale Wet Location
Inscription réglementaire UL
Type de produit Wallpack
Series AEL
Type d’application Education, Healthcare, Sports and Recreation, Transportation, Vandal Resistant
Fixture Wattage 10.8, 14.9, 17.6, 18.8, 26.3, 27.9, 35.2, 52, 9.4
Tension 120, 120-277, 277, 347
Forme Rectangular

En savoir plus Lire moins

  • Produits de remplacement suggérés

PRODUCT INFORMATION

  • Fiches techniques

    Type de document Titre du document Description Actualisé Voir
    Fiche technique LUMINAIRE-LED-EGRESS-AEL-LED.pdf AEL Standard LED 3/28/2024 Voir
    Fiche technique LUMINAIRE-LED-EGRESS-AEL-LED-AMBER.pdf AEL Amber 3/28/2024 Voir

  • Photométrie et BIM

    Utilisez % (pourcent) pour séparer les termes de recherche.
    effacer les filtres

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} de {{pager.totalItems | number:0}} résultats

    Description rapport outils de conception
    {{photometryItem.Catalog}} rapport
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Documents techniques (ex. fiches d’instructions, FDS, CAO)

    Type de document Titre du document Description Actualisé Voir
    Instructions d'installation InstallationSheet-AEL.pdf AEL Full Cut-Off Architectural Egress Wall Mount 3/13/2020 Voir

  • Utility Rebate Search

  • Pièces de rechange

    Type de document Titre du document Description Actualisé Voir
    Replacement Part Spec Sheet AEL-REPLACEMENT-PARTS.pdf AEL Replacement Parts 6/17/2021 Voir
