L7X GU24

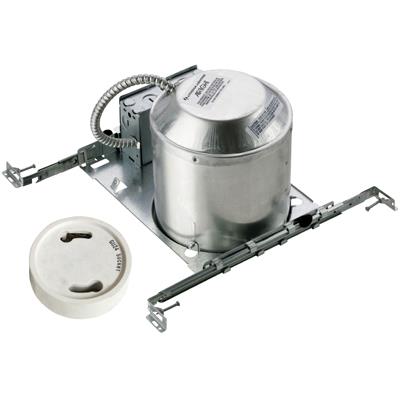

6" GU24-Socket New Construction Housing

by Lithonia Lighting

Recessed GU24 housings for 2x8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

L7X GU24: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Size 6 IN
    Brand Lithonia Lighting
    Color Black, Bronze, Clear, Nickel, White
    Environment Indoor
    Finish Antique, Brushed, Diffuse, Gloss, Matte, Oil Rubbed, Polished, Semi-Specular, Specular
    Light Source Halogen, Incandescent, LED - Static
    Listings CSA Damp Location, cUL, IC, Non-IC, UL, UL Damp Location
    Mounting Type Recessed
    Product Type Downlight
    Series L7X
    Shape Round
    Voltage Rating 120
