Lithonia Lighting
Lithonia Lighting

STLED

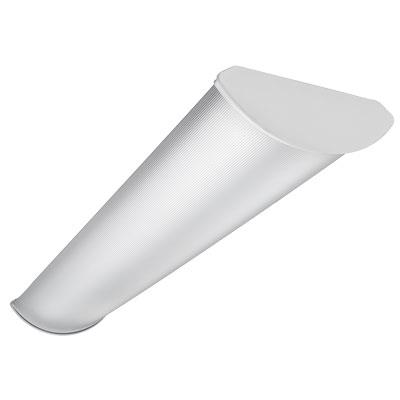

STL Volumetric LED Wraparound
    DLC StandardCA Title 20
  • Overview
  • Specifications
Read More
Read Less
Size 1x2, 1x4
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 4800 LM, 6000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Wraparound
Regulatory Listing CSA
Control Platform nLight Wired, Sensor Switch Standalone
Dimming Protocol 0-10V, Digital
Fixture Wattage 20, 20.1, 23.1, 26.7, 29.7, 34.9, 37.9, 39, 45.2, 48.2, 53, 56
Voltage Rating 347
Color Silver
Mounting Type Surface, Suspended
Series STL2, STL4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet STL2 STL 2FT Surface Volumetric 11/28/2023 View
    Spec Sheet STL4 STL 4FT Surface Volumetric 11/28/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_STL2_20L_80CRI_30K.pdf STL2_20L_80CRI_30K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_STL2_20L_80CRI_40K.pdf STL2_20L_80CRI_40K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_STL4_30L_80CRI_30K.pdf STL4_30L_80CRI_30K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_STL4_30L_80CRI_40K.pdf STL4_30L_80CRI_40K 9/6/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic and Polycarbonate Compatibility To be printed with all products containing acrylic or polycarbonate material 12/14/2023 View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic and Polycarbonate Compatibility Information 12/19/2023 View
    Installation Instructions aircraft-cable-installations-instructions STACG Aircraft Cable Installation Instructions for T Bar 6/17/2014 View
    Installation Instructions ST DIFFUSER INSTRUCTIONS ST Diffuser Installation Instructions 6/4/2014 View
    Installation Instructions STL Instructions.pdf STL Installation Instructions 9/25/2017 View
    Installation Instructions STLED installation instructions STLED Installation Instructions 6/4/2014 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet STL Order Tree 1-3-2022.pdf STL Replacement Part Kits 1/3/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Catalogs Lithonia Lighting Commercial Indoor Guide Comparison of Key Panels, Troffers and Linear Fixtures 9/11/2020 View
    FAQ ST FAQs ST FAQs 6/4/2014 View
    Sell Sheet STL Sell Sheet STL Volumetric Wraparound 6/9/2020 View
