ILB 1826 CW Emergency Driver

Cold Weather, Constant Current LED Emergency Driver for 18-26 VDC LED Luminaires

By IOTA

  • Overview
  • Specifications

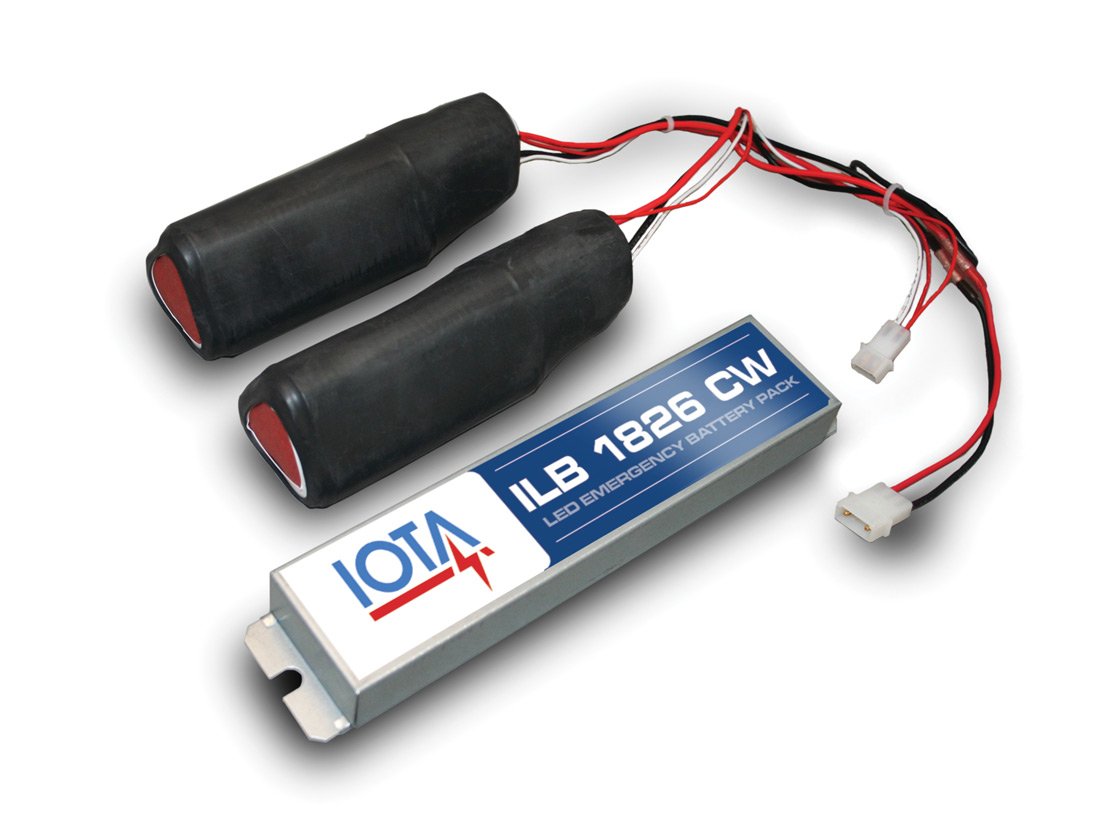

The IOTA ILB1826 CW is a UL Recognized 750mA LED emergency battery pack that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB1826 CW switches to the emergency mode and operates the existing fixture for 90 minutes. The unit includes two 7-cell long life high temperature Ni-Cad battery packs, and a charger and converter circuit in a reduced-profile enclosure for wiring to the fixture components and test accessories. A heating element and temperature control circuitry protect the battery from freezing during normal AC operation and allows the battery pack to reach acceptable operating temperatures before reactivating the charging circuit.
LED Operation
  • 18-26 VDC
  • Up to 20 Watts max
Product Advantages
  • Designed for outdoor paths of egress and freezing environments
  • Heating and Temperature Control Blanket protects the battery from freezing conditions
Features
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized reduced-profile steel case
  • Includes single-piece TBTS test switch and charge indicator accessory
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in damp locations and in enclosed and gasketed fixtures
  • RoHS Compliant
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120/277
Frequency 60HZ
Load Voltage Rating 18-26 VDC
Max. Operating Temp. 50
Min. Operating Temp. -20
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing NFPA 101, UR
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILB1826

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILB1826 CW Specifications Specification Sheet for the ILB1826 CW (Cold Weather) 2/18/2020 View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ILB1826 Manual For ILB1826 and ILB1826 CW (Cold Weather) Models 9/23/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) Typical Installation - 2-Piece Test Kit DWG Format - Connections to an LED luminaire with a two-piece test switch and charge indicator 7/10/2020
    Wiring Diagram (DWG) Typical Installation - TBTS Test Kit DWG Format - Connections to an LED luminaire with a TBTS test switch 7/10/2020
    Wiring Diagram (PDF) Typical Installation - 2-Piece Test Kit PDF Format - Connections to an LED luminaire with a two-piece test switch and charge indicator 7/10/2020 View
    Wiring Diagram (PDF) Typical Installation - TBTS Test Kit PDF Format - Connections to an LED luminaire with a TBTS test switch 7/10/2020 View
