Product Image
IOTA ILB CP10 LC

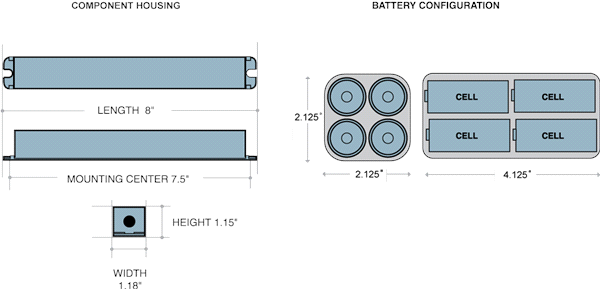

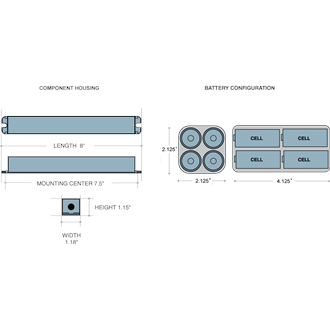

Dimensions - LC Mounting Style - Length: 8in, Width: 1.8in, Height: 1.15in, Mounting Center: 7.5in, Battery Length: 4.125in, Battery Width: 2.125in, Battery Height: 2.125in

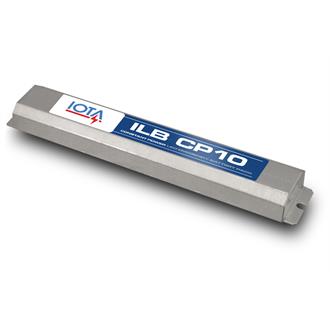

ILB CP10 LC Emergency Driver

10 Watt Constant Power, LED Emergency Driver with External Battery

By IOTA

  • Overview
  • Specifications

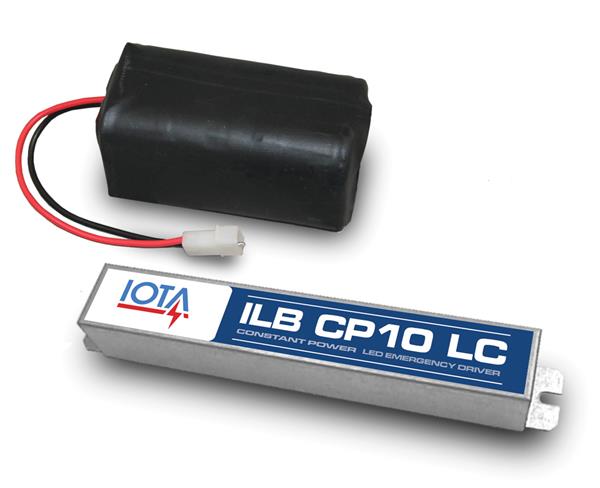

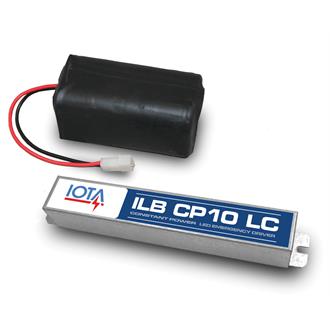

The ILB CP10 LC from IOTA Engineering is a UL Component Recognized LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP10 LC switches to the emergency mode and operates the existing fixture for 90 minutes. The unit includes a charger, and converter circuit in a slim profile housing and separate battery pack component. The Constant Power design of the ILB CP10 LC maintains the output wattage to the LED array even as the system voltage diminishes
LED Operation
  • 10 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • Slim Profile Electronics Housing and External Battery Design for mounting versatility
  • Constant Power Design maintains emergency illumination through 90-minute runtime with no light degradation
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers or strips, reducing product SKUs for emergency options
Features
  • UL 1310 Certified, Output Class 2 Compliant
  • Long life high temperature recyclable Ni-Cad battery
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in damp locations
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 10 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing NFPA 101, UR
Compliance Listing ROHS
Environmental Listing Damp Location
Series ILB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ILB CP10 LC Specifications Specification Sheet for ILB CP10 LC (External Battery) Models 9/24/2019 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    3D Model External Battery - CUBE Configuration STEP File - External Battery CUBE Configuration 7/15/2020
    3D Model ILB CP10 LC - Electronics Enclosure STEP File - ILB CP10 LC Electronics Enclosure 7/15/2020
    Installation Instructions LC (External Battery) Mounting Style Installation Manual for the ILB CP10 LC (External Battery) Mounting Style 9/24/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Technical Bulletins Comprensión de la Potencia Constante Maximiza la seguridad en las salidas de emergencia utilizando potencia constante real (CP) 4/12/2021 View
    Technical Bulletins The Need for Surge Protection IOTA emergency drivers feature enhanced designs for withstanding exposure to electrical surges. 4/5/2021 View
    Technical Bulletins Understanding Constant Power Understand the benefits of IOTA's patented Constant Power emergency LED driver design 2/11/2022 View
    Wiring Diagram Typical Installation Typical Installation of an ILB CP10 LC 7/15/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide Cableado del IOTA ILB CP Pasos rápidos para conectar correctamente un driver de emergencia LED IOTA a su luminaria 4/12/2021 View
    Application Guide ILB CP Lumen Reference Chart Quickly identify IOTA LED Emergency Drivers that meet your desired lumen levels 1/25/2022 View
    Application Guide ILB CP Wiring Reference Guide Quick steps for properly adding an IOTA ILB CP LED Emergency Driver to your luminaire 7/8/2022 View
    Application Guide Tabla de Referencia de Lumen de ILB CP Identifique rápidamente los drivers LED de emergencia de IOTA que cumplen con los niveles de lumen deseados 4/12/2021 View
