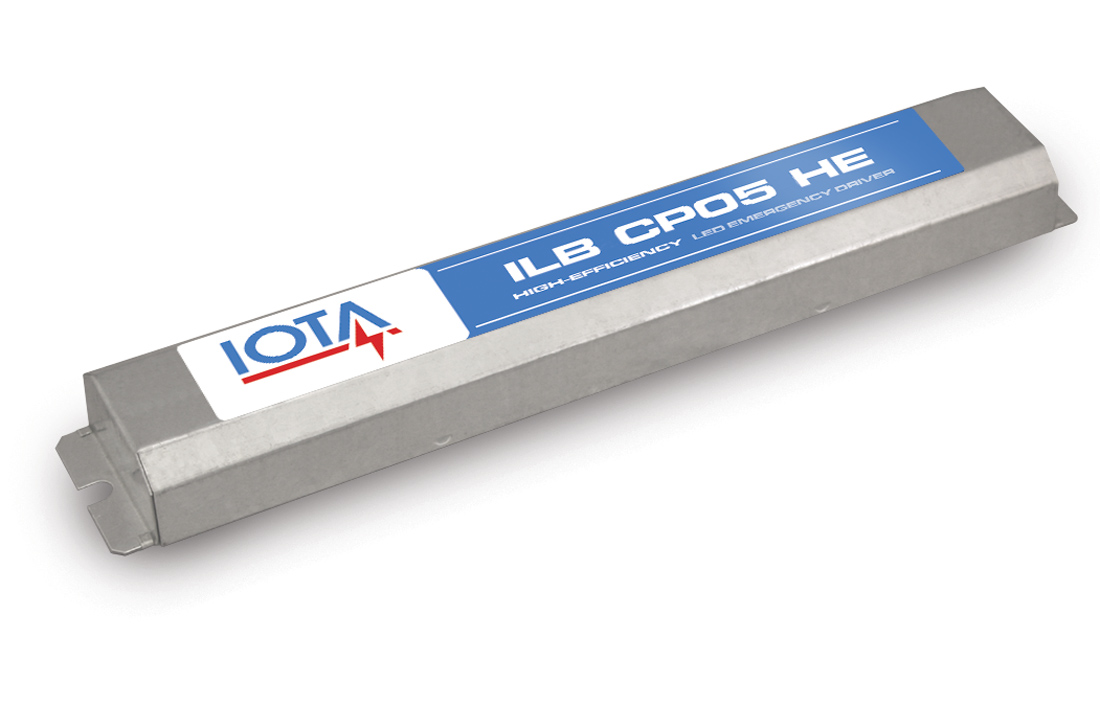

IOTA ILB CP05 HE

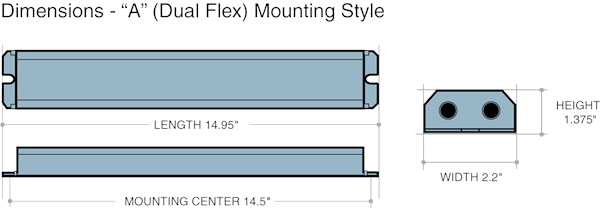

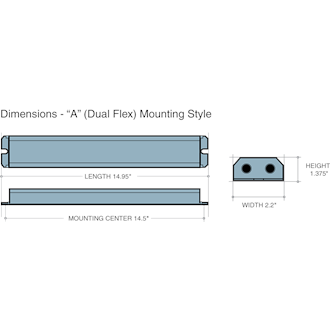

Dimensions - A Mounting Style - Length: 14.95in, Width: 2.2in, Height: 1.375in, Mounting Center: 14.5in

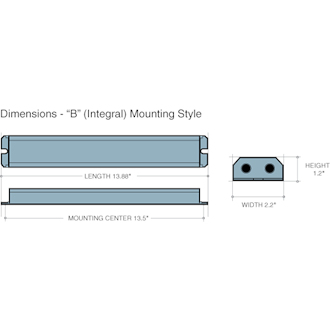

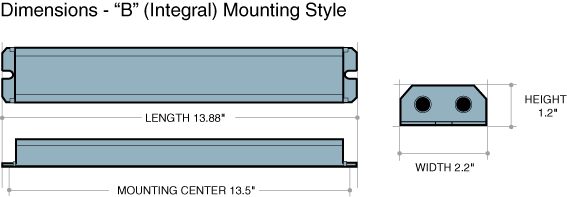

Dimensions - B Mounting Style - Length: 13.88in, Width: 2.2in, Height: 1.2in, Mounting Center 1.35in
Video - ILB CP wiring

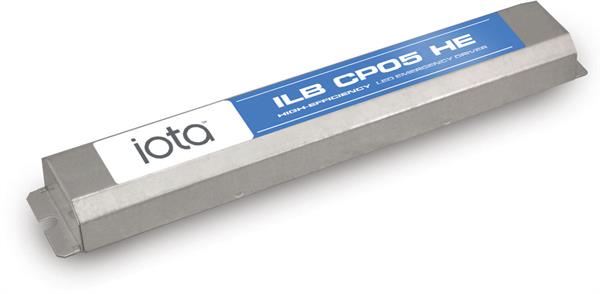

ILB CP05 HE Emergency Driver

5 Watt Constant Power LED Emergency Driver for CA Title 20

By IOTA

    CA Title 20
  • Overview
  • Specifications
The ILB CP05 HE from IOTA is a UL Listed LED emergency driver for field or factory installation that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP05 HE switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single enclosure and is available in different mounting configurations for individual fixture requirements. The patented Constant Power design of the ILB CP05 HE maintains the output wattage to the LED array even as the system voltage diminishes, resulting in a constant illumination level for the entire emergency runtime. The ILB CP05 HE features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
LED Operation
  • 5 Watts Constant Power
  • 10-60 VDC Nominal Output
Product Advantages
  • High Efficiency Performance meets CA T20 battery charger efficiency standards
  • UL Listed for field installation
  • Constant Power Design maintains emergency illumination through 90-minute runtime with no light degradation
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers or strips, reducing product SKUs for emergency options
Features
  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Output Class 2 Compliant
  • Integral and flex mounting styles available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminares
  • RoHS Compliant
  • Patented. Visit iotaengineering.com/patents for more details
Read More
Read Less
Product Type Emergency LED Driver
Voltage Rating 120-277
Frequency 50/60HZ
Load Voltage Rating 10-60 VDC
Output Power 5 Watts
Max. Operating Temp. 55
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing cUL, NFPA 101
Compliance Listing CA Title 20, ROHS
Environmental Listing Damp Location
Series ILB

Read More Read Less
