IOTA I48
Dimensions - I48 - Length: 9.5in, Width: 2.4in, Height: 1.5in, Mounting Center: 9in

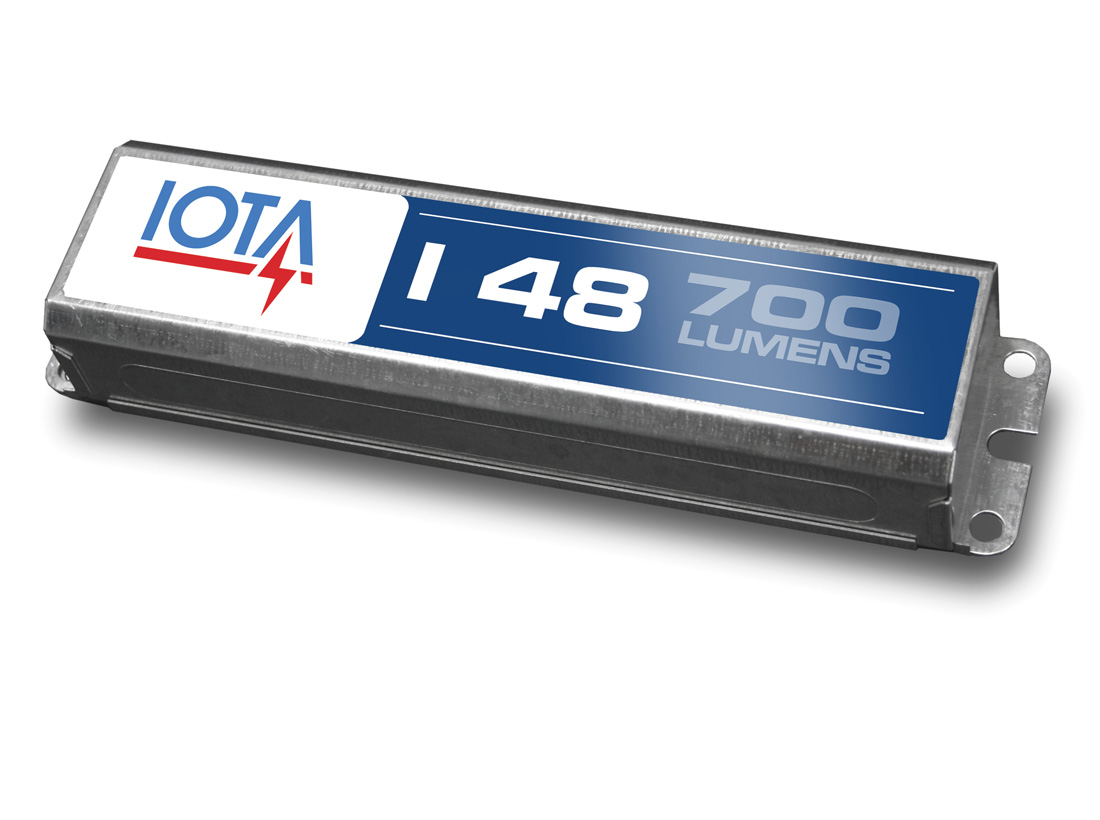

I48 Emergency Ballast

Emergency Ballast for Linear and Long Compact Fluorescent Luminares

by Iota

The I48 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I48 switches to the emergency mode and operates one or two of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can, and can be mounted in the wireway or on top of the fixture. The I48 features lamp selector leads for optimizing light output for designated lamp types.
Initial Lumen Output
  • 700 Lumens
Lamps Operated
  • (1) 2-8ft. Single Bipin HO and VHO T8-T12, including long compacts
  • (2) 2-4ft. Single, Bipin HO and VHO T8-T12
Features
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit Isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Lamp selector leads optimize light output for designated lamp type
  • Rated for use in damp locations, plenum, and enclosed and gasketed fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Need Product Assistance?

  • Specifications

    Battery Chemistry Type NiCd
    Battery Recharge Time 24 hours
    Battery Run Time 90 min
    Brand IOTA
    Environment Indoor
    Frequency 60HZ
    Regulatory Listing C-UL-US, NFPA 101
    Maximum Operating Temperature 50
    Minimum Operating Temperature 0
    Product Type Emergency Ballast
    Series I48
    Voltage Rating 120/277
