IOTA I162

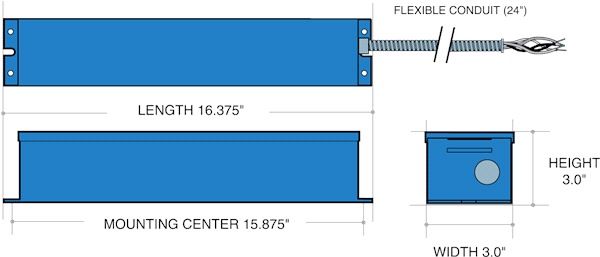

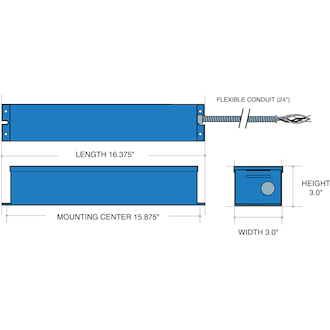

Dimensions - I162 - Length: 16.375in, Width: 3.0in, Height: 3.0in, Mounting Center: 15.875in, Flexible Conduit Length: 24in

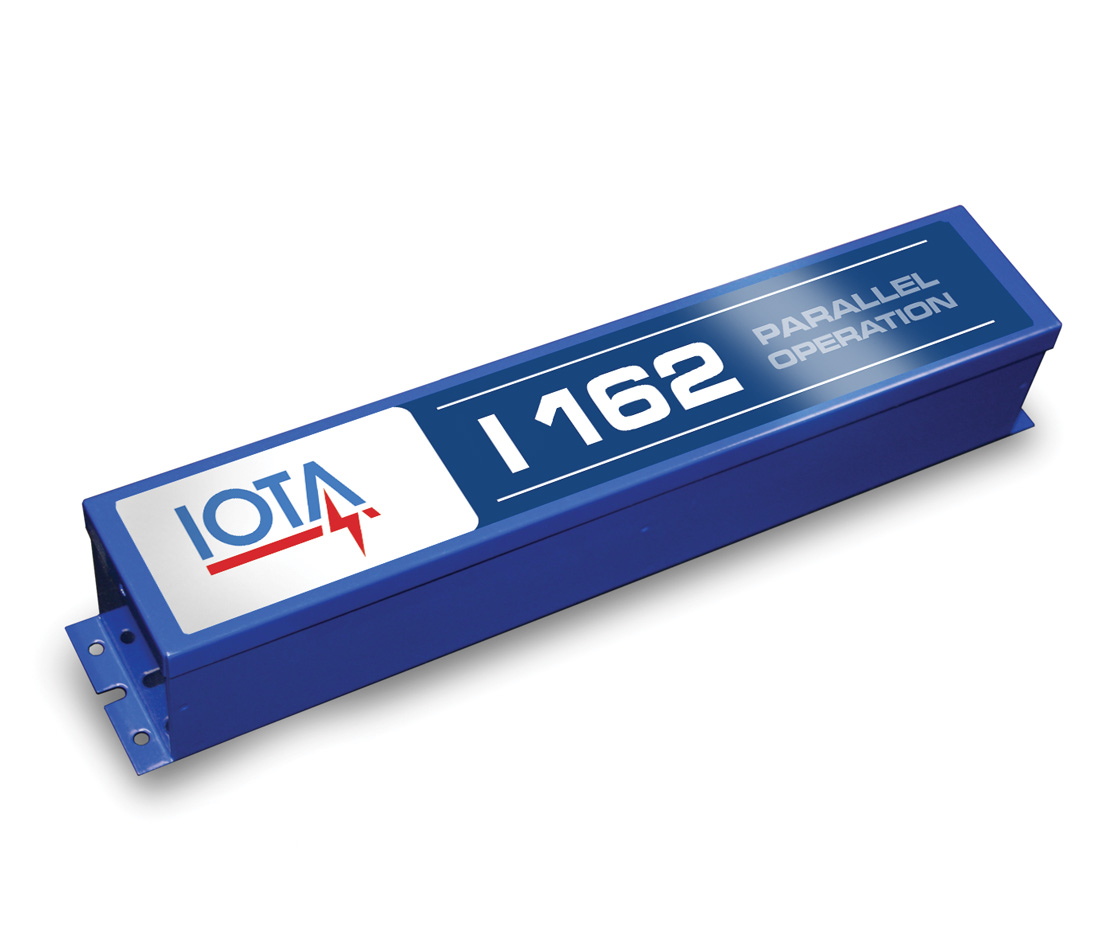

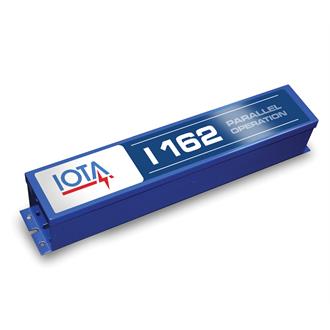

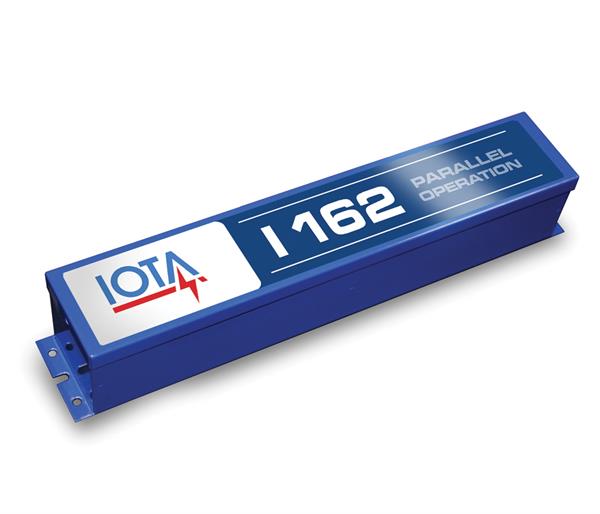

I162 Emergency Ballast

High Lumen, Parallel Operation Emergency Ballast for Linear and Compact LED Retrofit (TLED) and Fluorescent Luminaires

by Iota

The I162 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I162 switches to the emergency mode and operates two of the existing lamps in parallel for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can and is provided with 2 feet of 1/2'' flex for wiring to the fixture. The unit is designed for installation next to or on top of the fixture. The I162 utilizes AC output to ensure compatibility with new lamp technologies. The unit is compatible with all electronic or magnetic, series or parallel output, multi-lamp ballasts and is suitable for use in damp locations.
Initial Lumen Output
  • 3000 Lumens
Lamps Operated
  • (2) Select LED Retrofit Tubes
  • (2) 2-4ft T8, 12
  • (2) 28 or 54W T5
  • (2) 24W-50W Long Compact
Features
  • Parallel Lamp Operation
  • AC output for compatibility with Low-Mercury Content Amalgam lamps
  • Time Delay feature for compatibility with End-of-Lamp-Life circuitry
  • Open Circuit isolation protects unit when load is absent
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Painted steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations and plenum fixtures
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Need Product Assistance?

  • Specifications

    Battery Chemistry Type NiCd
    Battery Recharge Time 24 hours
    Battery Run Time 90 min
    Brand IOTA
    Environment Indoor
    Frequency 60HZ
    Regulatory Listing C-UL-US, NFPA 101
    Maximum Operating Temperature 50
    Minimum Operating Temperature 0
    Product Type Emergency Ballast
    Series I162
    Voltage Rating 120/277
