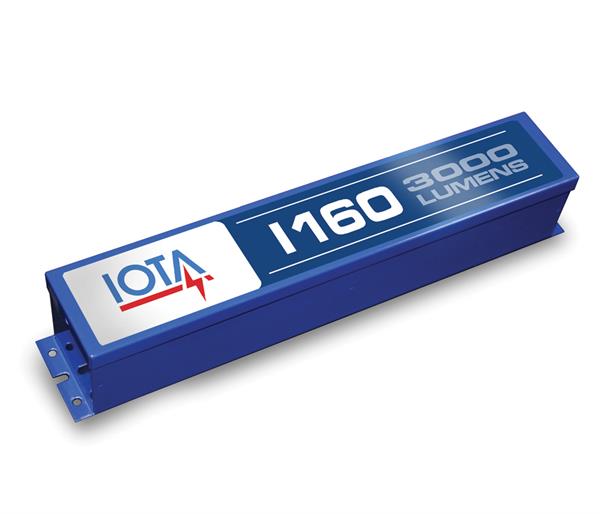

Product Image
IOTA I160
Dimensions - I160 - Length: 16.375in, Width: 3.0in, Height: 3.0in, Mounting Center 15.875in, Flexible Conduit Length: 24in

I160 Emergency Ballast

High Lumen Emergency Ballast for Linear and Compact LED Retrofit (TLED) and Fluorescent Luminaires

By IOTA

  • Overview
  • Specifications
The I160 from IOTA Engineering is a UL Listed fluorescent emergency ballast that allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I160 switches to the emergency mode and operates one or two of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can and is provided with 2 feet of 1/2'' flex for wiring to the fixture. The unit is designed for installation next to or on top of the fixture. The I160 utilizes AC output to ensure compatibility with new lamp technologies. The unit features lamp selector leads for optimizing light output for designated lamp types. The I160 is suitable for use in damp locations.
Initial Lumen Output
  • 3000 Lumens
Lamps Operated
  • Select LED Retrofit Tubes
  • (1) 2-4ft T5
  • (1) 2-8ft T8
  • (2) 2-4ft 17W T8
  • (1) 25W-50W Biax
  • (1) 18W-70W 4-Pin
  • (2) 18W-25W 4-Pin
Features
  • AC output for compatibility with Low-Mercury Content Amalgam lamps
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable Ni-Cad battery
  • Painted steel case
  • Includes test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • Rated for use in damp locations and plenum fixtures
  • Selectable lamp leads optimize light output for desired lamp type
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • RoHS Compliant
Read More
Read Less
Product Type Emergency Ballast
Voltage Rating 120/277
Frequency 60HZ
Max. Operating Temp. 50
Min. Operating Temp. 0
Battery Run Time 90 min
Battery Chemistry Type NiCd
Battery Recharge Time 24 hours
Battery Activation Unit Connector
Life Safety Testing Manual Testing
Regulatory Listing C-UL-US, NFPA 101
Compliance Listing ROHS
Series I160

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET I160 Specifications Specification Sheet for the IOTA I160 2/17/2020 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions I160 Manual Installation Manual for the I160 9/19/2019 View
    Material Safety Data Sheet MSDS for nickel-cadmium drivers and ballasts Safety Data Sheet for Ni-Cad emergency battery component 5/12/2021 View
    Wiring Diagram (DWG) Four Lamp Instant Start Ballast - Linear DWG Format - Connections to a four lamp (one emergency lamp) linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Four Lamp Rapid Start Ballast - Linear DWG Format - Connections to a four lamp (one emergency lamp) linear luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) One Lamp Instant Start Ballast - Linear DWG Format - Connections to one lamp linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast - Compact DWG Format - Connections to one lamp compact luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) One Lamp Rapid Start Ballast - Linear DWG Format - Connections to one lamp linear luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) Three Lamp Instant Start Ballast - Linear DWG Format - Connections to a three lamp (one emergency lamp) linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Three Lamp Rapid Start Ballast - Linear DWG Format - Connections to a three lamp (one emergency lamp) linear luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp (One EM) Instant Start Ballast - Linear DWG Format - Connections to two lamp (one emergency lamp) linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp (One EM) Rapid Start Ballast - Compact DWG Format - Connections to a two lamp (one emergency lamp) compact luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp (One EM) Rapid Start Ballast - Linear DWG Format - Connections to a two lamp (one emergency lamp) linear luminaire with a rapid start ballast - Option A 6/30/2020
    Wiring Diagram (DWG) Two Lamp (One EM) Rapid Start Ballast - Linear DWG Format - Connections to a two lamp (one emergency lamp) linear luminaire with a rapid start ballast - Option B 6/30/2020
    Wiring Diagram (DWG) Two Lamp (Two EM) Instant Start Ballast - Linear DWG Format - Connections to a two lamp (two emergency lamp) linear luminaire with an instant start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp (Two EM) Rapid Start Ballast - Compact DWG Format - Connections to a two lamp (two emergency lamp) compact luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (DWG) Two Lamp (Two EM) Rapid Start Ballast - Linear DWG Format - Connections to a two lamp (two emergency lamp) linear luminaire with a rapid start ballast 6/30/2020
    Wiring Diagram (PDF) Four Lamp Instant Start Ballast - Linear PDF Format - Connections to a four lamp (one emergency lamp) linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Four Lamp Rapid Start Ballast - Linear PDF Format - Connections to a four lamp (one emergency lamp) linear luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) One Lamp Instant Start Ballast - Linear PDF Format - Connections to one lamp linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast - Compact PDF Format - Connections to one lamp compact luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) One Lamp Rapid Start Ballast - Linear PDF Format - Connections to one lamp linear luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) Three Lamp Instant Start Ballast - Linear PDF Format - Connections to a three lamp (one emergency lamp) linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Three Lamp Rapid Start Ballast - Linear PDF Format - Connections to a three lamp (one emergency lamp) linear luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (One EM) Instant Start Ballast - Linear PDF Format - Connections to two lamp (one emergency lamp) linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (One EM) Rapid Start Ballast - Compact PDF Format - Connections to a two lamp (one emergency lamp) compact luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (One EM) Rapid Start Ballast - Linear PDF Format - Connections to a two lamp (one emergency lamp) linear luminaire with a rapid start ballast - Option A 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (One EM) Rapid Start Ballast - Linear PDF Format - Connections to a two lamp (one emergency lamp) linear luminaire with a rapid start ballast - Option B 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (Two EM) Instant Start Ballast - Linear PDF Format - Connections to a two lamp (two emergency lamp) linear luminaire with an instant start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (Two EM) Rapid Start Ballast - Compact PDF Format - Connections to a two lamp (two emergency lamp) compact luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram (PDF) Two Lamp (Two EM) Rapid Start Ballast - Linear PDF Format - Connections to a two lamp (two emergency lamp) linear luminaire with a rapid start ballast 6/30/2020 View
    Wiring Diagram Test Switch Placement - Same Branch Circuit Diagram for installing the test switch on the same branch circuit as the AC ballast 6/30/2020 View
    Wiring Diagram Test Switch Placement - Separate Branch Circuit Diagram for installing the test switch on a different branch circuit than the AC ballast 6/30/2020 View
