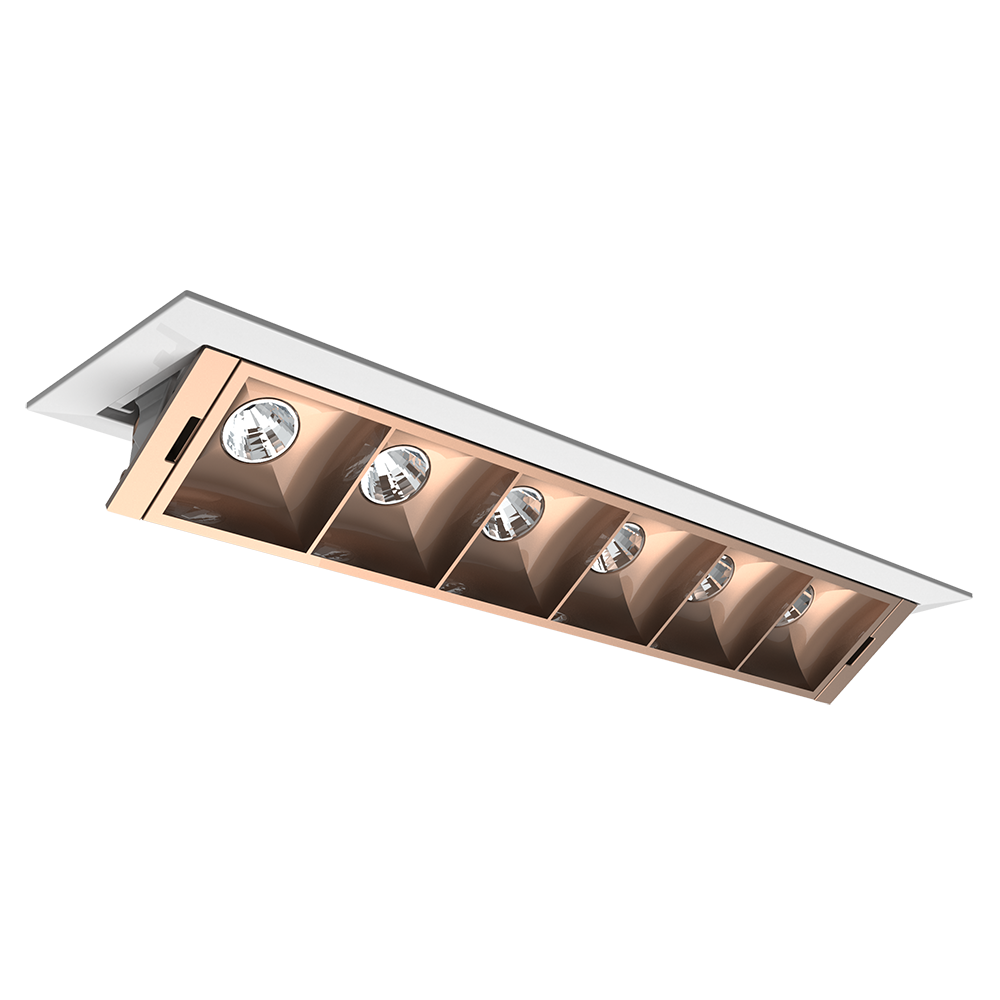

6x adjustable 30 degrees wheat 1000x1000.png
6x adjustable 30 degrees white 1000x1000.png

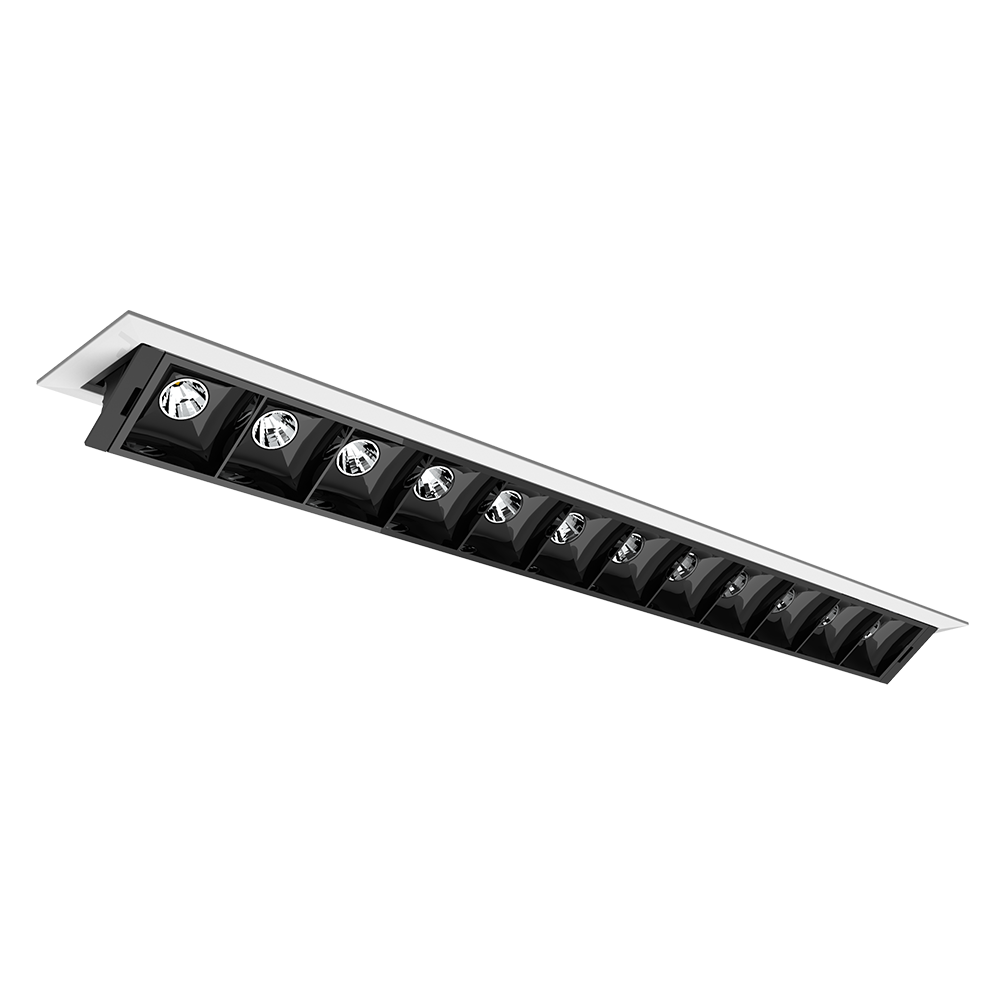

12x adjustable 30 degrees 1000x1000.png
8x adjustable 30 degrees 1000x1000.png
LN1SQ A 8C WW FM ConfRoom A.jpg
LN1SQ A 2C W FM Lab 2.jpg
LN1SQ A 2C W FM Lab.jpg

LN1SQ A Linear Recessed Adjustable

Aculux lini™ LED 1in Linear Recessed Adjustable Accent

By Aculux

    Energy Star®CA Title 24/JA8Buy America(n) Option Available
  • Overview
  • Specifications
Aculux lini™ is a series of miniature linear luminaires comprised of 1-inch square apertures. These luminaires are available in 2, 4, 6, 8, or 12 cell configurations, from 370-2230 lumens and feature four distributions, capable of delivering up to 13,252 MCBCP. They offer excellent color rendition with 80+ and 90+ CRI available and consistent color with < 2SDCM. With exceptional glare control and 40-degree visual cut-off, Aculux lini blends seamlessly and discreetly into any architectural environment. A variety of baffle trim finishes are available in flanged and flangeless trim styles, for a sophisticated look in virtually any ceiling material. This adjustable accent luminaire is also bi-directional with +/- 35-degree tilt, providing the capability of accenting vertical surfaces.
Read More
Read Less
Size 1 IN
Shape Rectangular
Light Source LED - Static
Lumens 370 LM, 750 LM, 1100 LM, 1500 LM, 2250 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Downlight
Compliance Listing BAA, CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
Environmental Listing ASTM Airtight, Damp Location, IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase
Fixture Wattage 12, 16, 24, 5, 9
Voltage Rating 120-277
Color Black, Clear, Pewter, Wheat, White
Mounting Type Recessed
Series LN1SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET LN1SQ A.pdf Aculux lini™ 1” Linear Recessed Adjustable 10/26/2022 View
