AX3 LPWW Low Profile Wall Wash Housing

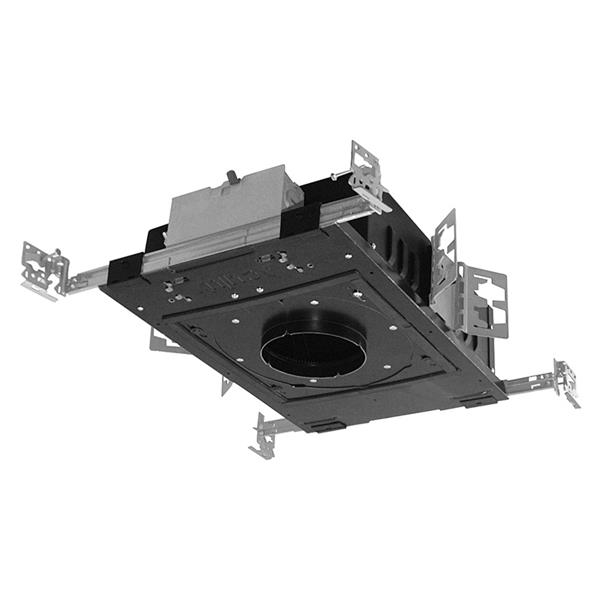

Aculux® LED 3in Round New Construction Low Profile Wall Wash Housing

By Aculux

    CA Title 24/JA8  Buy America(n)
  • Overview
  • Specifications
Aculux® 3-inch Low Profile Wall Wash luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800 to 2500 delivered lumens while consuming only 7-26 watts. The luminaires are perfect for applications with limited space above the ceiling. These recessed luminaires are compatible with wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
Read More
Read Less
Size 3 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1000 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, JA8
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 7, 7.6
Voltage Rating 120, 277, MVOLT
Mounting Type Recessed
Series AX3

Read More Read Less
