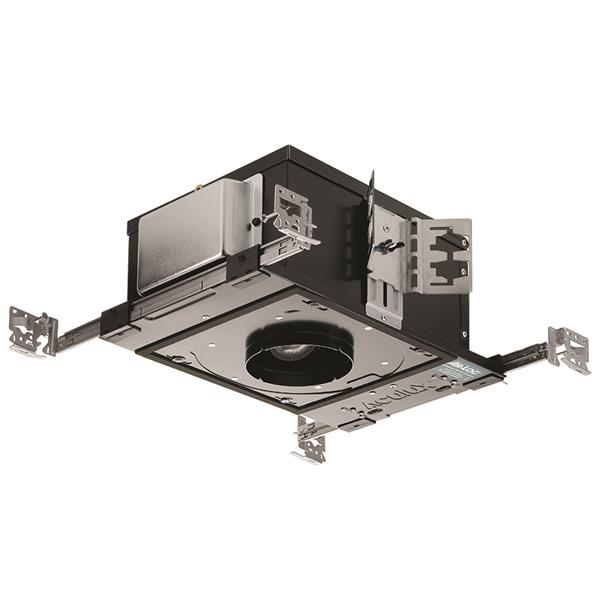

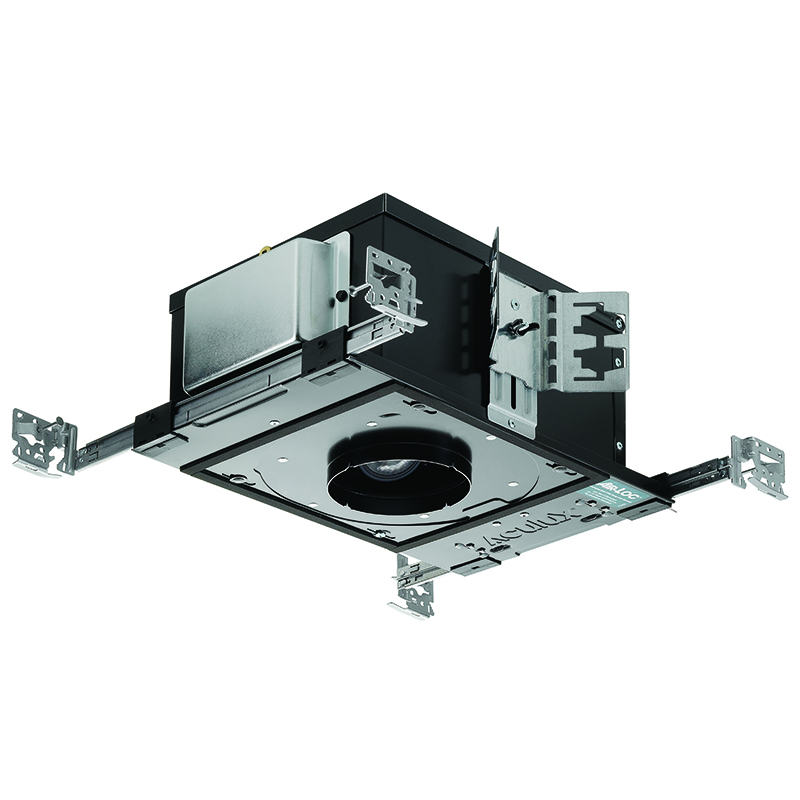

AX3 WW New Construction Wall Wash Housing

Aculux® LED 3in Round New Construction Wall Wash Housing

By Aculux

    CA Title 24/JA8  Buy America(n)
  • Overview
  • Specifications
Aculux® 3-inch LED precision luminaires are available in 6 lumen packages ranging from 800 - 3000 delivered lumens while consuming only 7-33 watts. These recessed luminaires are compatible with wall wash trims. The luminaire features field interchangeable optics in 10 distributions, capable of delivering up to 31,000 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
Read More
Read Less
Size 3 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1000 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, JA8
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 120, 277, MVOLT
Mounting Type Recessed
Series AX3

Read More Read Less

  • Suggested Replacement Products


  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET AX3 G4 3FWW.pdf AX3/3FWW - 3" LED New Construction, Lensed Wall Wash 4/15/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2886.pdf Installation Instructions - FMA3/087 and FMA3SQ/087 New Construction Flangeless Adapters View
    Installation Instructions P2908.pdf Installation Instructions - CTA3/125, CTA3/163, and CTA3/200 Ceiling Thickness Adapters View
    Installation Instructions P3647.pdf Installation Instructions - SFM3 New Construction Flangeless Adapter for Wood, Stone, Tile Ceilings View
    Installation Instructions P4482.pdf Installation Instructions - FMA3/125 & FMA3/163 New Construction Flangeless Adapters View
    Installation Instructions P4535.pdf Installation Instructions - AX3/AX3SQ Series, 3" LED New Construction 8/25/2021 View
    Installation Instructions P6160.pdf Installation Instructions - DMXR Driver View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Aculux 3-inch Precision Recessed LED Brochure_0318.pdf Aculux 3 inch Generation 4 Brochure View
