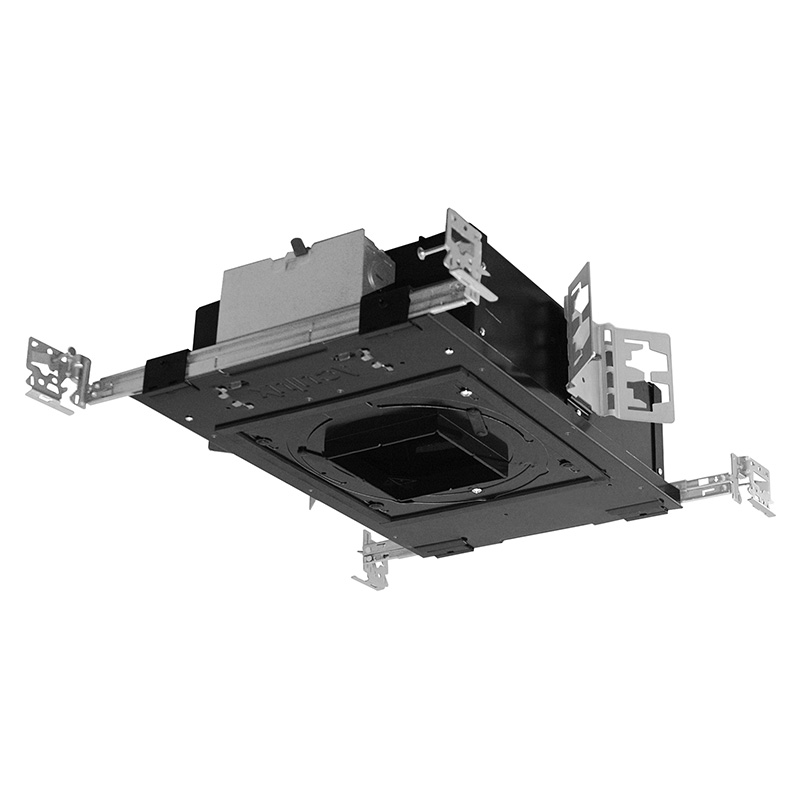

AX3SQ LPWW Low Profile Wall Wash Housing

Aculux® LED 3in Square New Construction Low Profile Wall Wash Housing

by Aculux

  • Design2Ship Program
Aculux® 3-inch Low Profile Wall Wash luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800 to 2500 delivered lumens while consuming only 7-26 watts. The luminaires are perfect for applications with limited space above the ceiling. These recessed luminaires are compatible with wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
  • Suggested Replacement Products

Need this product quickly?
See the spec sheet below or learn more about our Design2ShipTM program.

Show Me
  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Aculux
    Size 3 IN
    CRI 80, 90, 95
    Control Networkable Control
    CCT 2700 K, 3000 K, 3500 K, 4000 K
    Dimming Protocol Compatibility 0-10V, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
    Environment Indoor
    Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 7, 7.6
    Light Source LED - Static
    Regulatory Listing cUL, UL
    Compliance Listing CA Title 24, Chicago Plenum, JA8
    Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
    Product Type Housing
    Lumen Output 800 LM, 1000 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM
    Quick Ship Yes
    Series AX3SQ
    Shape Square
    Voltage Rating 120, 277, MVOLT
