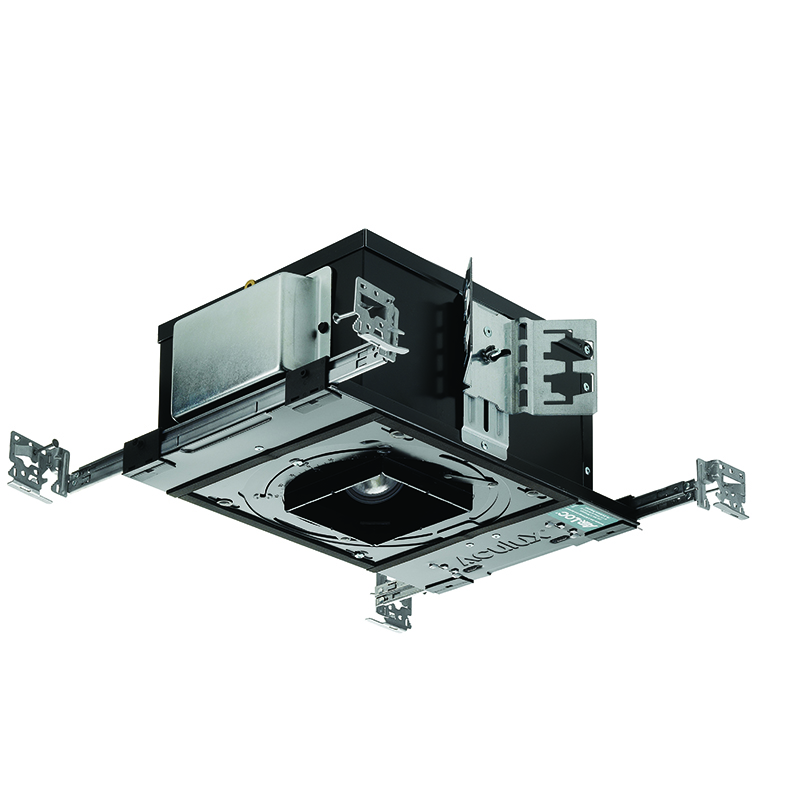

AX3SQ WW New Construction Wall Wash Housing

Aculux® LED 3in Square New Construction Wall Wash Housing

By Aculux

    WarmDimTunable WhiteCA Title 24/JA8Buy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Aculux® 3-inch LED precision luminaires are available in 6 lumen packages ranging from 800 - 3000 delivered lumens while consuming only 7-33 watts. These recessed luminaires are compatible with wall wash trims. The luminaire features field interchangeable optics in 10 distributions, capable of delivering up to 31,000 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff. These recessed precision luminaires are also available with patented WarmDim® (3000K-1800K) and Tunable White (5000K-2700K) technologies.
Read More
Read Less
Size 3 IN
Shape Square
Light Source LED - Dynamic, LED - Static
Lumens 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, Variable
CRI 80, 90, 95
Product Type Housing
Compliance Listing BAA, CA Title 24, Chicago Plenum, JA8, Low UGR
Environmental Listing Damp Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Fixture Wattage 11, 12, 13.8, 14.6, 19.7, 20.2, 25.8, 26.3, 32.9, 33.3, 7, 7.6
Voltage Rating 120, 120-277, 277
Trim Style Single Wallwash
Color Black, Clear, Wheat, White
Mounting Type Recessed
Series AX3SQ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Aculux-AX3SQ-Recessed-3in-Square-Wallwash.pdf AX3 Square Wallwash New Construction Gen 4 3/10/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P2886.pdf AX3 and AX3SQ Flangeless Adapter for Gypsum Ceiling Thickness less than .875" (FMA3/087,FMA3SQ/087) View
    Installation Instructions P2909.pdf AX3SQ 3" Square Ceiling Thickness Adapter .875" to 1.625" (CTA3/125,CTA3/163) View
    Installation Instructions P3646.pdf AX3SQ 3" Square Flangeless Adapter for Wood, Stone & Tile Ceiling Thickness .875" to 1.625" (SFM3SQ) View
    Installation Instructions P4484.pdf AX3SQ 3" Square Flangeless Adapter for Gypsum Ceiling Thickness .875" to 1.625" (FMA3SQ) View
    Installation Instructions P4535.pdf AX3 and AX3SQ 3" New Construction Housing 2/9/2023 View
    Installation Instructions P6160.pdf AX3 and AX3SQ 3" DMX512/RDM Field Installation View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Aculux 3-inch Precision Recessed LED Brochure_0318.pdf Aculux 3 inch Generation 4 Brochure View
    Brochures ACX_AX3 & AX4 WD TW Brochure__WEB.pdf Aculux AX3 & AX4 WarmDim® and Tunable White Brochure 6/1/2023 View
