AX3SQ LPD Low Profile Housing

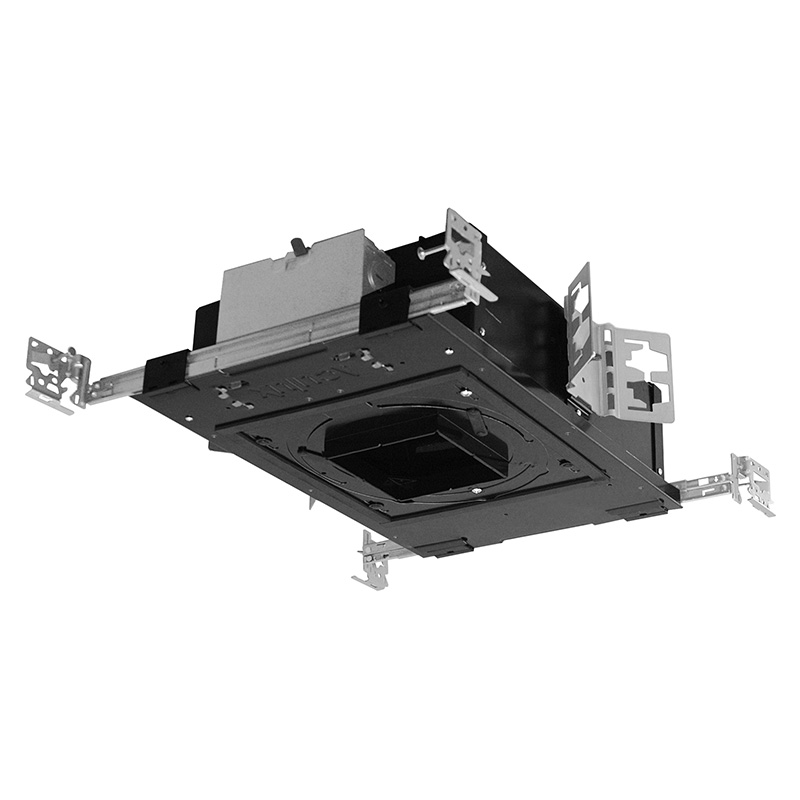

Aculux® LED 3in Square New Construction Low Profile Downlight Housing

by Aculux

  • ENERGY STAR®
  • Design2Ship Program
Aculux® 3" Low Profile downlight luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800 to 2500 delivered lumens while consuming only 7-26 watts. These luminaires are perfect for applications with limited space above the ceiling. The downlight luminaires are compatible with downlighting and wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 28,500 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & BIM

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: your request will be routed to the BIM Design team. If escalation/questions is needed please email BIM@acuitybrands.com.
  • Specifications

    Size 3 IN
    Brand Aculux
    Color Rendering Index 80|90|95
    Control Networkable Control
    Correlated Color Temperature 2700 K|3000 K|3500 K|4000 K
    Environment Indoor|Outdoor
    Light Source LED - Static
    Regulatory Listing cUL|UL
    Lumen Output 800 LM|1200 LM|1500 LM|2000 LM|2500 LM
    Maximum Wattage 26
    Product Type Housing
    Quick Ship Yes
    Series AX3SQ
    Shape Square
    Voltage Rating 120|277|MVOLT
