Low Profile LED Can

AX3 LPD Low Profile housing

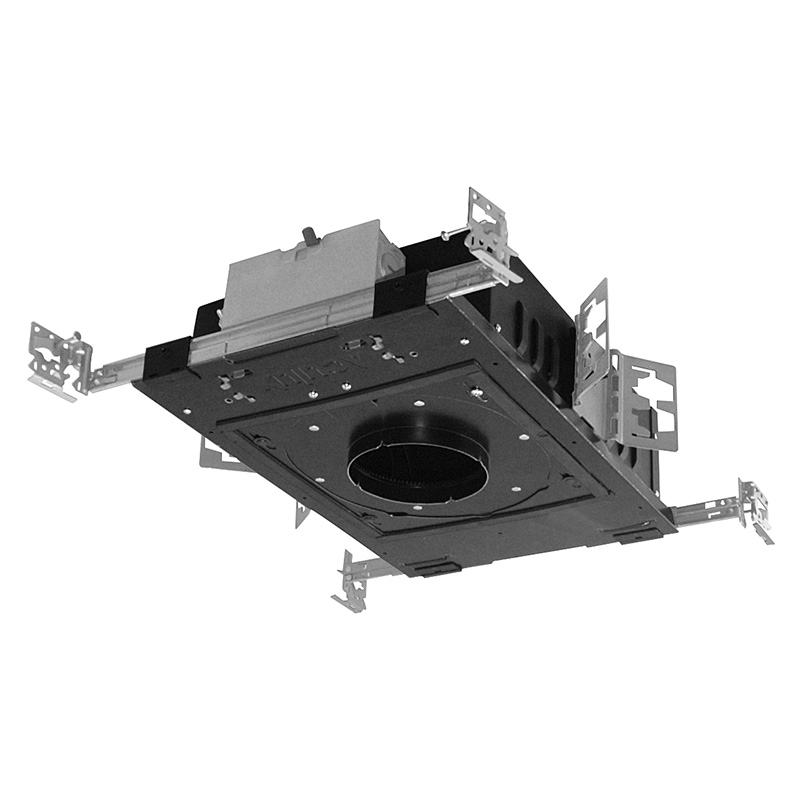

Aculux® LED 3in Round New Construction Low Profile Downlight Housing

by Aculux

  • ENERGY STAR®
  • Design2Ship Program
Aculux® 3" Low Profile downligting luminaire is less than 4 inches tall and is available in five lumen packages ranging from 800 to 2500 delivered lumens while consuming 7-26 watts. These luminaires are perfect for applications with limited space above the ceiling. The downlight luminaires are compatible with downlighting and wall wash trims. They feature field interchangeable optics in 10 distributions, capable of delivering up to 25,800 CBCP. The deep source regression provides excellent shielding with 45 degree visual cutoff.
  • Suggested Replacement Products

Need this product quickly?
See the spec sheet below or learn more about our Design2ShipTM program.

Show Me
  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand Aculux
    Size 3 IN
    Color Rendering Index 80, 90, 95
    Control Networkable Control
    Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K
    Dimming Protocol Compatibility 0-10V, DALI, DMX, Forward Phase, Forward Phase 2W, Forward Phase 3W, Reverse Phase
    Environment Indoor
    Light Source LED - Static
    Regulatory Listing cUL, UL
    Compliance Listing CA Title 24, Chicago Plenum, ENERGY STAR®, JA8
    Product Type Housing
    Lumen Output 800 LM, 1200 LM, 1500 LM, 2000 LM, 2500 LM
    Quick Ship Yes
    Series AX3
    Shape Round
    Voltage Rating 120, 277, MVOLT
