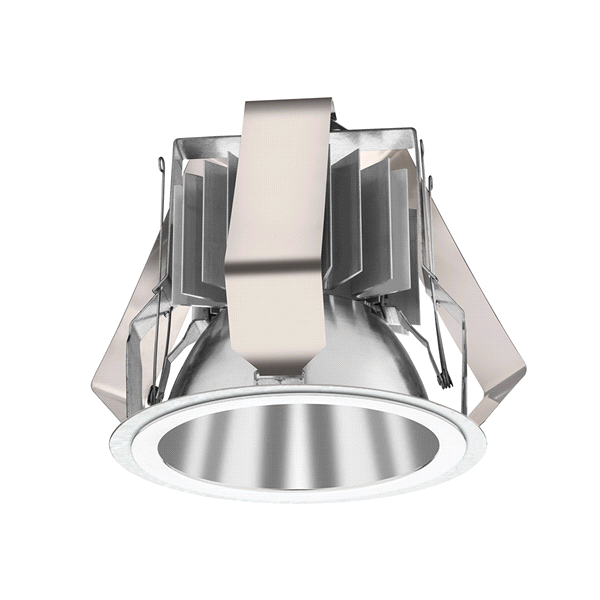

LDN6RV Retrofit Kit

LDN6RV Commercial Retrofit Downlights

The Lithonia LDNRV universal retrofit downlight has the fastest installation time, is the broadest aperture offering, and most powerful retrofit on the market.
• Typical installation time is 3-4 minutes
• Aperture sizes allow for retrofitting from 4”, 5”, 6”, 7”, 8”, 9”, and 10” downlights
• Delivered lumens from 500lm up to 12,000lm
• 55deg cutoff and XXLPW yield a highly efficacious, glare-free experience
• 1.0 Spacing/Mounting Height ratio provides general illumination performance
• Open wallwash kicker design provides a complimentary asymmetric washlight distribution
• eldoLED dimming drivers available in 10% or 1% minimum dimming levels
• Available with nLight® AIR capability for wireless control and connectivity

Specifications
Product overview and specifications
Aperture Size 6 IN
Brand Name Lithonia Lighting
Color Black, Clear, White
Color Rendering Index 80
Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K
Finish Diffuse, Gloss, Semi-Specular, Specular
Light Source LED
Listings UL Wet Location
Lumen Output 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 500 LM
Mounting Type Recessed
Product Type Downlight
Series LDN6RV
Shape Round
Trim Style Open, Open Wallwash
Voltage Rating 120, 120-277, 277, MVOLT
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
LDNRV_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
CJ5201057-LDN4RV-LDN7RV-INSTALLATION-INSTRUCTIONS_PDF View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Title View
LDN-Ceiling-Height-Flyer_pdf View
LDNRV-Sell-Sheet_pdf View
