nPOD KEY

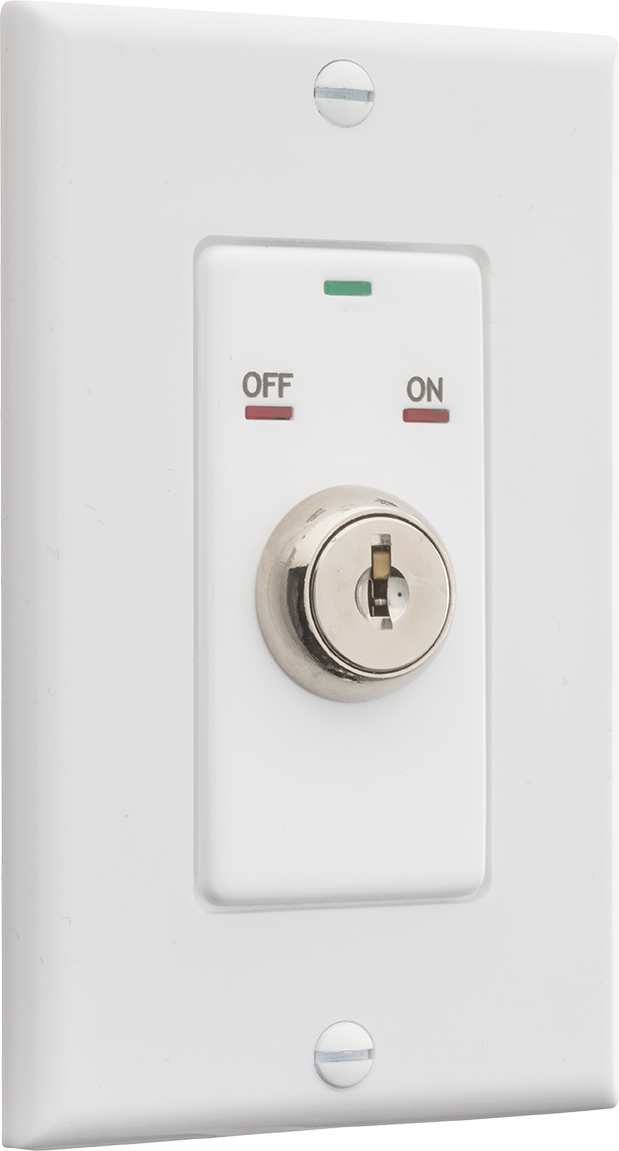

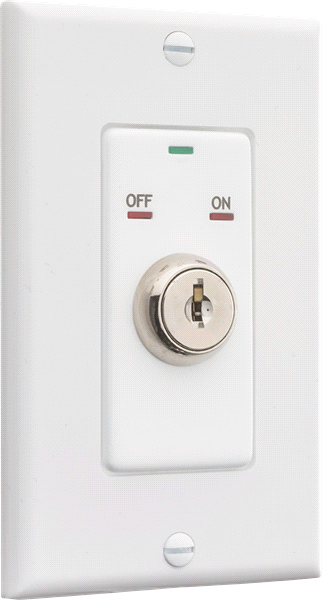

nPOD KEY Digital Key Switch

The nLight digital key switch is a 100% digital switch that relies on a key to access lighting controls and may be programmed to control any nLight enabled fixture, relay pack, or panel. Connected to any nLight network via CAT5e cables with RJ45 connectors, digital key switches can be mounted in any standard 2.25” deep switch box with a decorator style switch plate. This makes the switch ideal for schools, gymnasiums, site-lighting and high-security applications.

Communicates with nLight network Remotely configurable/upgradeable Key action: Return-to-center for momentary version. Optional maintain position version. Switch broadcasts on channel 1 for out-of-the-box functionality: Momentary Version: Provides On/Off/Raise/Lower Functionality Maintain Version: Provides On/Off Functionality Capable of being programmed with scenes (via SensorView) Pilot LED to indicate status of controlled loads or scenes (ON or OFF) Unit includes 2 mating keys and decora plate

Specifications
Product overview and specifications
A+ Capable Yes
Application Type Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Religious, Retail, Sports and Recreation, Warehouses
Brand Name nLight
Color Almond, Ivory, White
Control Networkable Control
Environment Indoor
Finish Gloss
Mounting Type Wall
Product Type Wallstation
Series NPOD
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
nPOD-KEY_pdf View
Technical Files
Installation documents, building information models, etc.
File Type Document Title View
npodkey_dwg View
npodkey-riser_dwg View
File Type Document Title View
NPOD-Key-Installation-Instructions_pdf View
Resources
Download brochures, sell sheets, photometry files and other sales tools.
File Type Document Title View
NL_6082_nPOD-KEY-switch-Sell-Sheet_0217-002_pdf View
