DCS30 Recessed Multiple

LED Single or Multi-Lamp Designer Cove™ Recessed Multiple

By Indy

    Energy Star®  Buy America(n)
  • Overview
  • Specifications

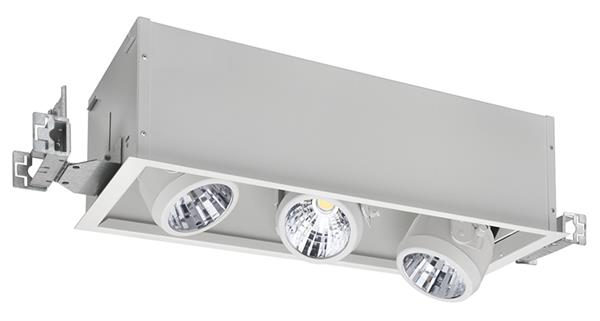

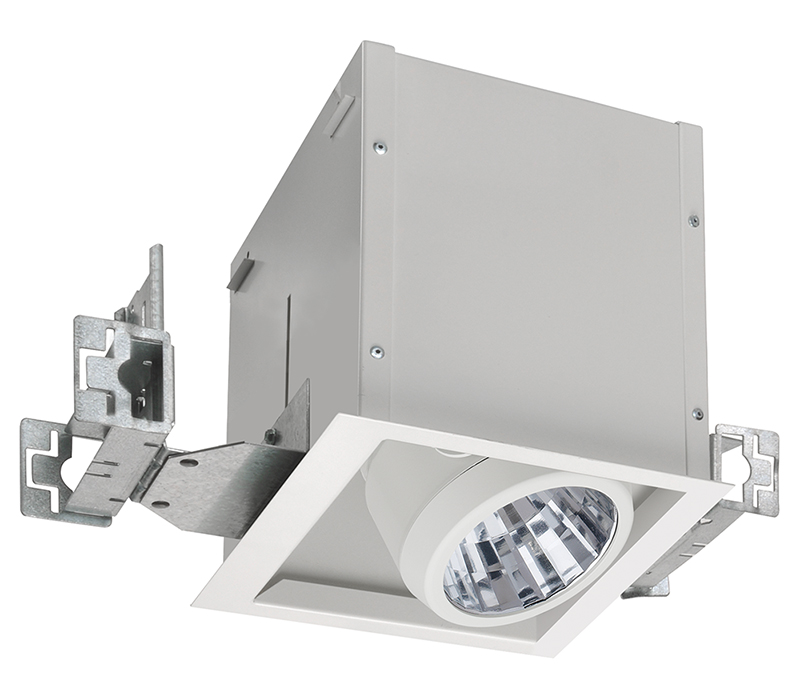

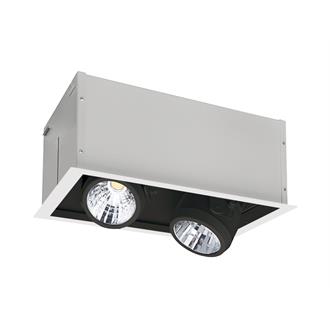

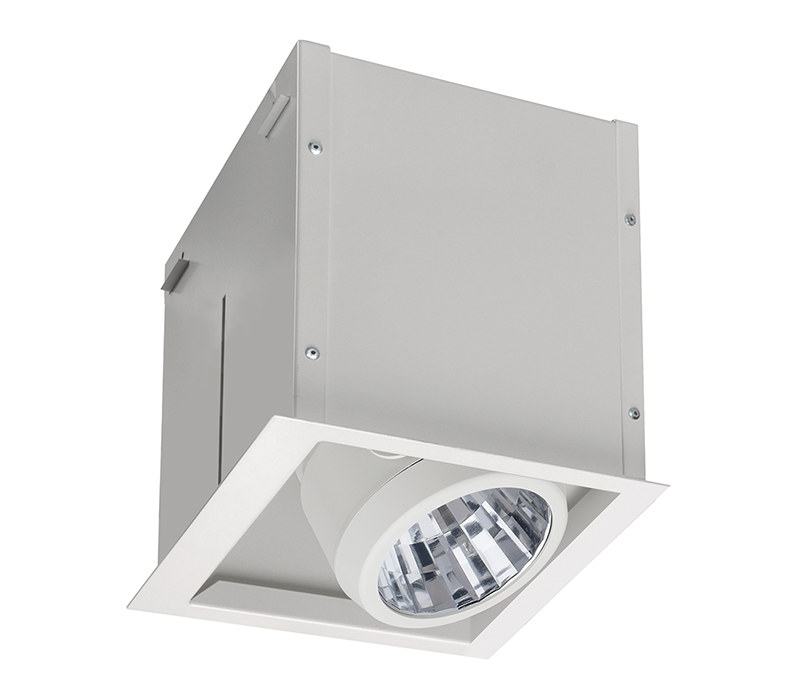

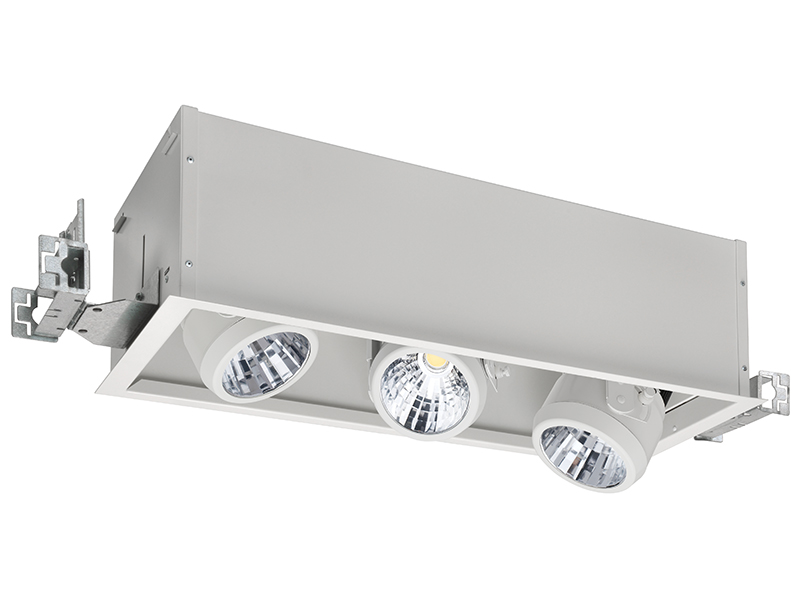

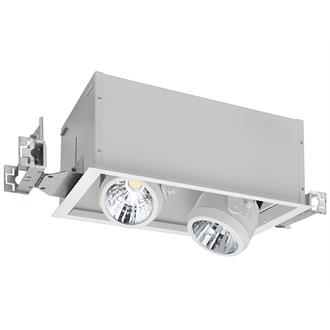

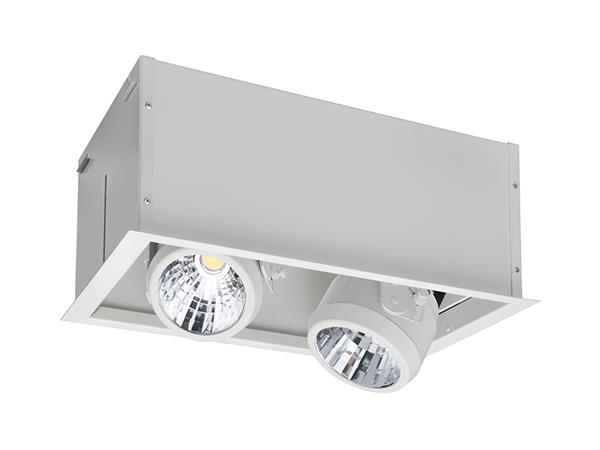

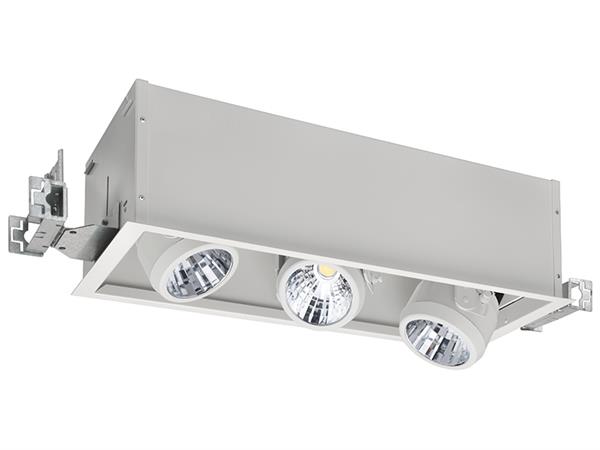

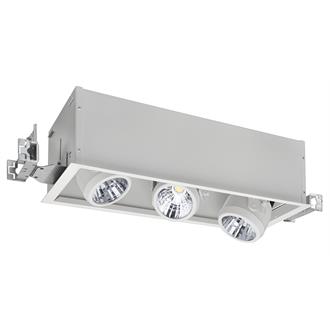

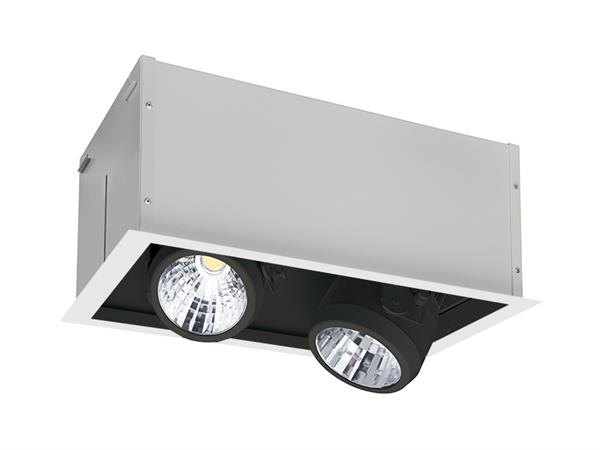

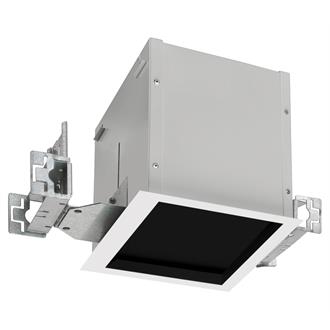

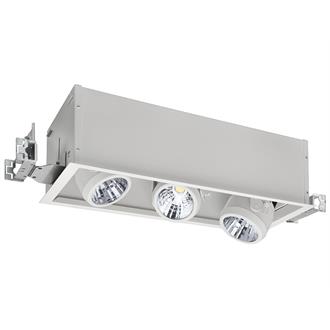

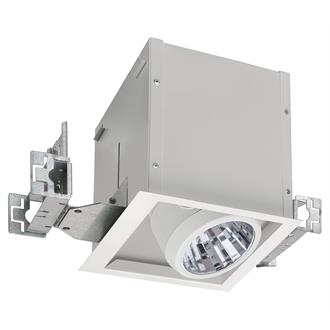

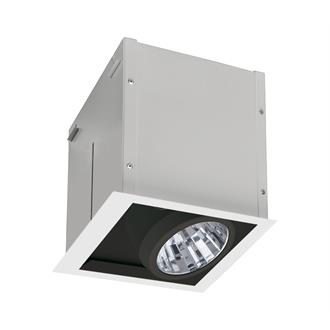

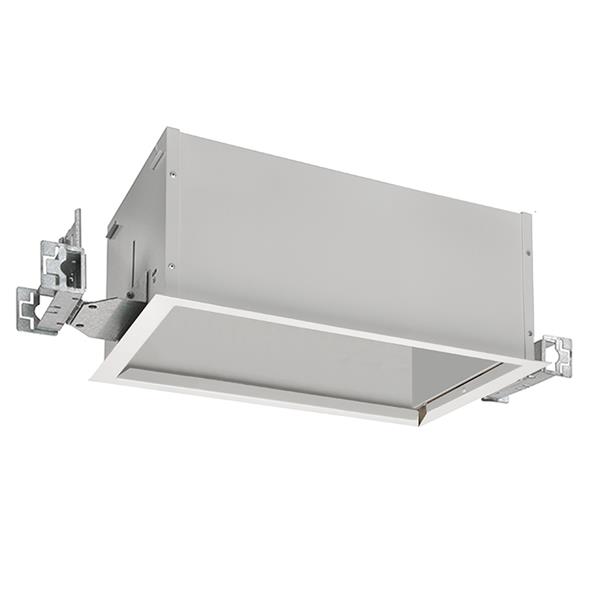

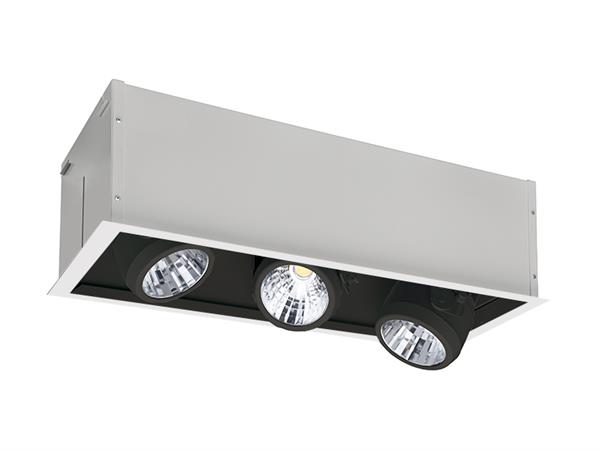

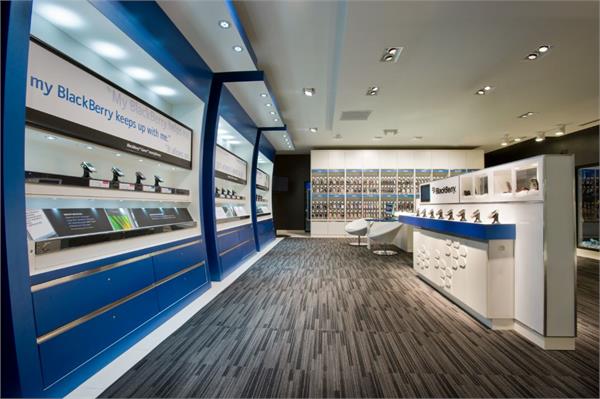

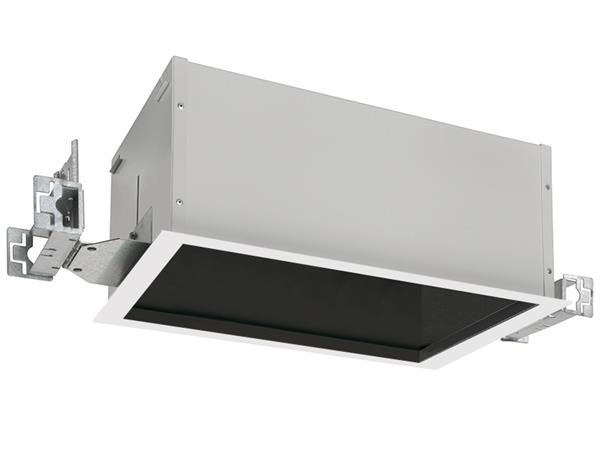

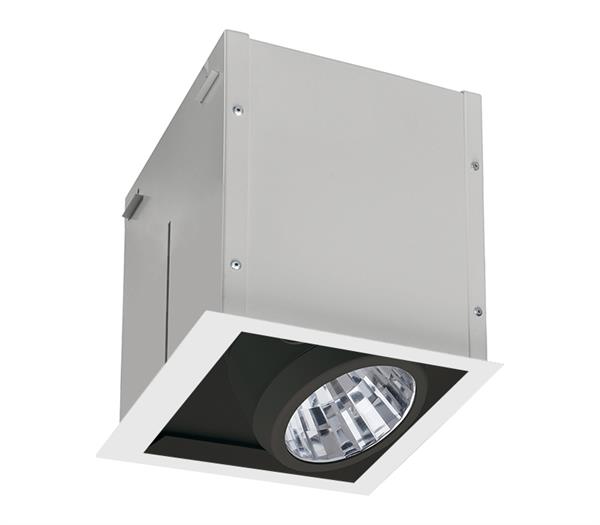

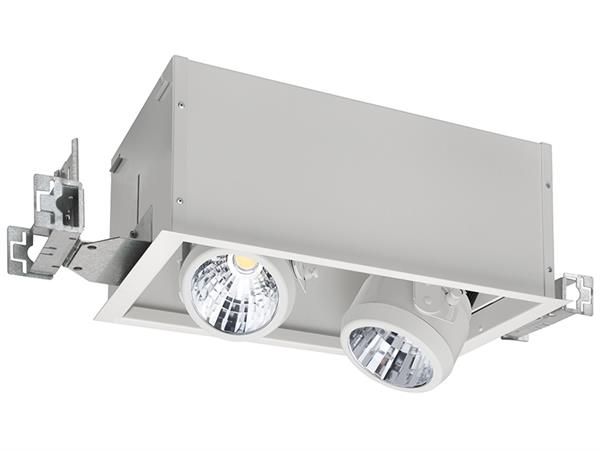

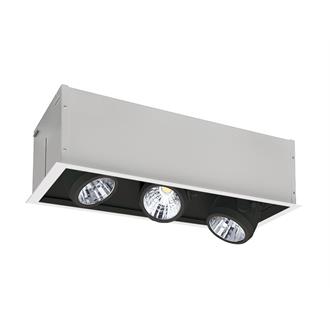

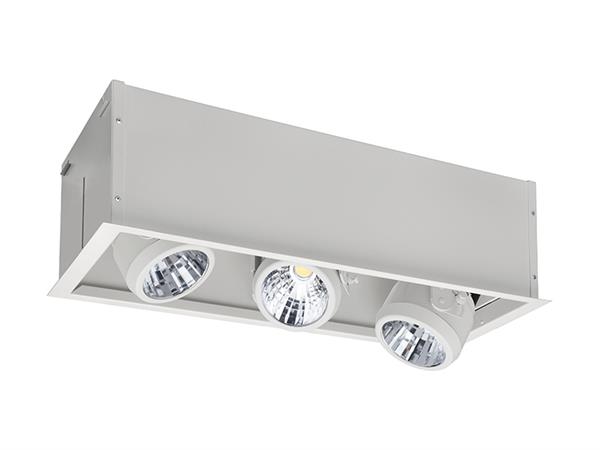

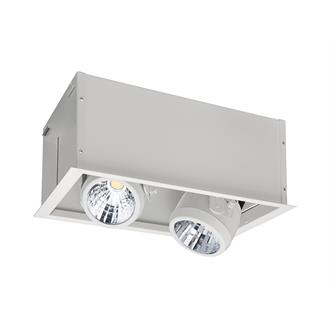

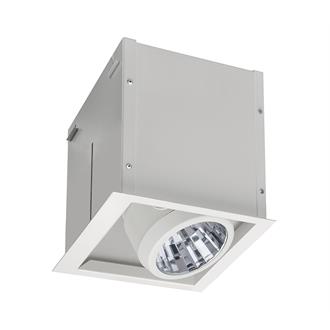

Indy™ Designer Cove™ multi-lamp LED fixtures offer exceptional energy & operational efficiencies. They feature 1, 2, or 3 LED luminaires, each producing 1000 lumens, approximating the output of 75W PAR30 halogen while using about 80-percent less energy. The 2000 & 3000 lumen version approximates the output of 39W PAR30 and 70WT4 metal halide, also using significantly less energy. And with a service life of 50,000 hours, LEDs can provide 10 or more years of maintenance free operation in typical retail installations. These open aperture fixtures are available in attractive flange trim or trimless designs.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 1000 LM, 2000 LM, 3000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 97
Product Type Housing
Compliance Listing BAA, Chicago Plenum, ENERGY STAR®, ROHS
Environmental Listing Damp Location, Dry Location, Non-IC
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI
Fixture Wattage 100, 101, 103, 107, 12.6, 12.8, 12.9, 13.6, 13.9, 14.9, 15, 23.3, 23.6, 23.7, 24, 24.1, 24.2, 24.6, 25, 25.1, 25.3, 25.7, 25.8, 26.2, 27.7, 27.9, 33.7, 33.9, 34.4, 34.6, 34.8, 35.2, 35.8, 36.5, 36.7, 37, 37.8, 40.6, 40.9, 46, 46.2, 46.4, 47.5, 48, 48.1, 48.3, 48.6, 50, 65, 67, 68, 69, 70, 71, 72, 75, 97, 99
Voltage Rating 120, 277, 347
Color Black, White
Mounting Type Recessed, Semi-recessed
Series DCS30

Read More Read Less

  • Suggested Replacement Products

Product Information

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Confidential Documents

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.DocumentStatusText}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Product Specific SKUs

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information

    •  Contact Us (Lighting)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim


Compatible Products

  • Accessories
Close Quick View Modal
sr

CGF Filter Accessory

Colored Glass Filter Accessory

Close Quick View Modal
sr

CCLBL Louver

Black Cube Cell Louver

Close Quick View Modal
sr

HB28 Bar Hanger

28in C-Channel Bar Hanger

Close Quick View Modal
sr

HB52 Bar Hanger

52in C-Channel Bar Hanger

Close Quick View Modal
sr

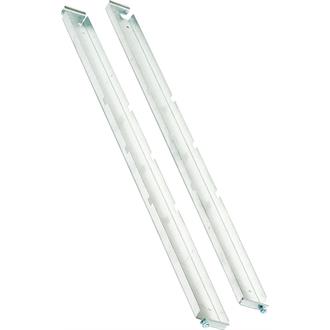

HBTL Bar Hanger
