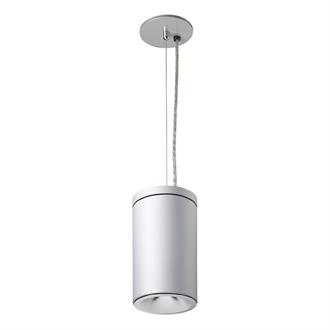

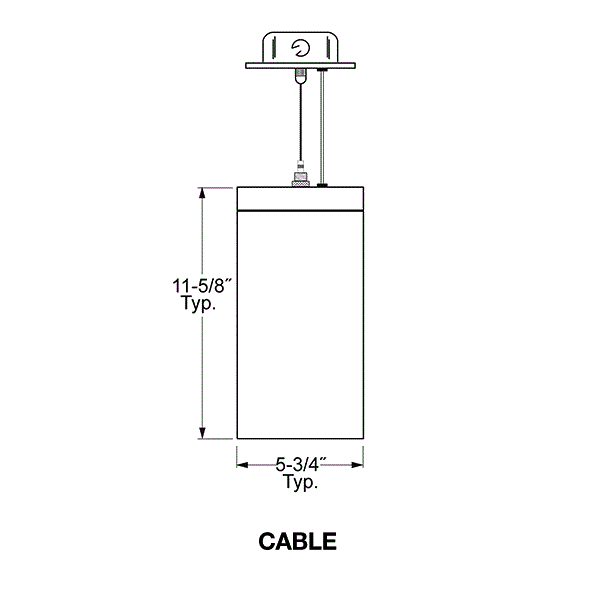

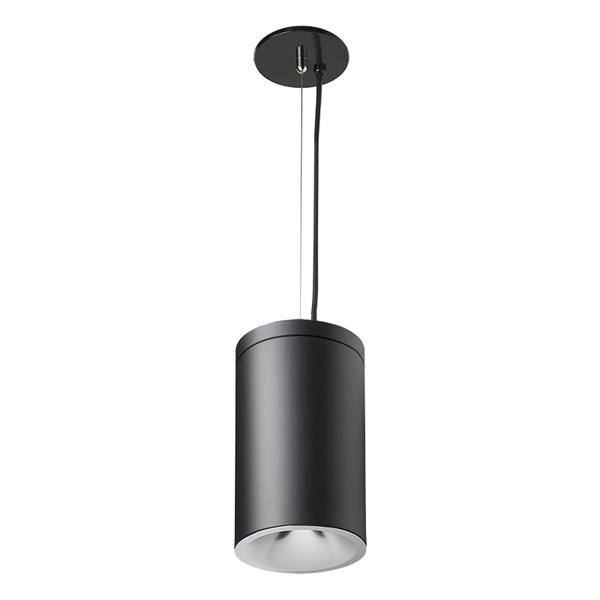

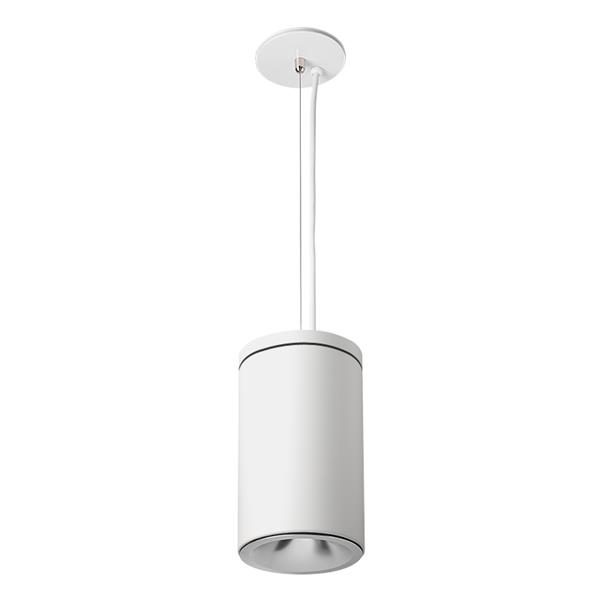

LC4C Cylinder

LED 4in Round Cylinder Cable Mount L-Series

By Indy

    Energy Star®  Buy America(n)
  • Overview
  • Specifications
Indy™ 4-inch L-Series LED Cylinders are part of the latest generation of Indy™ L-Series luminaires, offering a fully coordinated family of commercial grade quality luminaires, from LED color rendering to aperture sizes and trim finishes. These cylinders can be surface, cable, pendant, or wall-mounted.  They are the energy efficient choice for a wide range of commercial applications.
Read More
Read Less
Size 4 IN
Shape Cylinder
Light Source LED - Static
Lumens 800 LM, 1300 LM, 1500 LM, 1700 LM, 2300 LM, 2800 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90, 97
Product Type Cylinder
Compliance Listing BAA, ENERGY STAR®, ROHS
Environmental Listing Damp Location
Regulatory Listing cUL, UL
Dimming Protocol 0-10V, DALI, Forward Phase, Forward Phase 2W, Reverse Phase
Fixture Wattage 10.1, 10.3, 10.6, 10.7, 10.9, 11, 11.1, 11.2, 11.4, 11.7, 11.8, 11.9, 12, 12.1, 12.3, 12.5, 12.7, 12.8, 12.9, 13, 13.1, 13.3, 13.4, 13.6, 13.7, 13.8, 13.9, 14, 14.1, 14.4, 14.5, 14.7, 15, 15.2, 15.3, 15.4, 15.5, 15.6, 15.7, 15.8, 15.9, 16, 16.1, 16.2, 16.3, 16.5, 16.6, 16.8, 16.9, 17, 17.1, 17.2, 17.3, 17.4, 17.6, 17.8, 17.9, 18, 18.1, 18.2, 18.5, 18.7, 18.8, 18.9, 19, 19.1, 19.2, 19.3, 19.4, 19.5, 19.6, 19.9, 20.1, 20.4, 20.5, 20.8, 21, 21.1, 21.3, 21.4, 21.5, 21.6, 21.7, 21.8, 22, 22.2, 22.4, 22.6, 23.1, 23.5, 23.7, 23.9, 24, 24.5, 24.6, 25, 25.2, 25.4, 25.5, 25.7, 25.8, 25.9, 26, 26.2, 26.3, 26.5, 26.6, 26.8, 26.9, 27, 27.2, 27.5, 28.2, 28.5, 28.9, 29, 29.1, 29.3, 29.5, 29.6, 29.7, 29.8, 30, 30.1, 30.2, 30.3, 30.4, 31, 31.5, 31.7, 32, 32.4, 6.02, 6.61, 6.63, 7.12, 7.19, 7.43, 7.53, 7.6, 7.64, 7.73, 7.74, 7.87, 8, 8.12, 8.2, 8.37, 8.42, 9.18, 9.38, 9.43, 9.52, 9.53, 9.64, 9.87, 9.93
Voltage Rating 120, 120-277, 277, 347
Color Black, Silver, White
Mounting Type Pendant, Surface
Series LC4C
